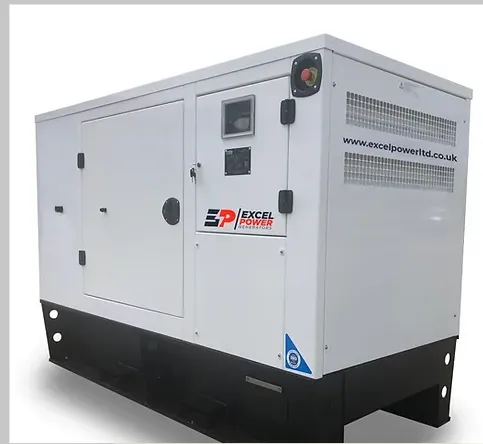

27.9KVA Prime Power / N/A KVA Maximum Power Single Phase
- High quality UK made Perkins Engine (1103A-33G)
- High quality Stamford Alternator ( S1L2-N1)
- Standby Amps 126
- Deep Sea Electronics 7120 MK2 controller.
MAIN FEATURES:
- Frequency Hz 50
- Voltage V 230
- Power factor cos ϕ 0.8
- Single Phase
POWER RATING:
- Prime power PRP kVA 27.7
- Maximum Power ESP kVA N/A
ENGINE SPECIFICATIONS:
- Engine manufacturer Perkins
- Model 1103A-33G
- Number of cylinders 3 vertical in-line
- Displacement 3.3 litres
- Aspiration Naturally aspirated
- Cycle 4 stroke
- Governor Type/Class Mechanical
- Combustion system Indirect injection
- Compression ratio 19.25:1
- Rotation Anti-clockwise, viewed on flywheel
- Total lubricating capacity 8.3 litres
- Cooling system Water cooled
- Total coolant capacity 10.2 litres
ALTERNATOR SPECIFICATIONS:
- Alternator Stamford
- Model S1L2-N1
- Insulation System CLASS H
- Protection IP23
- Stator Winding Double Layer Concentric
- Winding Pitch Two Thirds
- Winding Leads 12
DIMENSIONAL DATA:
- Length (L) mm 2298
- Width (W) mm 1104
- Height (H) mm 1600
- Weight Kg 914
- Fuel tank capacity L 260
FUEL CONSUMPTION:
- Fuel consumption @ 75% l/h 5.4
- Fuel consumption @ 100% l/h 7.1
- Fuel consumption @ 110% l/h 7.9
NOISE LEVEL:
- Noise pressure level @ 7 m dB(A) 68.4 - 70.4
