Brand: SFX

Color: Multicolor

Features:

• [Easy Operation]Win7 Operating System;X,Y,Z 3-axis to Drill 0.3-3mm Burr-free Hole
• [High Speed]X,Y ≤0.03mm/300mm.Dia. & Depth Ratio 1:300

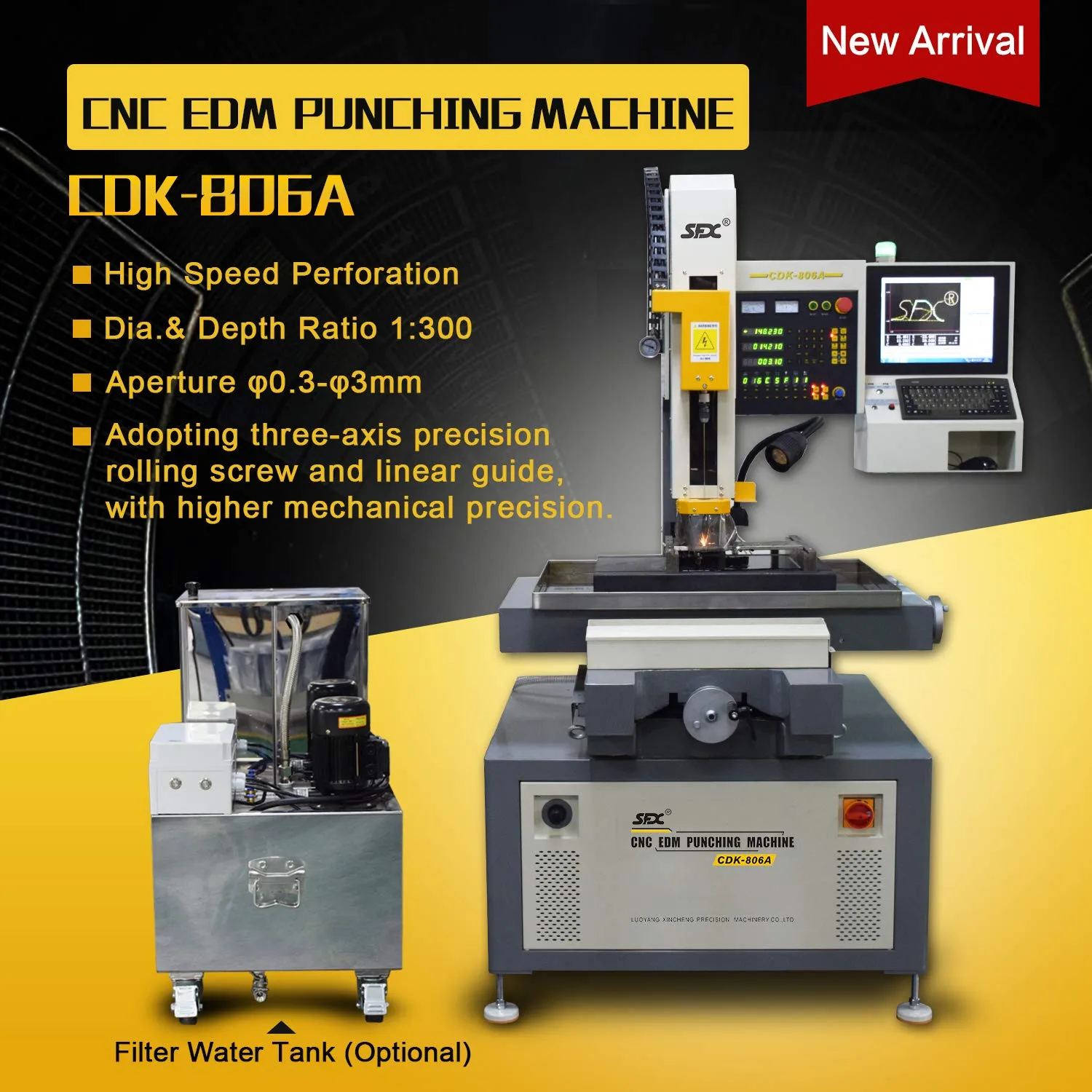

• [Accuracy]Adopting three-axis precisionrolling screw and linear guide,with higher mechanical precision.
• [PC Display]Touch Function. Digital High Frequency Power Supply,
• [High Efficiency]Low Consumption, Stability With Power-Down Memory Function.Erosion Speed: 30-60mm/min; Spindle Adjustment Speed: 1500mm/min; X,Y Moving Speed: 1000mm/min

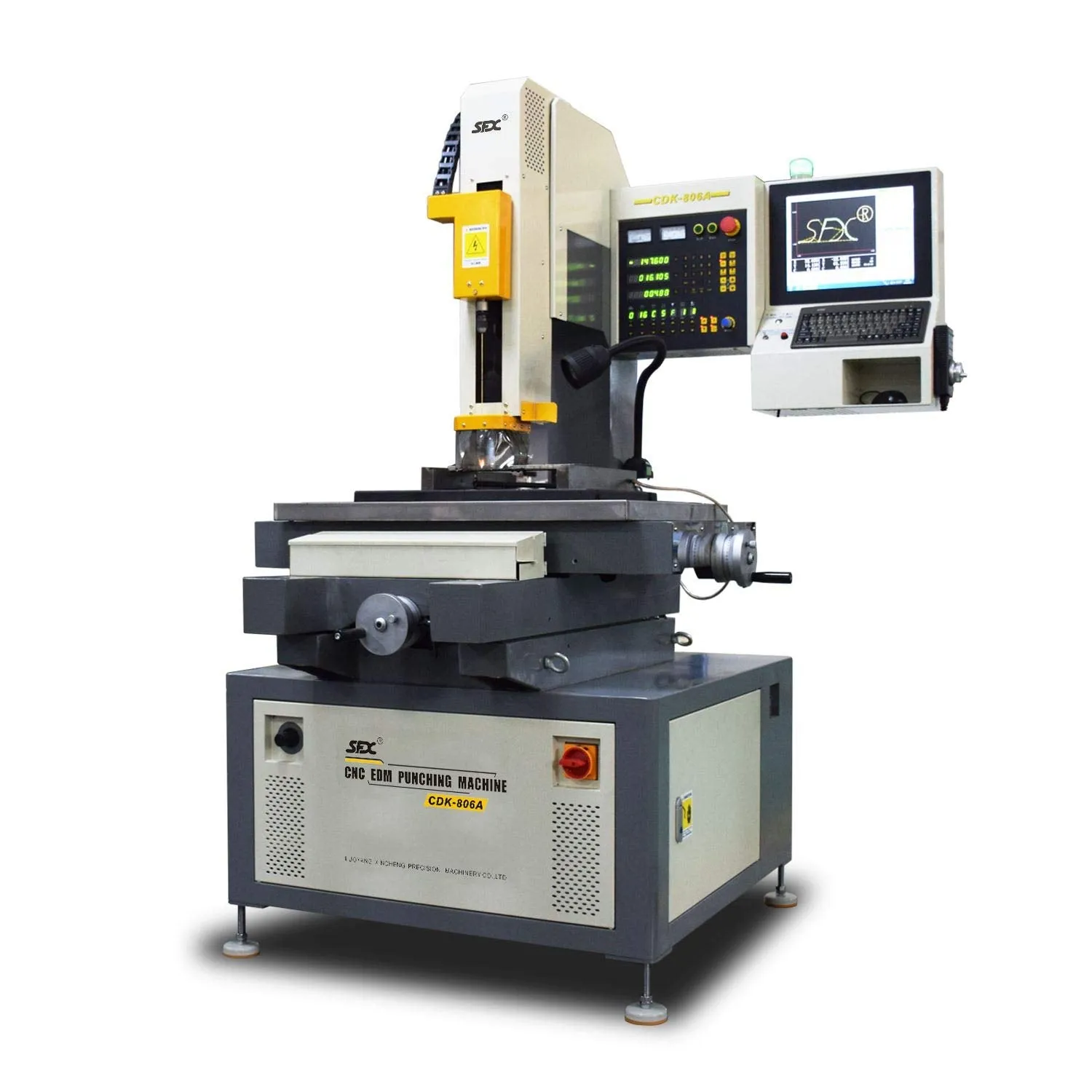

model number: CDK 806A

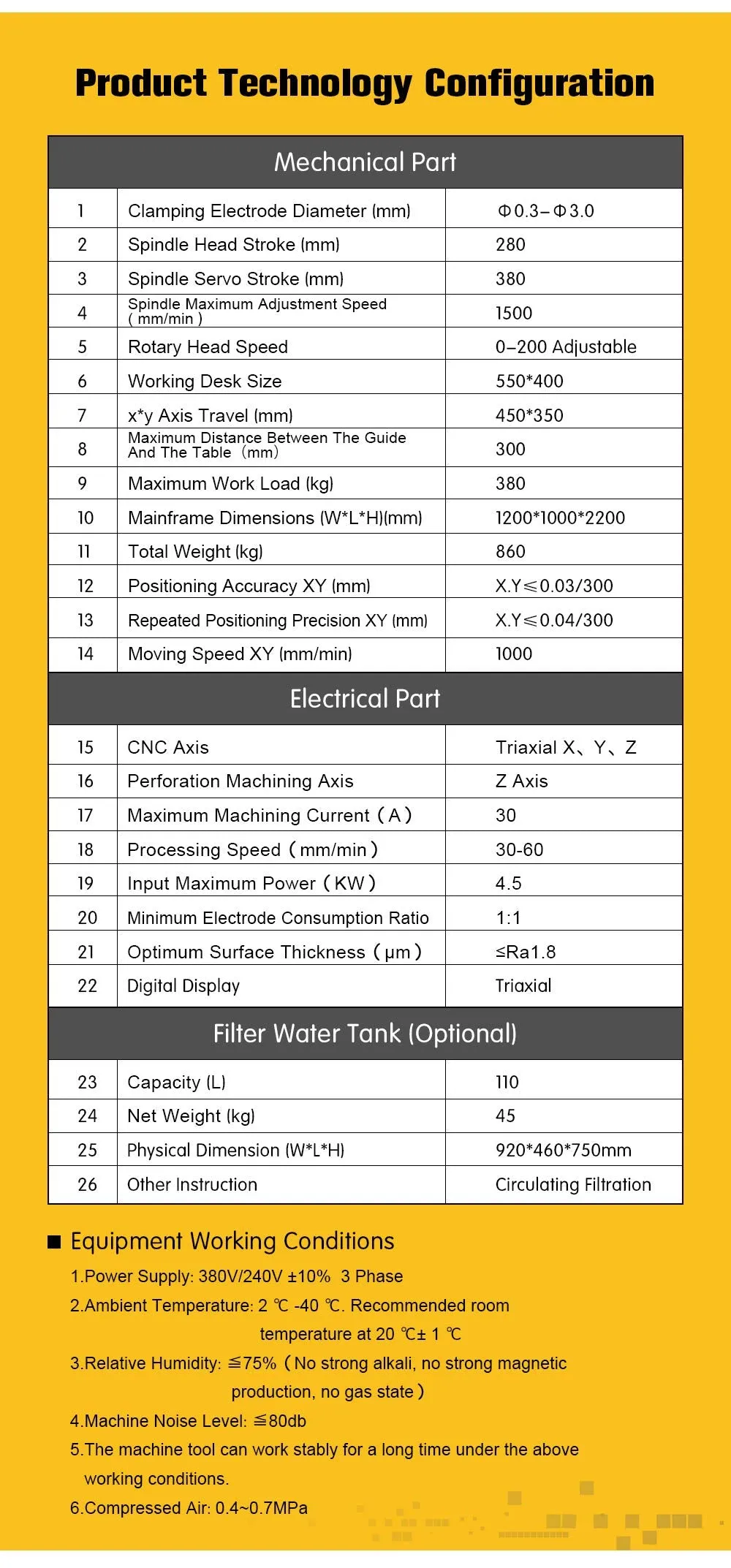

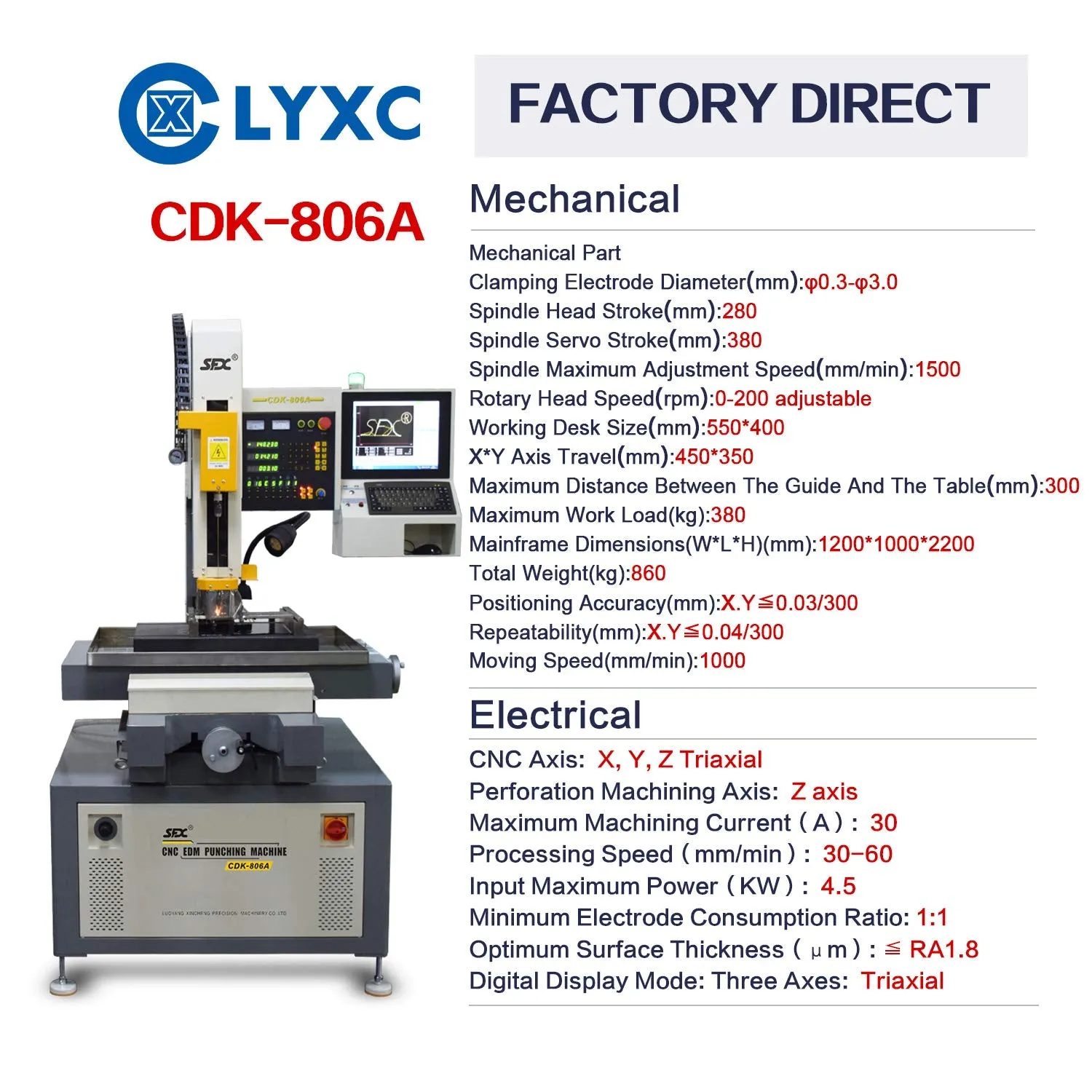

Details: Сlаmріng Еlесtrоdе Dіа.(mm):0.З-З.0 Spindle Head Stroke(mm):280 Spindle Servo Stroke(mm):380 Spindle Maximum Adjustment Speed(mm/min):1500 Rotary Head Speed(rpm):0-200 adjustable Working Desk Size(mm):550*400 X*Y Axis Travel(mm):450*350 Max. Distance Between The Guide And The Table(mm):300 Max. Work Load(kg):380 Total Weight(kg):860 Positioning Accuracy(mm):X.Y≤ 0.3/300 Repeatability(mm):X.Y ≤ 0.4/300 Moving Speed(mm/min):1000 CNC Axis:X,Y,Z 3-axis Perforation Machining Axis:Z Axis Max. Machining Current (A):30 Processing Speed (mm/min):30-60 Input Max. Power (KW):4.5 Optimum Surface Thickness: (um) ≤Ra1.8

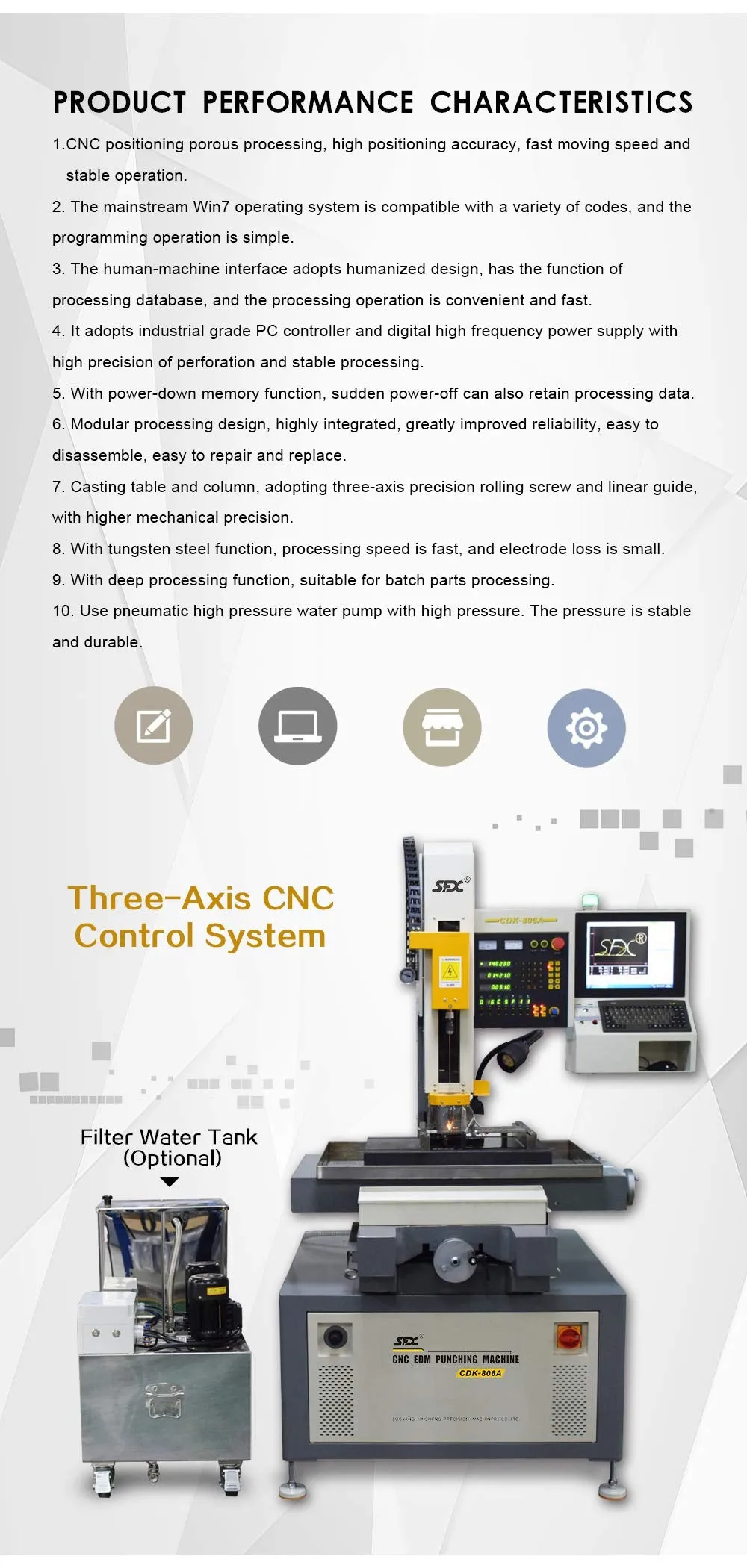

PRODUCT PERFORMANCE CHARACTERISTICS

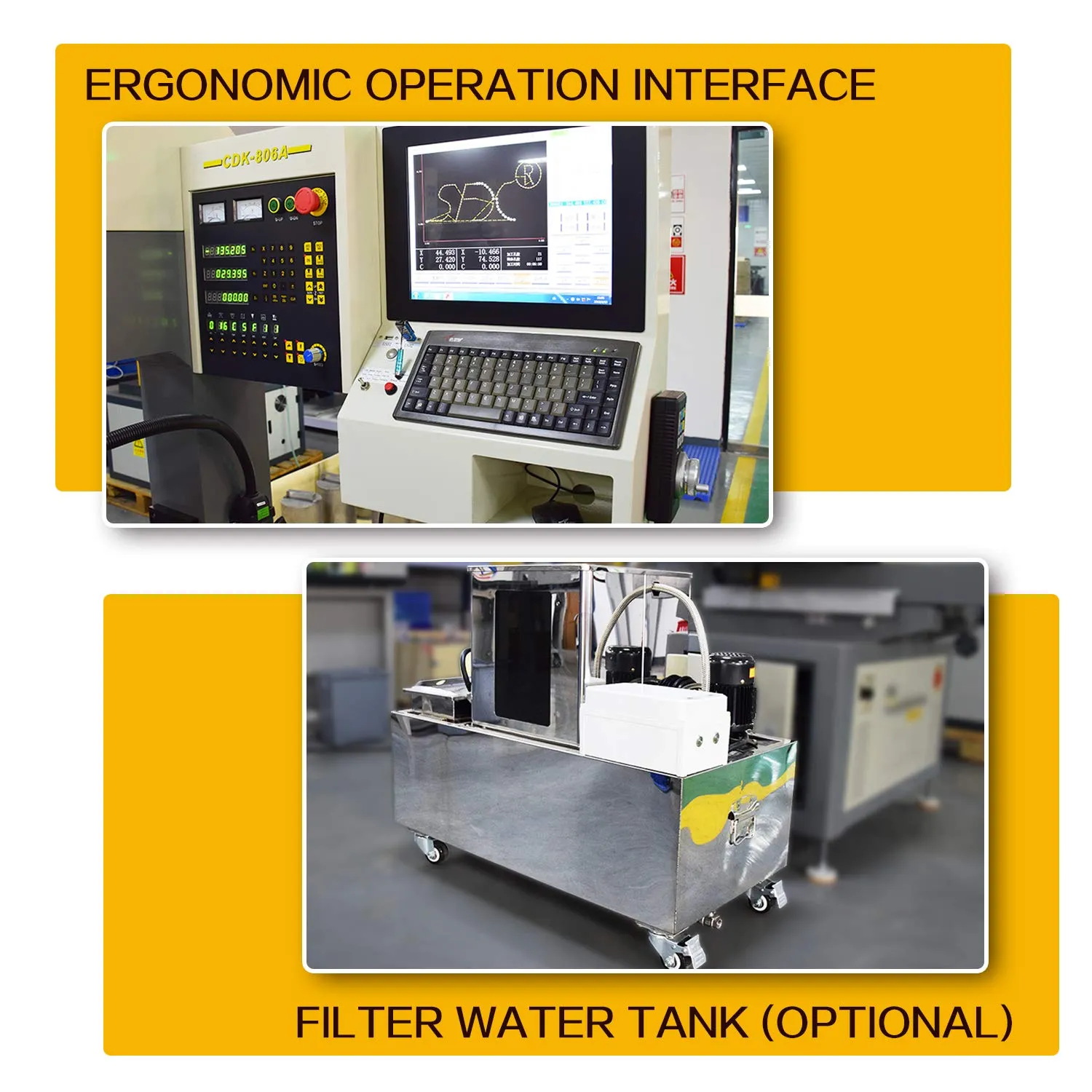

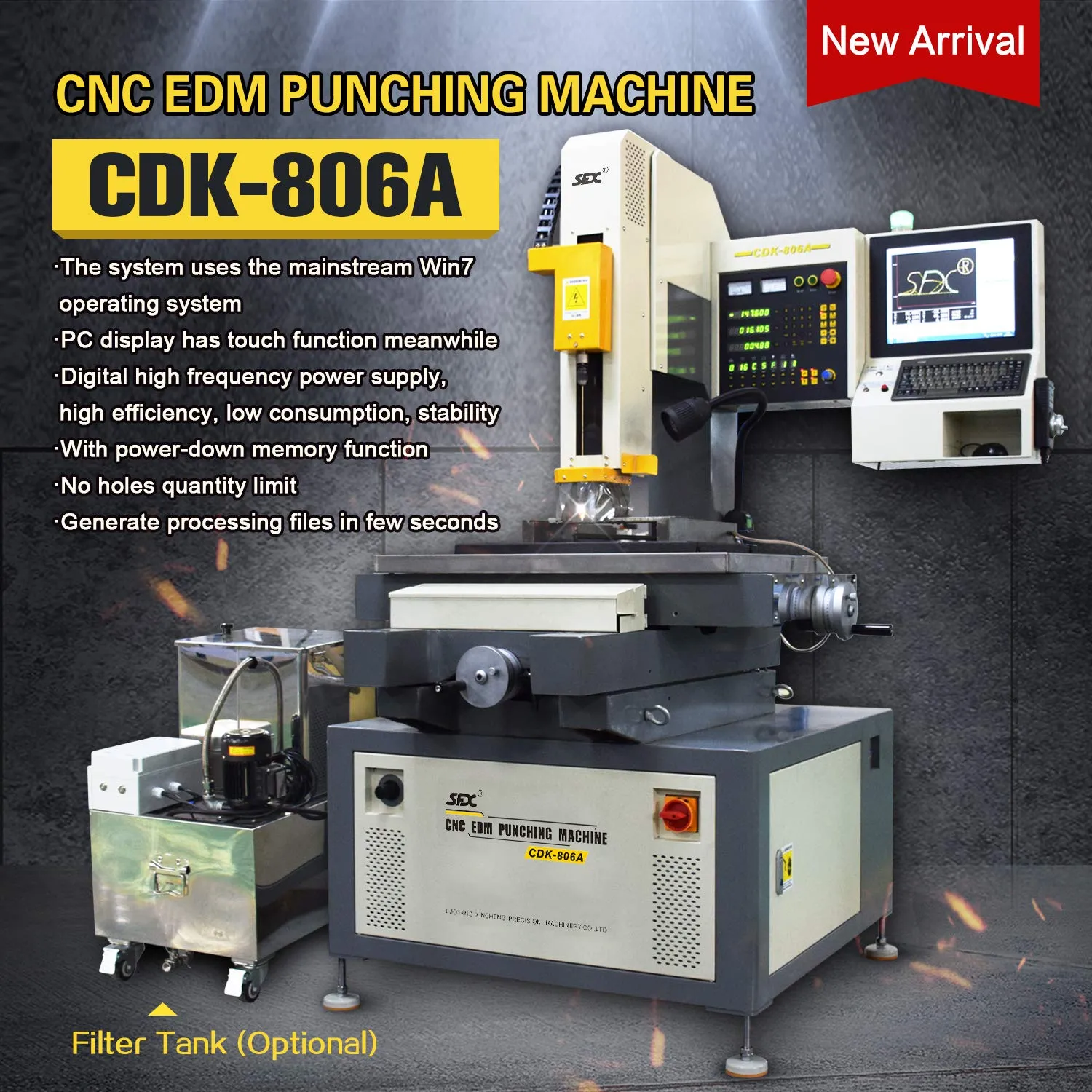

CNC positioning porous processing, high positioning accuracy, fast moving speed and stable operation. The mainstream Win7 operating system is compatible with a variety of codes. The human-machine interface adopts humanized design, has the function of processing database. It adopts industrial grade PC controller and digital high frequency power supply with high precision of perforation and stable processing. X,Y,Z three-axis precision ball screw, linear guide. Z-axis has a depth setting function and simple operation, X,Y,Z three-axis digital display. The X and Y axes are automatically locked after positioning, and can be unlocked manually.
Working Conditions Power supply: 3-phase 380V/240V±10%, 50Hz/60Hz±10% Ambient temperature: 2℃-40℃；Recommended room temperature at 20℃±1℃ Relative humidity: ≦75% (no strong alkali, no strong magnetic field, no gas) Machine noise level: ≤80db
