Lightweight 6061
Alloy Frame
Shimano 7-Speed
Drivetrain
Cable-Actuated
Disc Brakes
SR Suntour
NVX Fork

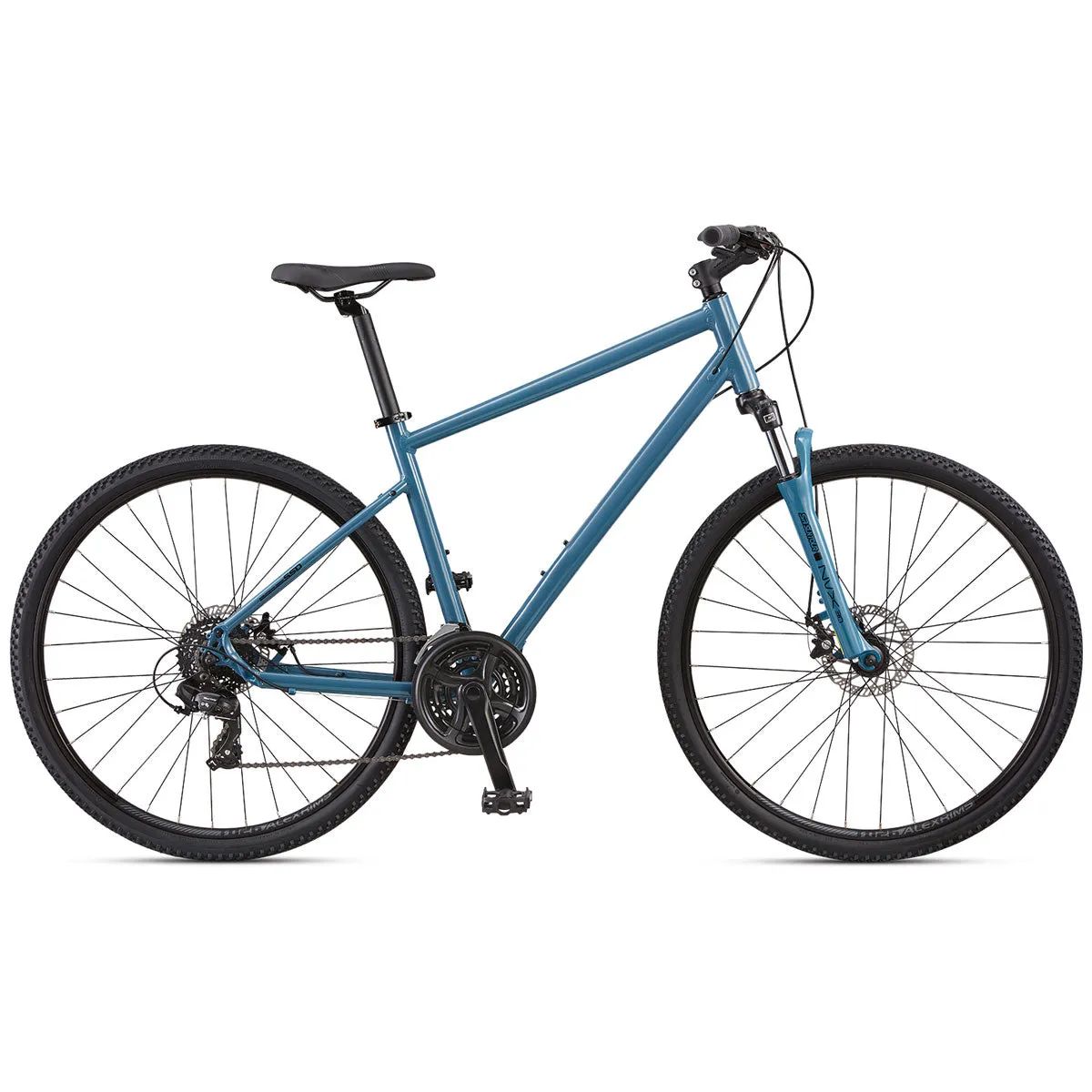

Lightweight 6061 Alloy Frame
Go faster for less effort with a stiff, lightweight alloy frame.
Smooth Suspension
Experience a smoother ride no matter the terrain with the SR Suntour NVX fork. This suspension fork will help absorb bumps and keep you in control.
Shimano 7-Speed Drivetrain
The 7-Speed Shimano drivetrain provides smooth and reliable gear shifting that will allow you to adapt to any incline.
Reliable Braking System
Experience smooth and consistent braking with the Tektro cable- actuated disc brakes. Riding in wet and muddy conditions, disc brakes offer far superior stopping power to rim wall brakes making them the best option for all season riding.
The Blueprints
An awesome package with the following components:
- A. Lightweight 6061 Alloy Frame
- B. Shimano FD-TY710-2 Front
- C. Cable-Actuated Disc Brakes
- D. Shimano 7-Speed Drivetrain
- E. Double Wall Alloy Rims
- F. Suntour NVX HLO Suspension Fork
Where to ride?
Specification
Technical Specifications
| Frame | Size Specific Design 6061 alloy with fast back rear triangle, 1 1/8” head tube, internal cable routing, chain stays disc brake mounts, 34.9mm seat tube, kickstand mount, replaceable derailleur hanger, fender/rack eyelets and ring lock mount eyelets. |
|---|---|
| Fork | SR/Suntour NVX-DS, alloy lowers, coil spring, 28mm stanchions, 1-1/8” steerer, 75mm travel |
| Headset | Internal Cup, threadless, 1 1/8” |
| Wheels | Alex TD26 disc specific double wall alloy rims, 32H, alloy disc hubs with QR and 14g black electroplated spokes |
| Tires | CST Dual Sport Tire, 700 x 42c |
| Derailleurs | Shimano TY300 rear and TY510 top swing front |
| Shift levers | Shimano Rapid Fire SL-EF500, 2-speed |
| Chain | KMC Z7 |
| Cassette | Shimano CS-HG200, 7-speed, 12-32T |
| Crankset | Forged alloy crank with chain guard, 48/38/28T, 170mm |
| BB Set | VP sealed cartridge, 68 x 122.5mm |
| Pedals | Platform style |
|---|---|
| Brakeset | Tektro MD-280 cable-actuated disc brakes with 160mm stainless 6-bolt rotors and Shimano EF41 levers |
| Handlebar | Riser bar, double-butted alloy, 25.4 x 10 ̊ sweep x 20mm rise x 640mm (15”), 660mm (17-23”) |
| Stem | Trekking, 3D forged alloy, 15 ̊ rise, Length-60mm (15- 17”), 90mm (19-23”) |
| Grips | ERGO Type Grip |
| Seat Post | Alloy micro-adjust, 31.6 x 350mm alloy clamp with QR seatpin |
| Saddle | Touring with SL cover |
| Sizes | 15”, 17”, 19”, 21” |
| Color | Blue |
| Weight | Approx. 14.5kg |
Bike Size Guide
| Frame Size Number | 15" | 17" | 19" | 21" |
| A - Seat Tube | 38.1cm | 43.18cm | 48.26cm | 53.34cm |
| B - Seat Tube Angle | 73° | 73° | 73° | 73° |
| C - Head Tube Length | 12.7cm | 14cm | 15.5cm | 16.7cm |
| D - Effective Top Tube | 58.3cm | 59.3cm | 60.3cm | 61.2cm |
| E - Chainstay Length | 44cm | 44cm | 44.5cm | 44.5cm |
| F - Wheelbase | 107.1cm | 108.2cm | 109.9cm | 110.8cm |
