With BatteryCheck100, you can understand your recreational vehicle’s secondary battery when travelling. We all know that a simple measurement of voltage is not enough to comprehend fully what is happening with your deep cycle battery. Whether you are using your 12V power or charging the battery, you want to be 100% sure your battery is in good health and has enough power for your next adventure.

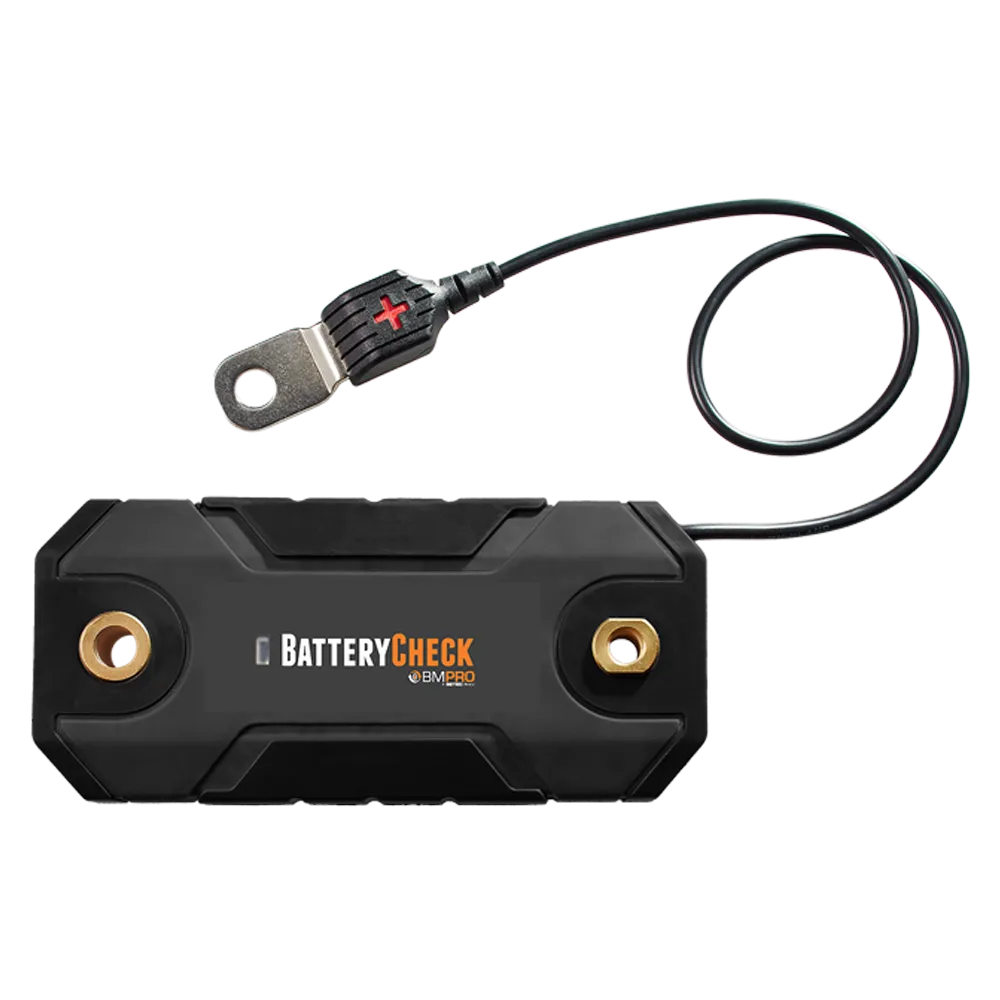

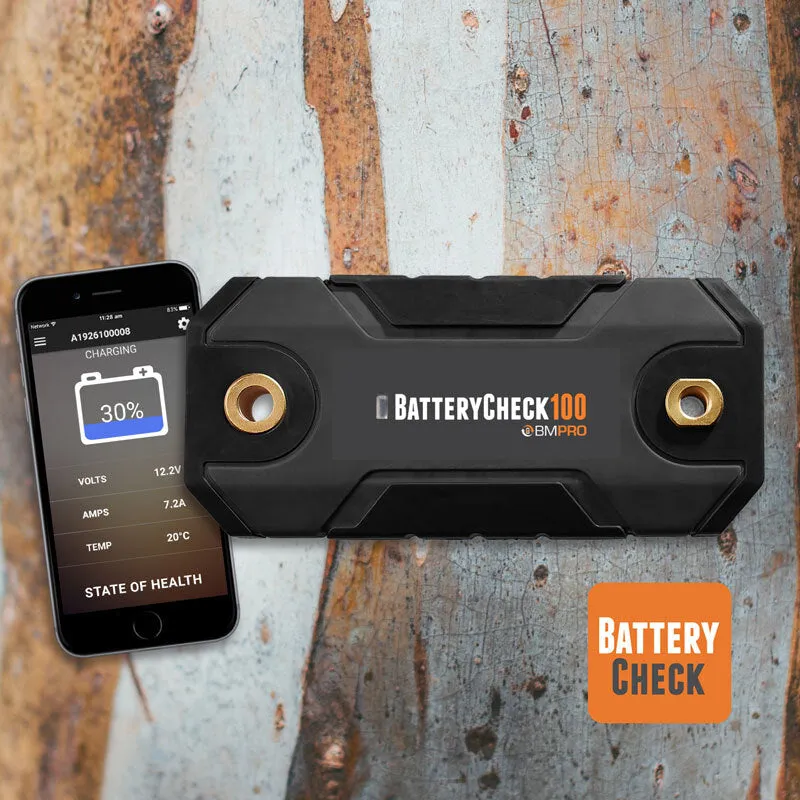

BMPRO’s BatteryCheck100 is a 12V with the latest Bluetooth LE technology built in, so you can monitor your battery via smartphone with the app. The new and improved app is highly intuitive, clear, and easy to use. Download the BatteryCheck100 PRO app from the Google Play store or App Store and set the monitoring in minutes.
BatteryCheck100 is compatible with a range of standard 12V deep-cycle batteries. It provides real-time battery management data that allows users to effectively monitor remaining battery energy via a simple-to-use app.
Specially designed for recreational vehicles’ deep cycle batteries, BatteryCheck100 allows monitoring up to 100A maximum charge or discharge. BatteryCheck100 is not suitable for engine cranking applications of any type and is not intended for under-vehicle bonnet use.
Battery parameters monitored are:
- Voltage and Temperature
- Charge/Discharge Current
- State of Charge (SoC)
- State of Health (SoH)
- Estimated Discharge Time Remaining
With Bluetooth battery monitor BatteryCheck100, you’ll always have enough power to keep your adventures on track.

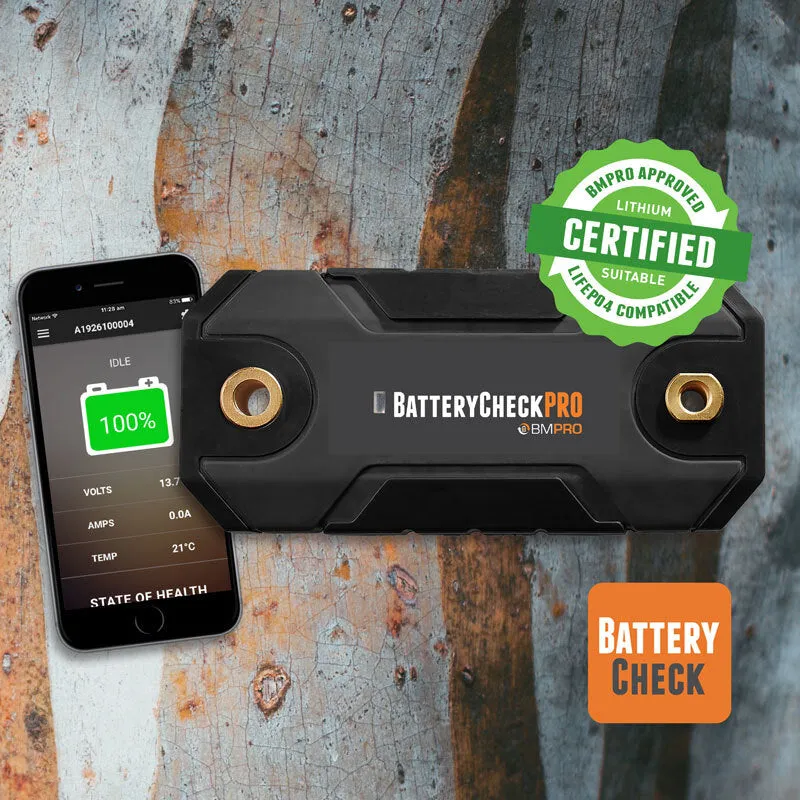

For high current requirements and to monitor LiFePO4 batteries, use BatteryCheckPRO.
Features:
- Communicates with smartphones via Bluetooth
- Easy DIY installation – no mechanical expertise required
- Works with batteries in parallel (7Ah-800Ah battery bank)
- Internal shunt capacity – 100A peak, 80A continuous
Compatible with any deep cycle 12V lead acid, AGM, and gel battery
SPECIFICATIONS:
- Input Voltage: 8V - 16V
- Voltage Measurement Range: 8V - 16V
- Voltage Measurement Resolution: <20mV
- Current Consumption: 10mA peak
- Current Measurement Range: ± 100A
- Continuous Current Rating: ± 80A
- Current Measurement Resolution: <20mA
- Operating Temperature: -20°C to 70°C
- Temperature Measurement Range: -20°C to 70°C
- Temperature Measurement Resolution: 1°C
- Monitored Battery Capacity: 7-800Ah
- Humidity: Operating: ≤ 85% RH non-condensing; Non-operating: ≤ 95% RH non-condensing
- Dimensions: 140mm x 65mm x 20mm
- Weight: Approx. 520g

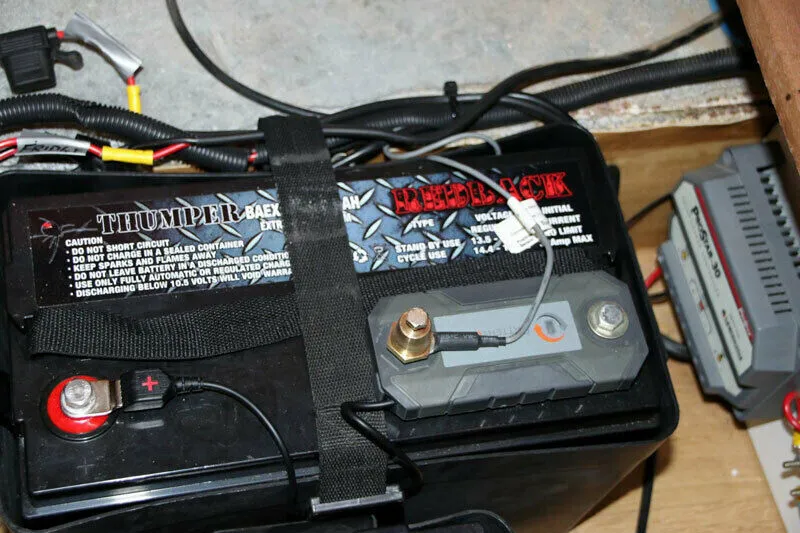

- Installation: Mounted on battery
- IP Rating: IP54
