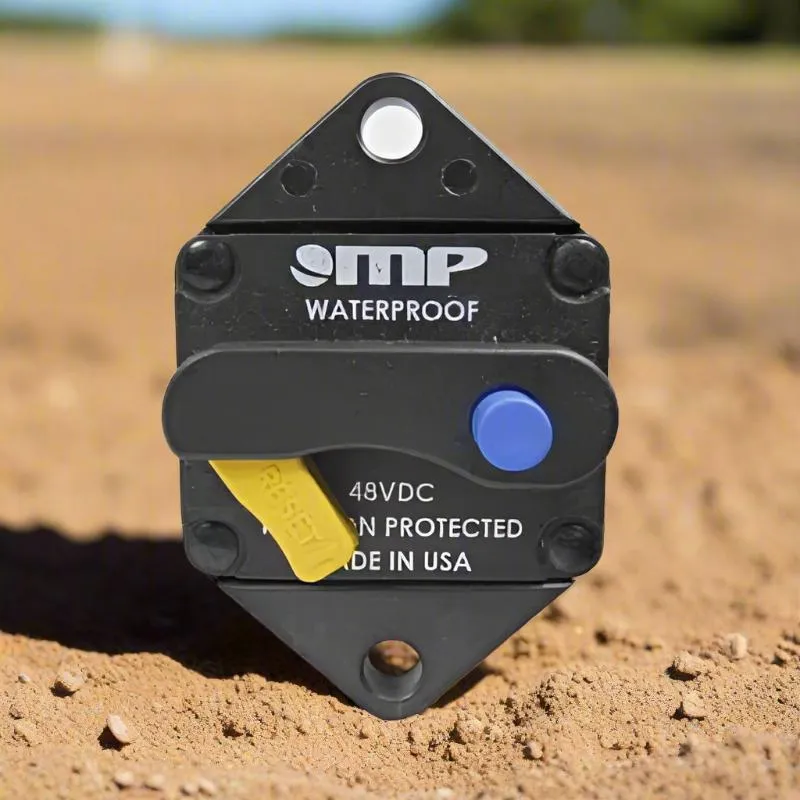

High Amperage Panel Mount Circuit Breakers

Made in the USA and available in ratings from 50to 80 Amps, the 17 Series offers a robust thermoplastic material case enclosure, designed with superior moisture sealing,  panel mount configuration. The MP 17 Series is designed as a drop-in replacement for existing surface and panel mountable configurations  the market today. Ignition Protected and waterproof.

Jay-Dee Part #: CB--HDRP (Insert Amperage)

Pack Qty: 1

Brand: Mechanical Products 175-P0 Series

Voltage: Up to 48VDC

Interrupt Rating: 2.5kA at 14VDC or 1.5kA at 48VDC

Termination: M6 Stainless Steel threaded studs

Operating Temp: - 40°C to 85°C

Ingress Protection Rating: IP67
