SPECS

Name: EXL-SQ6.5C | 6.5" 400 WATT 2-WAY COMPONENT SPEAKER SYSTEM
SKU: 130052

SKU
EXL-SQ6.5CX
Nominal Diameter
6.5"
Nominal Impedance
4 ohm
RMS Power Handling
120W
MAX Power Handling
400W
Sensitivity (1w/1m)
86dB
Frequency Response
45Hz-20kHz
Recommended HI Pass Crossover
40Hz
Number of ways
2 way
Pair or Single
Pair
Grill Included
Yes

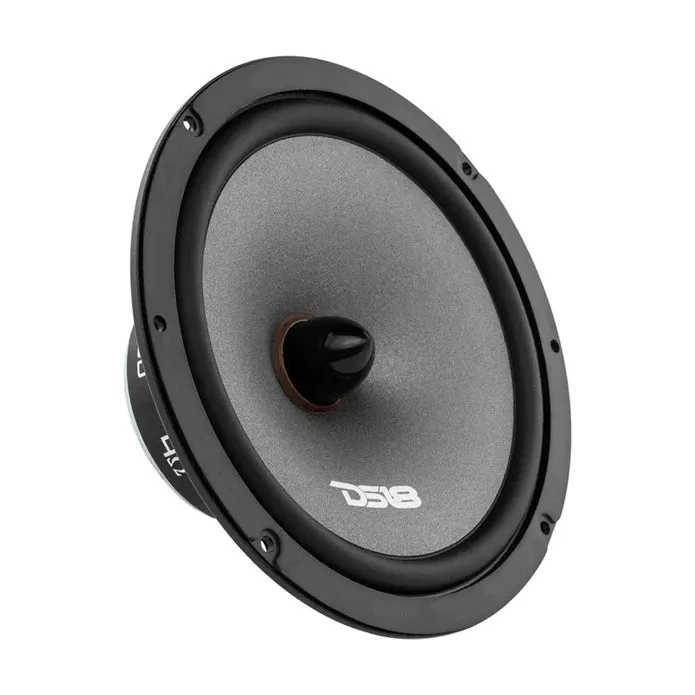

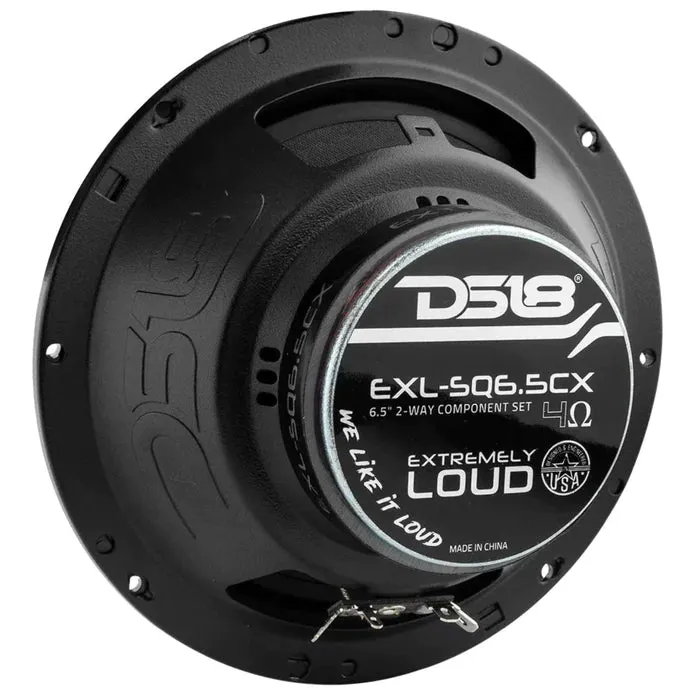

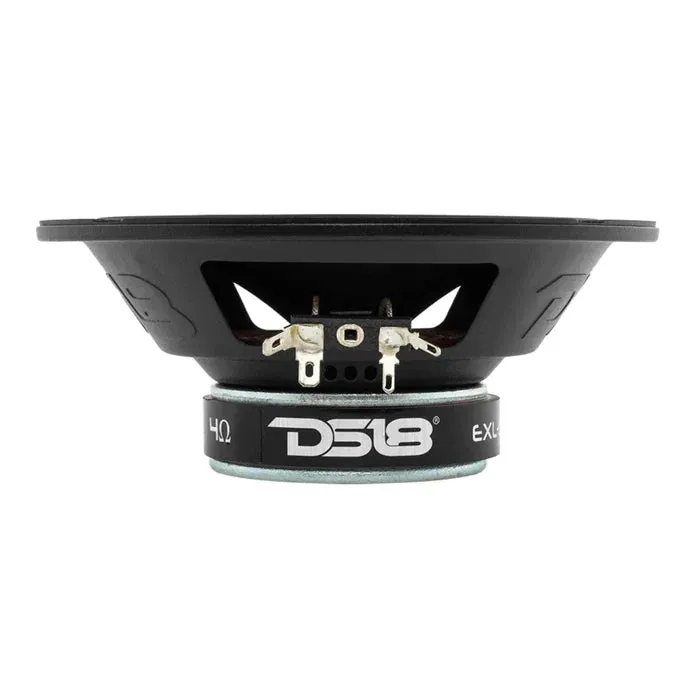

WOOFER SPECIFICATIONS

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
ASV
Winding Material
SV
Cone Material
Woven Fibre Paper Cone
Bullet Material
Aluminum
Surround Material
Butyl Rubber
Basket Material
Steel
Basket Color/Finish
Black Sand
Magnet Material
Ferrite (Y30)
Magnet Weight
11.2 Oz
Overall Diameter
6.5" / 165.5mm
Overall Depth
2.63" / 67mm
Front Mount Baffle Cutout
5.62" / 143mm
Mounting Depth
2.44" / 62mm
Motor Diameter
3.14" / 80mm

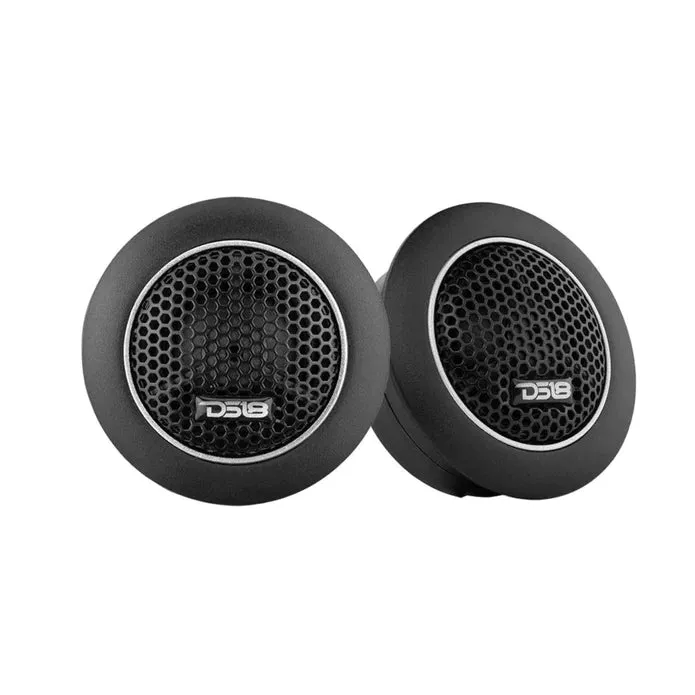

TWEETER SPECIFICATIONS

Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Aluminium
Winding Material
SV
Diaphragm Material
Silk
Magnet Material
Neodymium
Magnet Weight
9.6g
Overall Diameter (without Adapter)
1.69" / 43mm
Overall Depth (without Adapter)
0.74" / 19mm
Front Mount Baffle Cutout
1.92" / 49mm
Mounting Depth
0.7" / 18mm

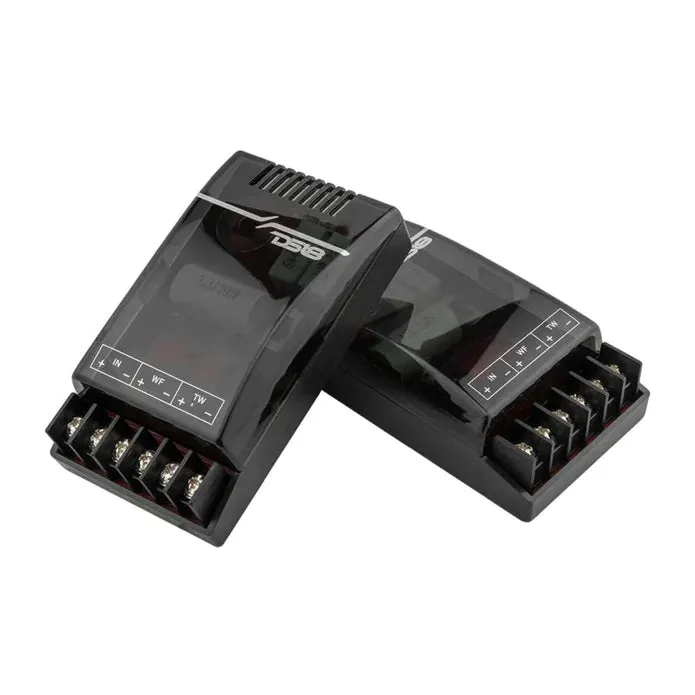

CROSSOVER SPECIFICATIONS

Passive Crossover Ways
2 Way
Frequency Crossover point
3Khz
Power Handling
300W RMS
Cut-Off Slope
Wf: 6dB / Tw: 12dB per Octave
Tweeter Attenuation
0 / -3 / -6 dB
Capacitor Type
Mylar
Coil Type
Wf: Iron / Tw: Free air
Terminal Type
Screw Type
Housing Material
Top: PS / Bottom: ABS
Adjustments
Tweeter Attenuation
Extra Features
PTC Tweeter Protection
Crossover Measurement (Inches) Overall Length
2.59" / 66mm
Overall Depth
4.72" / 120mm
Overall Height
1.39" / 35.4mm
Gross Single Unit Weight (lb)
6.5

THIELE & SMALL PARAMETERS

Equivalent Volume Vas
8.62L / 0.304ft3
Excursion (one way) Xmax
9mm
Free Air Resonance Fs
62Hz
Mechanical Factor Qms
3.72
Electrical Factor Qes
0.76
Total Factor Qts
0.63

PRODUCT OVERVIEW

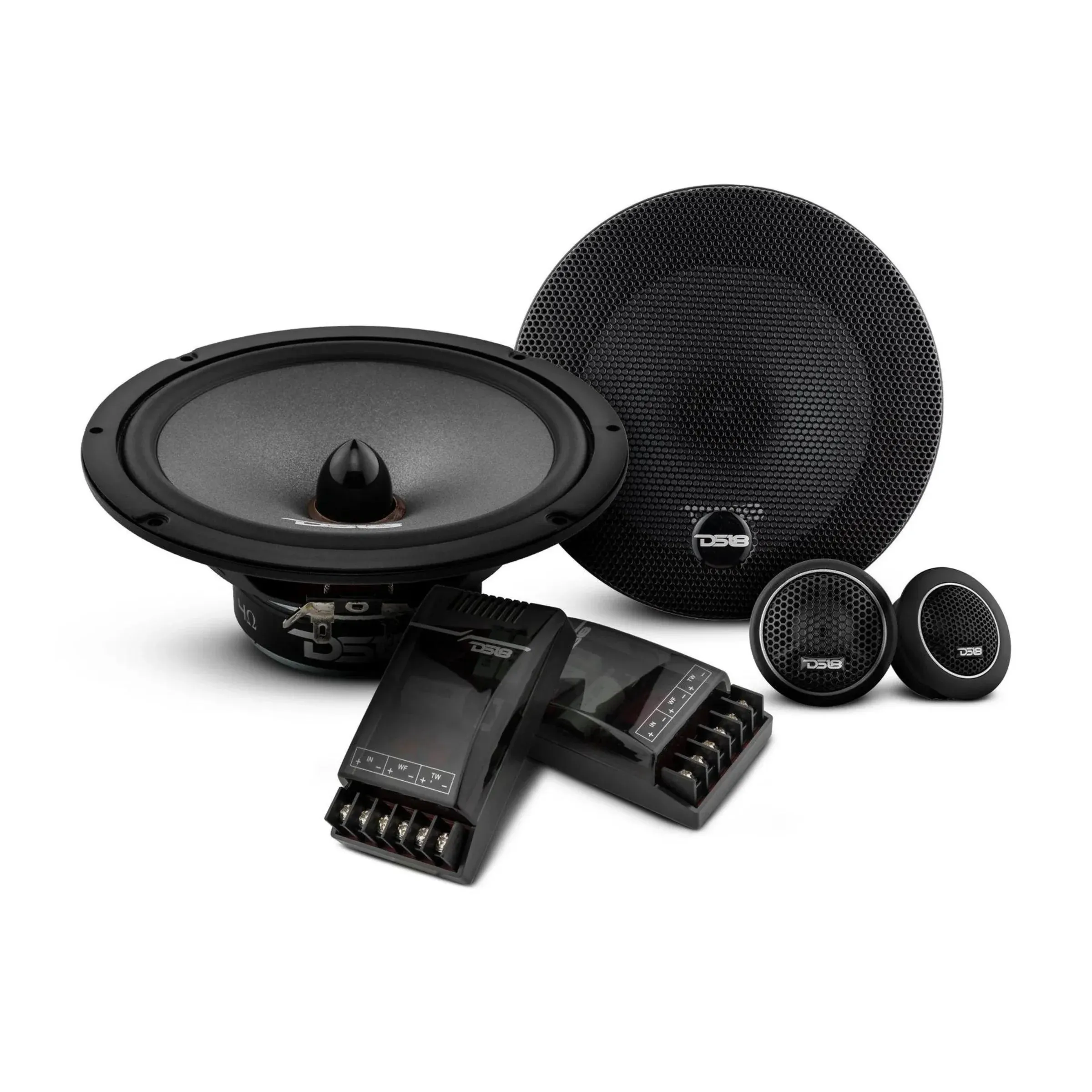

DS18 EXL-SQ6.5CX

6.5" 2-Way Component Speaker System 400 Watts 4-Ohm (Pair)

Instantly increase the sound quality in your vehicle and get EXTREMELY LOUD with powerful clear sound that fills any space with DS18’s EXL-SQ6.5CX: a top-of-the-line 2-way component speaker system designed for the ultimate audio experience in your car or truck.

Featuring two 6.5-inch woofers and two 1-inch tweeters, the EXL-SQ6.5CX delivers exceptional sound clarity and deep bass response that will fill your vehicle with rich, vibrant sound.

The EXL-SQ6.5CX comes with a woofer equipped with a 2-way design with a 3-ohm impedance, making these speakers extremely easy to incorporate into any high-powered audio system.
