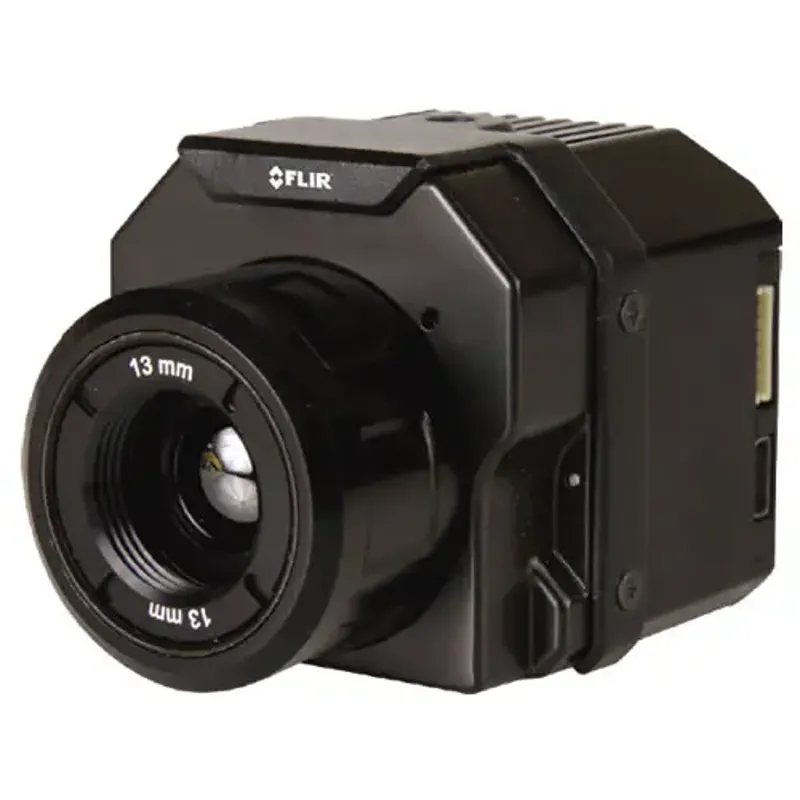

The Teledyne FLIR VUE-PRO-R-640-13MM-9HZ Radiometric Thermal Imager for Drones (sUAS) offers certified thermographers and drone operators high-performance thermal imaging with precise, calibrated temperature measurement embedded in every pixel. Designed for aerial inspections, it enhances a wide range of applications including infrastructure analysis, public safety, agriculture, and building diagnostics.
With its 640 x 512 sensor resolution, 13mm lens, and a 9 Hz refresh rate, this compact payload captures detailed thermal imagery while remaining lightweight for drone integration. It delivers reliable performance through MAVLink compatibility, radiometric JPEG support, and real-time analog video output, giving users both in-flight visibility and post-mission analytics.
What's Included:
- 1 - Radiometric Thermal Imager for Drones (sUAS) with 13mm Lens, 640 x 512, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Radiometric Sensor
Captures thermal imagery at 640 x 512 resolution with accurate temperature data embedded in each pixel.
Optimized for Airborne Applications
Calibrated image settings are tuned specifically for drone-based operations in various environments.
13mm Lens with Wide Field of View
Provides a 45° x 37° FOV for digital output and 45° x 35° for analog video, ideal for broad aerial scans.
Uncooled VOx Microbolometer
Delivers durable, maintenance-free thermal performance without mechanical components.
Flexible Video and Image Storage
Supports onboard microSD recording in MOV format, along with still image saving in JPEG or 14-bit TIFF formats.
Embedded Radiometric Data
Saves radiometric JPEGs with temperature information in every pixel for detailed analysis.
Accurate Real-Time Measurements
Enables non-contact temperature readings with ±5°C or 5% accuracy.
MAVLink Integration
Allows advanced flight planning and telemetry through compatible ground control systems.
PWM Camera Control
Adjust settings such as color palette and zoom directly from your drone controller.
Simple Power and Video Output
Utilizes a 10-pin mini-USB connector for power input and analog video output.
Mobile App and Software Compatibility
Configure and analyze recordings using Teledyne FLIR’s UAS app and FLIR Tools software.
Field-Upgradeable Design
Hardware is upgradeable to meet future mission requirements or software enhancements.
What's Included
Included with Your Purchase:
- 1 - Radiometric Thermal Imager for Drones (sUAS) with 13mm Lens, 640 x 512, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
- Sensor Resolution: 640 x 512
- Lens: 13mm
- Field of View (Digital): 45° x 37°
- Field of View (Analog NTSC): 45° x 35°
- Frame Rate: 9 Hz
- Thermal Imager: Uncooled VOx Microbolometer
- Spectral Band: 7.5 µm to 13.5 µm
- Measurement Accuracy: ±5°C or 5% of reading
- Video Output: Analog via 10-pin mini-USB
- Image Recording: MOV (video), Radiometric JPEG or 14-bit TIFF (still images)
- Control Options: PWM inputs, MAVLink, UAS mobile app
- Software Compatibility: Teledyne FLIR Tools
- Upgrade Capability: Field-upgradeable firmware
FAQ
Q: What kind of drone is this compatible with?
A: It is compatible with sUAS platforms that support PWM control, MAVLink, or analog video input.
Q: Can I analyze thermal data after the flight?
A: Yes, you can use Teledyne FLIR Tools to review radiometric JPEGs with pixel-level temperature data.
Q: How is the camera powered and how is video output delivered?
A: Power and analog video are delivered through a 10-pin mini-USB interface.
Q: Is the camera firmware upgradeable?
A: Yes, it is field-upgradeable to support new features and improvements over time.
