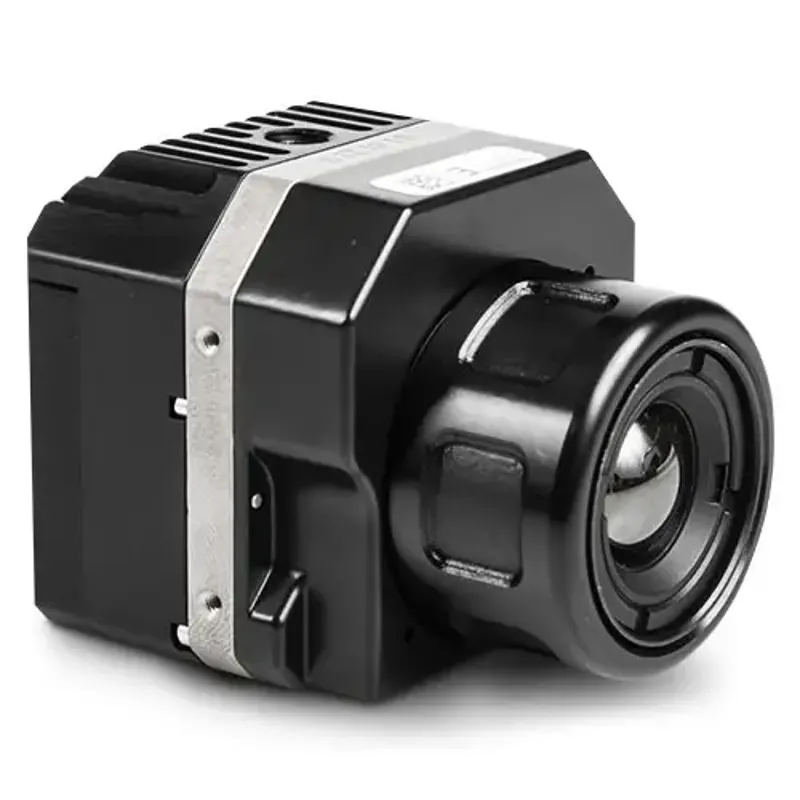

The Teledyne FLIR VUE-PRO-336-13MM-30HZ Thermal Imager is a professional-grade tool engineered for aerial thermal imaging. Designed for seamless integration with drones (sUAS), this imager delivers industry-standard 336 x 256 resolution at 30 Hz, ideal for mapping, inspection, and precision agriculture. The 13mm lens offers a 25° field of view, capturing critical thermal data with high accuracy. It supports thermal video and 14-bit still image recording directly to a microSD card, ensuring robust data retention and post-flight analysis.
With MAVLink integration and PWM control, users can adjust color palettes, zoom levels, and other settings on the fly. Compatible with Teledyne FLIR Tools and the UAS mobile app, this field-upgradeable unit simplifies pre- and post-mission setup and analysis while enhancing operational flexibility and mission effectiveness.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 13mm Lens, 336 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Imaging
Delivers 336 x 256 resolution with uncooled VOx Microbolometer for clear, accurate thermal imagery.
Wide Spectral Range
Operates in the 7.5 µm to 13.5 µm range for broad thermal detection applications.
30 Hz Full Frame Rate
Captures fast-moving scenes with 30 Hz NTSC output or 25 Hz PAL.
Optimized for Airborne Use
Image settings are fine-tuned for stable and accurate drone-mounted operations.
Integrated Data Recording
Records thermal video in MOV format and 14-bit still images to microSD card.
Real-Time Non-Contact Measurement
Provides accurate temperature data of objects and infrastructure from the air.
Simple Video Interface
Uses a 10-pin mini-USB connector for power-in and analog video-out functionality.
Drone Control Integration
MAVLink and PWM support allow in-flight camera adjustments like color palettes and zoom.
Post-Flight Analysis Tools
Compatible with Teledyne FLIR Tools for detailed reporting and analysis.
Mobile App Configuration
Set camera parameters and recording modes via Teledyne FLIR’s UAS mobile app.
Field-Upgradeable Design
Enables ongoing enhancements and software updates without returning the unit.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 13mm Lens, 336 x 256, 30 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
- Sensor Resolution: 336 x 256
- Lens: 13mm
- Field of View: 25° x 19° (Digital); 24° x 18° (Analog)
- Frame Rate: 30 Hz (NTSC), 25 Hz (PAL)
- Spectral Band: 7.5 µm to 13.5 µm
- Thermal Imager Type: Uncooled VOx Microbolometer
- Measurement Accuracy: ±5°C or 5% of reading
- Output Format: MOV video and 14-bit still images
- Interface: 10-pin mini-USB (Power-in/Analog video-out)
- Control Options: PWM inputs, MAVLink protocol
- Software Compatibility: Teledyne FLIR Tools, Teledyne FLIR UAS App
- Upgradeability: Field-upgradeable
FAQ
Q: Can this thermal imager record video and still images?
A: Yes, it records MOV-format video and 14-bit still images directly to a microSD card.
Q: How is the imager powered and connected?
A: It uses a 10-pin mini-USB connector for both power input and analog video output.
Q: Can I adjust camera settings during flight?
A: Yes, it supports in-flight control via PWM inputs and MAVLink protocol.
Q: What applications is this imager suitable for?
A: Ideal for drone-based thermal mapping, inspections, and precision agriculture.
