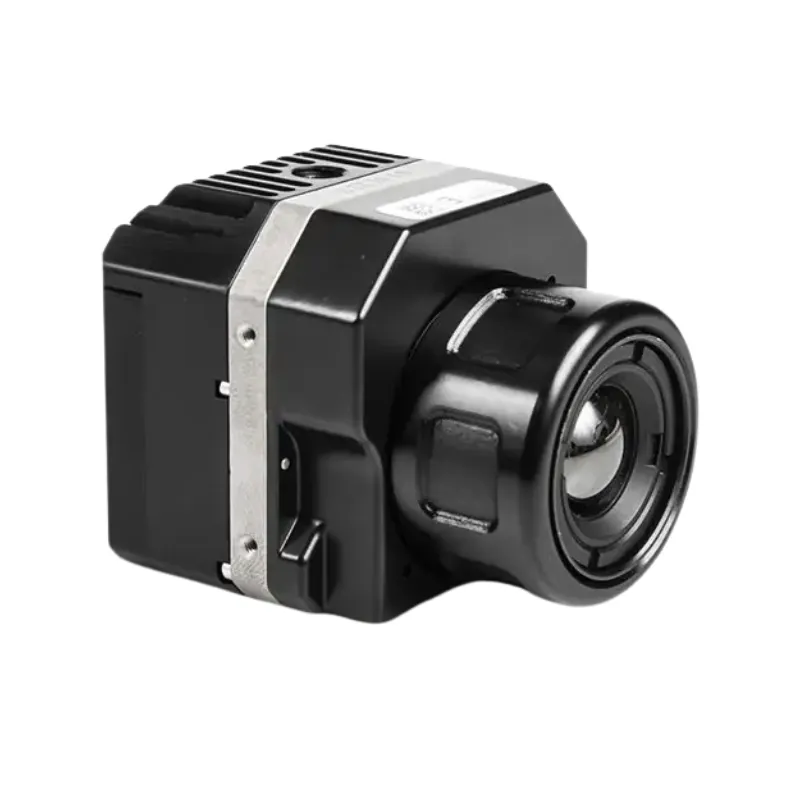

The Teledyne FLIR VUE-PRO-640-9MM-9HZ Thermal Imager is a professional-grade sensor designed to enhance drone-based thermal imaging missions. Featuring a 9mm lens and 640 x 256 resolution, this imager captures high-quality thermal data in real-time while recording both video and still images to a microSD card for post-flight review and analysis.
Ideal for applications such as mapping, surveying, and precision agriculture, it supports automatic geo-tagging when integrated with compatible flight control systems. This compact unit is equipped for non-contact temperature measurement, making it a versatile tool for aerial inspections and environmental monitoring.
What's Included:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 640 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Features
High-Resolution Thermal Imaging
Captures crisp thermal imagery with a 640 x 256 uncooled VOx microbolometer sensor.
Wide Field of View
The 9mm lens provides a 69° x 56° FOV for digital output and 62° x 49° for NTSC analog video.
Low Frame Rate Output
Operates at a 9 Hz (7.5 Hz NTSC) frame rate, compliant for export control.
Temperature Accuracy
Measures temperatures with ±5°C or 5% of the reading, ensuring precise thermal analysis.
Onboard Recording
Stores thermal videos in MOV format and 14-bit still images directly to a microSD card.
MAVLink Integration
Supports communication with drone flight controllers for geo-tagging and telemetry overlay.
PWM Control Functions
Allows in-flight camera control, including color palettes and zoom, through standard controller inputs.
FLIR Tools Compatibility
Enables in-depth post-flight analysis and reporting using Teledyne FLIR software.
UAS App Configuration
Adjust settings and manage recordings via Teledyne FLIR's dedicated mobile app.
Simple Connectivity
Connects with a 10-pin mini-USB for both power and analog video output.
Field Upgradeable
Hardware and software can be updated in the field to keep the unit current.
What's Included
Included with Your Purchase:
- 1 - Thermal Imager for Drones (sUAS) with 9mm Lens, 640 x 256, 9 Hz
- 1 - Bench Cable
- 1 - MicroSD Card
- 1 - Accessory Cable
Specifications
- Sensor Resolution: 640 x 256
- Lens: 9mm
- Field of View (Digital): 69° x 56°
- Field of View (Analog NTSC): 62° x 49°
- Frame Rate: 9 Hz (7.5 Hz NTSC)
- Spectral Band: 7.5 µm to 13.5 µm
- Thermal Imager Type: Uncooled VOx Microbolometer
- Measurement Accuracy: ±5°C or 5% of reading
- Recording Format: MOV (video), 14-bit stills
- Storage: microSD Card
- Connectivity: 10-pin mini-USB (Power/Analog Video Out)
- Control Interface: PWM, MAVLink
- Software Compatibility: Teledyne FLIR Tools, UAS mobile app
- Upgradability: Field-upgradeable
FAQ
Q: What kind of drone is this camera compatible with?
A: The VUE-PRO-640-9MM-9HZ is compatible with most commercial sUAS platforms that support MAVLink or PWM integration.
Q: Can I control camera functions during flight?
A: Yes, functions like zoom and color palette selection can be adjusted in-flight using PWM inputs.
Q: Does the camera support onboard recording?
A: Yes, it records thermal video and still images directly to a microSD card onboard.
Q: Is this unit field-upgradeable?
A: Yes, both firmware and hardware can be upgraded in the field.
