WARFET is GATE?s most advanced AEG Control System. It has 20 functions and almost 6 million possible configurations. The outstanding Tactical Programming Card provides you with very easy access to the AEG Controller settings.
Thanks to the PRE-COCKING and SMART TRIGGER functions, you can achieve a trigger response similar to a real gun. The Programmable Burst (1-5 rounds) enables you to fire a pre-determined number of BBs, which is very useful in MILSLIM and for using low-caps. Another function is ROF Control, which allows you to reduce ROF, so you can use strong LiPo batteries, and still have ROF just like in a real rifle. If your AEG becomes jammed, the SMART FUSE protects the battery and the motor against damage. It also prevents deep battery drain. Moreover, with WARFET you get: MOSFET, ON/OFF ACTIVE BRAKE, BUILT-IN SELF TEST, DEBOUNCING, and more. Many useful functions, great electrical specifications and conformal coating (military specifications: MIL-V-173C) make the AEG Control System able to meet the needs of most experienced airsoft players.
SUPER-EASY INSTALLATION - JUST PLUG&PLAY, NO SOLDERING REQUIRED
Features:
User-friendly configuration via the Tactical Programming Card Sturdy and super-small size AEG Controller Compatibility with the strongest AEG replicas and batteries (ready to work with LiPo 14.8V, 5000 mAh, 60C) Tested with car batteries Super-easy installation - thanks to the Mini Tamiya adapters, you can connect WARFET to the original (stock) wiring It can work with most built-in MOSFETs With stock wiring, WARFET reduces melting switch assemblies In hardwired installation, WARFET draws the energy from the battery directly to the motor, bypassing the mechanical trigger contacts Resistant to atmospheric conditions (military specifications: MIL-V-173C) Deep-drain protection for 7.4V, 11.1V, 14.8V LiPoly and 9.6V, 12.8V LiFePO4 Improves battery life, ROF, spring life and gearbox reliability

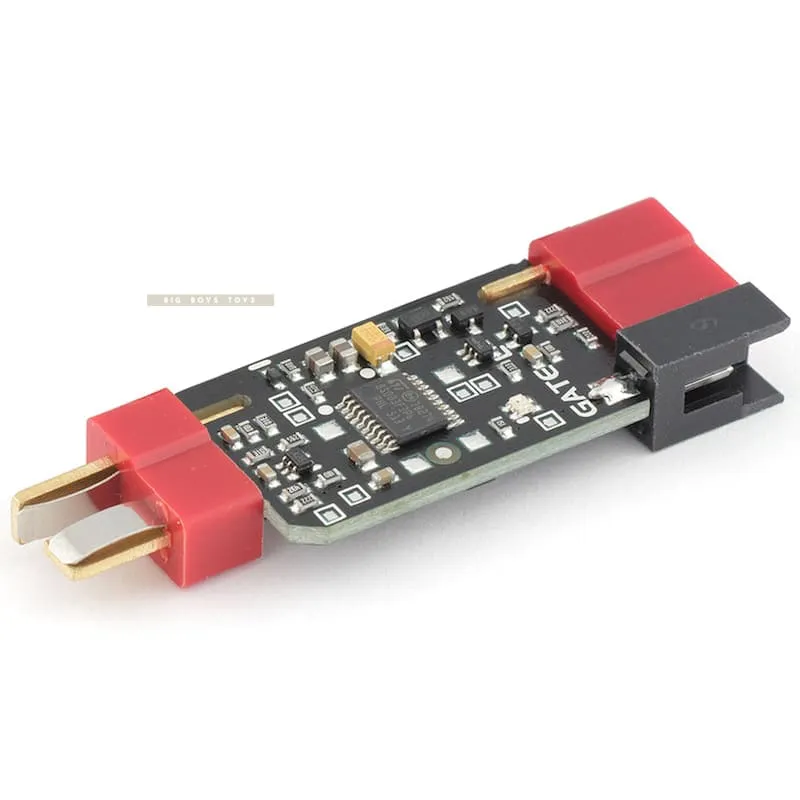

AEG Controller parameters: Wide range of supply voltage: 3-17V Protection against short-circuits: up to 1000A Incredibly low current consumption on stand-by: 0,2mA Ultra-low resistance: 2mâ?¦ Dimensions: 56x20x9mm Weight: 9,4g Tactical Programming Card Ready
The outstanding Tactical Programming Card provides you with very easy access to the AEG Controller settings. All you need to do is to connect the Tactical Programming Card between the battery and the Controller. A big advantage is that there is no need to use any additional wires. The AEG Controller can be fitted out of view in your AEG, and you still have easy access to its settings. The Tactical Programming Card communicates with the AEG Controller and displays the most recently saved settings. You can simply change them using three buttons.
PLEASE NOTE There is no Programming Card included in this kit. The Programming Card is necessary for proper configuration. The WARFET Power Module is dedicated for users who, for example, have a few guns, and want to use several WARFETs. Therefore, they do need only one Tactical Programming Card for configuration of all their WARFETs. So, if somebody has already bought a standard version of WARFET with Tactical Programming Card, and he wants to buy one WARFET more, purchasing WARFET Power Module could be more profitable for him.

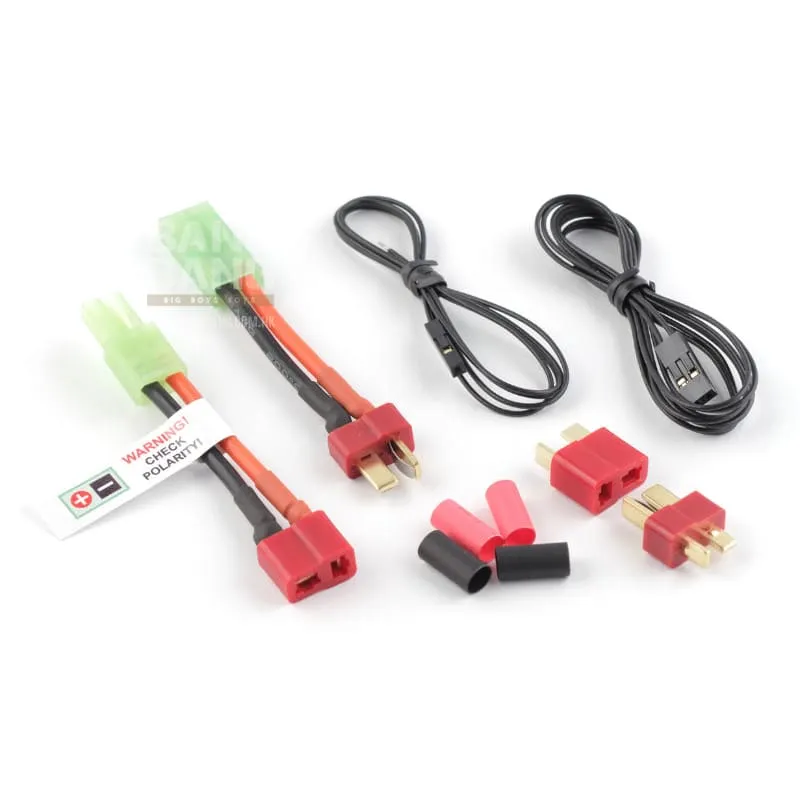

WARFET Power Module Kit which includes:
AEG Controller Battery Mini Tamiya adapter AEG Mini Tamiya adapter Pair of Deans-T Connectors Single Trigger Wire Double Trigger Wire WARFET complies with all international CE and ROHS requirements.
Here's a link to its manual which is available in English, Spanish, French, Italian and Polish:
