IP Video Intercom Kit
- Indoor station: 7-inch touch screen, user friendly interface, Plug & Play
- Indoor station: Easy, cost-efficient installation, Wifi & POE Supported
- Indoor station: Receives video call and unlocks on mobile App anywhere, any time
- Indoor station: Supports live view of up to 16 IP cameras
- Door station: Hight quality imaging with 2MP resolution
- Door station: Easy, cost-efficient installation, Wifi & POE Supported
- Door station: Easy configuration through WEB interface
- Door station: IP65 water resistant, preventing water ingress for outdoor use
Technical parameters
- Available models DS-KIS603-P(C)
- Sub series IP Value Kit
- RS-4851
- Dimension 138 mm × 65 mm × 27 mm
- Indicator 2
- WDR True WDR
- Operation method Capacitive touch screen
- Wired network10/100 Mbps self-adaptive
- Power supplyIEEE802.3af, standard PoE12 VDC
- Working temperature-10 °C to 55 °C (14 °F to 131 °F)
- Installation Surface mounting
- RAM256MB
- Memory128 MB
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Alarm input8-ch alarm inputs
- TF card Max to 32 G, SD 2.0 or lower version
- Power consumption≤ 6 W
- Protocol TCP/IP, SIP, RTSP
- Debugging port1
- Network protocol TCP/IP, RSTP
- Camera 2MP HD camera
- Two-wire 64 Kbps
- Protection level IP65
- Display screen7-inch colorful TFT screen
- Night vision Low illumination IR supplement mode:3 m
- Backlight compensation Support
- Digital noise reduction Support
- Field of view Horizontal: 131° Vertical: 78°
- Video Compression Standard H.264
- Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
- Motion detection Support
- Flash-avoid frequency 50 Hz, 60 Hz
- Audio intercom Two-way audio communication
- TAMPER switch 1
- Flash 32 MB
- Display resolution 1024 × 600
- Wireless network Wi-Fi 802.11 b/g/n
- Grounding 1

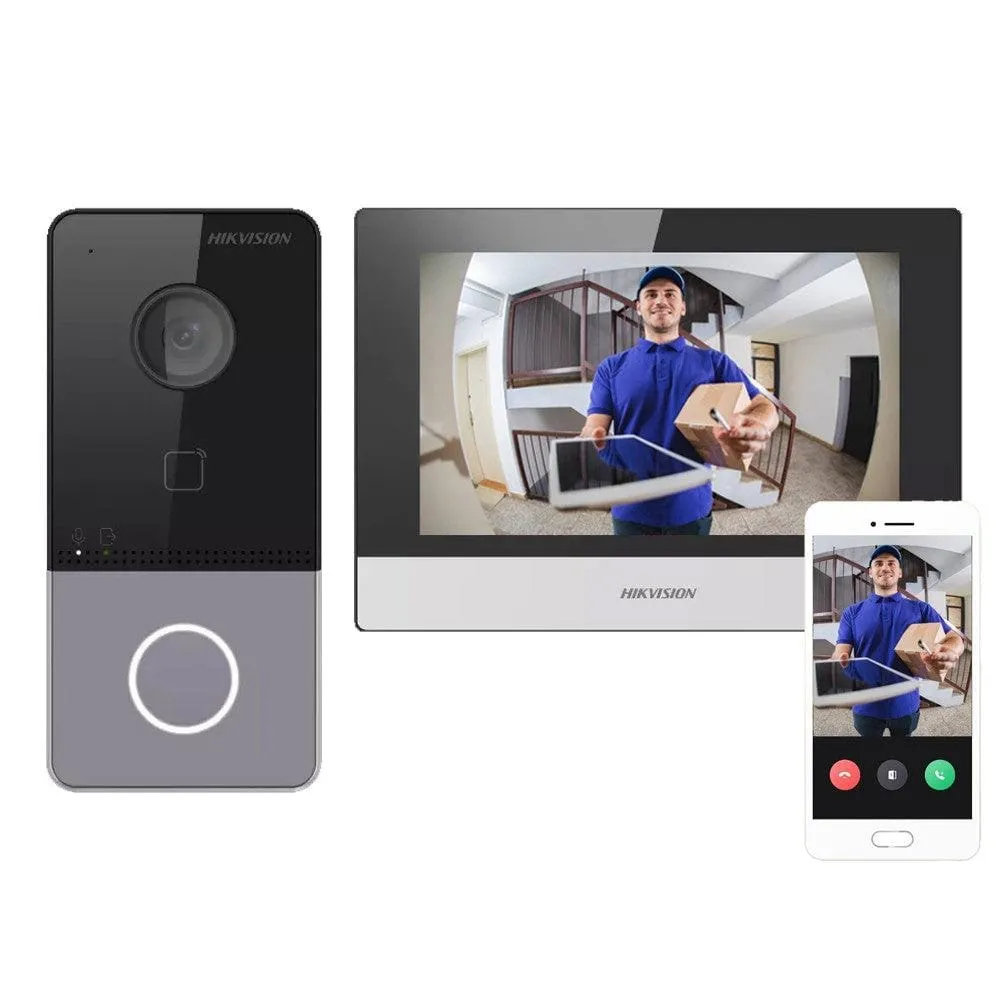

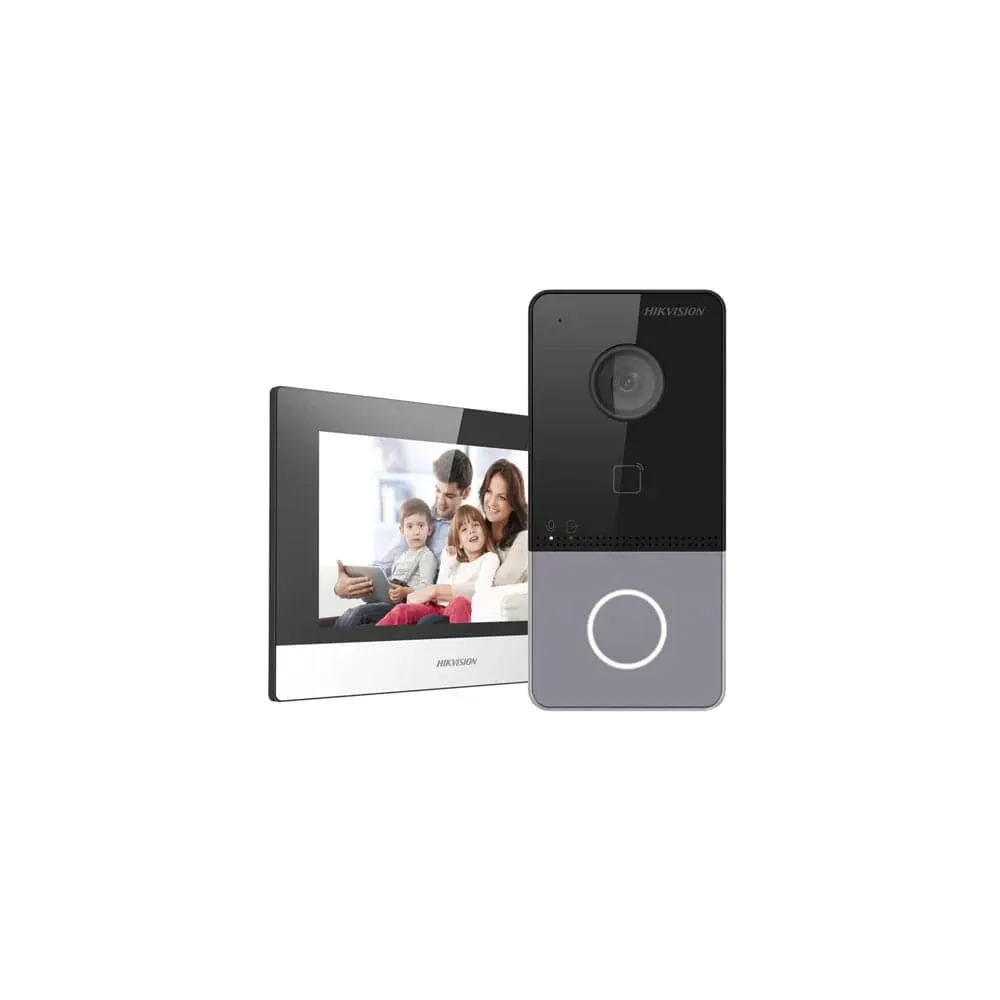

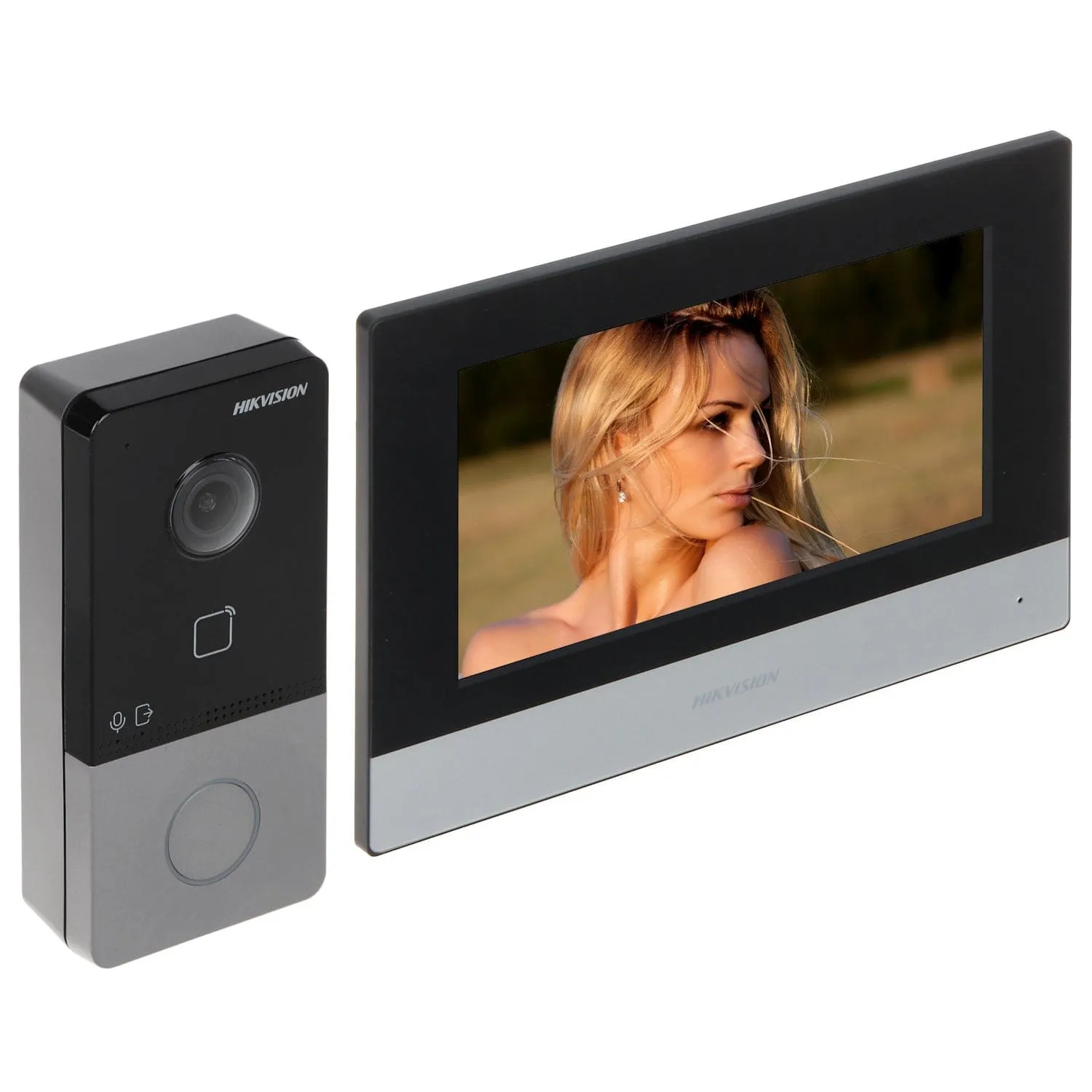

Elevate your home or office security with the Hikvision IP Video Intercom Kit - DS-KIS603-P(C). This advanced intercom system features a sleek video door station and a high-resolution indoor monitor, providing crystal-clear video communication. With IP technology, it allows for remote access and control via mobile devices, offering modern security and convenience.
