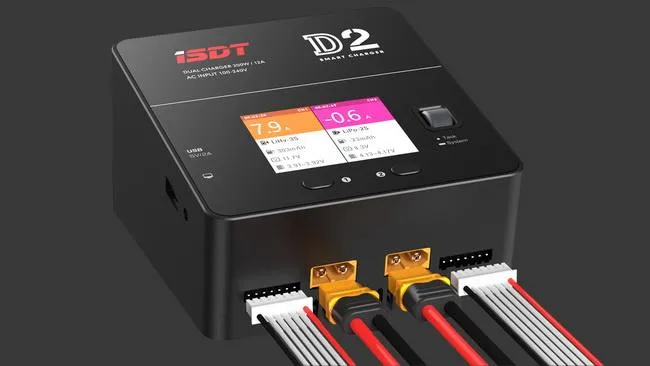

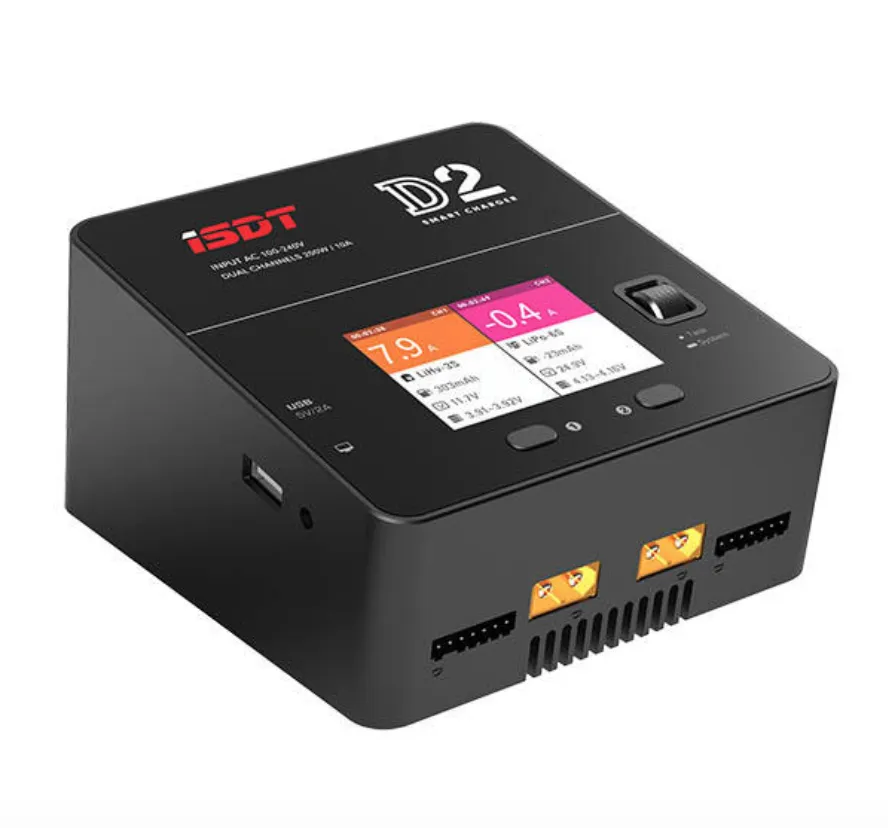

ISDT D2 MK II Smart balance charger
Wide range AC Input, 200w of dual output ports.
Dual channel output, without interference from each other
Support up to 6S balance charging&discharging with 2 output port5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products.
Wide range AC Input, Industrial level power management
Adaptive for all different voltages across the world; By using PFC circuit makes it works more stable and less interference to power grid.(SCP) Short current protection.
(OLP) Over load protection.
(OVP) Over voltage protection.
(OTP) Over Temperature protection
Unexceptionable performance on the power space ratio.
Compare with similar products, volume reduced by 345%. Power space ratio goes higher to 273Watts/LitreCarefully optimized internal structure, dual fan cooling system
High-speed efficient synchronous digital power supply technology, dual-fan High speed ball-bearing fan promotes active cooling efficiency.Specially designed for smart charging OS
Bright, colorful, easy access set-up and status display. 80% deduction of operation process. Firmware updates can be performed using a personal computer.Â
Multiple Languages
Support English, German, French, Spanish, Japanese, Traditional Chinese and Simplified Chinese. Totally localizedSpecifications
- Supported Battery Type:
- LiFe/Lilon/LiPo/LiHv (1-6S)
- NiMH/Cd(1-16S)
- Pb(1-12S)
- Display: 2.4" 320×240 IPS LCD
- Operating Temperature: 0-40°C
- Storage Temperature: -20-60°C
- Max Discharge Capacity: 5W*2
- Discharge Current: 0.1-3.0A*2
- Dimensions: 120x108x70 mm
- Charge Current: 0.1-12.0A*2
- Max Charge Capacity: 200W
- Balancing Current: 1A/cell*2
- Input Voltage: AC 100-240V
- Balance Cells: 2-6S*2
- Weight: 510g
