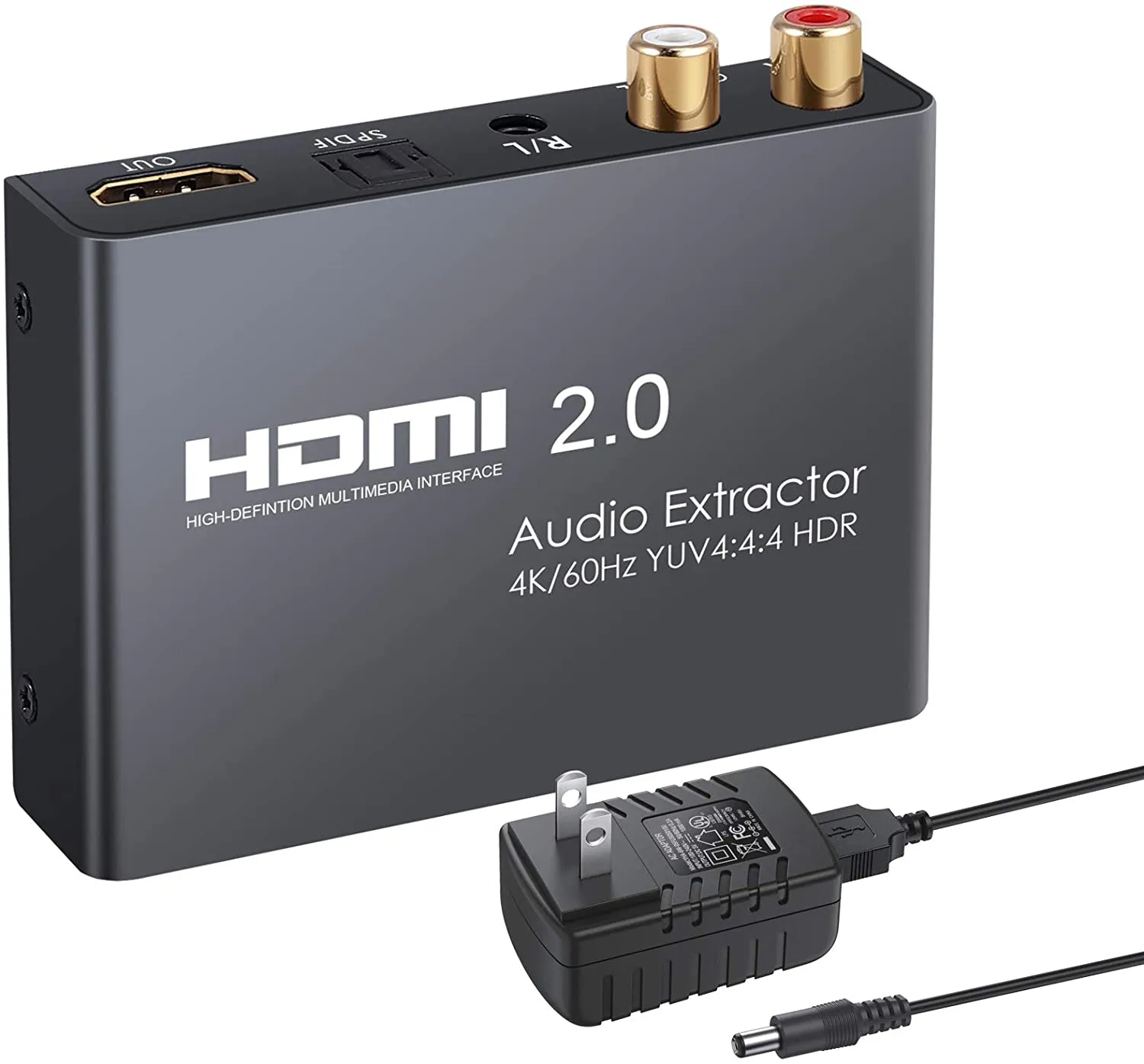

Name: New in box! ESYNIC HDMI 2.0 Audio Extractor Support 4K/60Hz YUV 4:4:4 HDR HDMI to HDMI RCA R/L SPDIF Optical 3.5mm Headphone Jack Audio Converter Suitable for Blu-ray One X PS4 Pro Laptop Projector HDTV
SKU: 61741

New in box! ESYNIC HDMI 2.0 Audio Extractor Support 4K/60Hz YUV 4:4:4 HDR HDMI to HDMI RCA R/L SPDIF Optical 3.5mm Headphone Jack Audio Converter Suitable for Blu-ray One X PS4 Pro Laptop Projector HDTV

【4K/60Hz Ultra HD】Support HDCP 2.2 and HDMI 2.0, Support HDMI Resolution Up to 4K@60Hz (YUV 4:4:4), Compatible with 4k@60/50Hz/ 4K@30Hz/ 1080p@60/ 50Hz/ 1080i/720p/ 576i/ 480p/ 480i.
【HDR Function】High Dynamic Range Feature Support for Showing More Dynamic Range and Picture Detail for a More Perfect Visual Experience in Your Home Device. (NOTE: If You Want To Experience 4K@60Hz (YUV 4:4:4) and HDR Effects, Please Use the HDMI 2.0 Certified Cables (HDMI 19 1, 26AW) To Connect Your Devices.)
【Audio Support】Optical Audio Supports LPCM 2CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Supports HDMI High Bit Rate(HBR) Audio Pass Through.

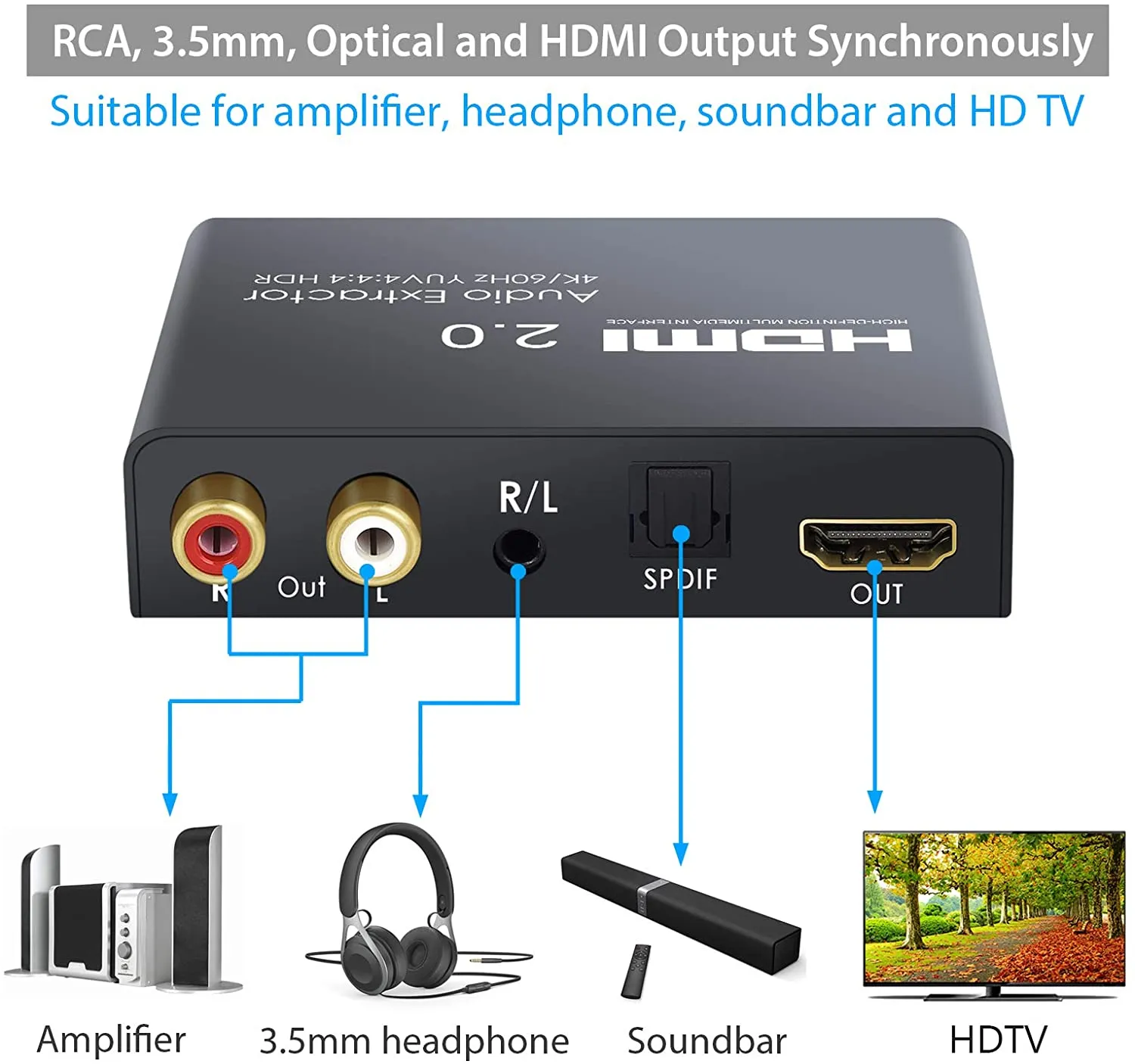

【Convenient Use】Support Audio Output Through RCA Interface and 3.5mm Headphone Jack, Easy To Connect Amplifier or Earphone.
【Wide Compatibility】Compatible with 4K/60Hz Device Such as PS4 Pro, Also Support Blu-ray Player Laptop Projector HDTV and Other Device.

Features:

HDMI 2.0b (18Gbps), HDCP 2.2 compliant
Video resolutions up to 4K@60Hz (YUV444)
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R 3.5mm headphone analog audio
Audio sample rates up to 192kHz
10bits HDR (High Dynamic Range) pass through

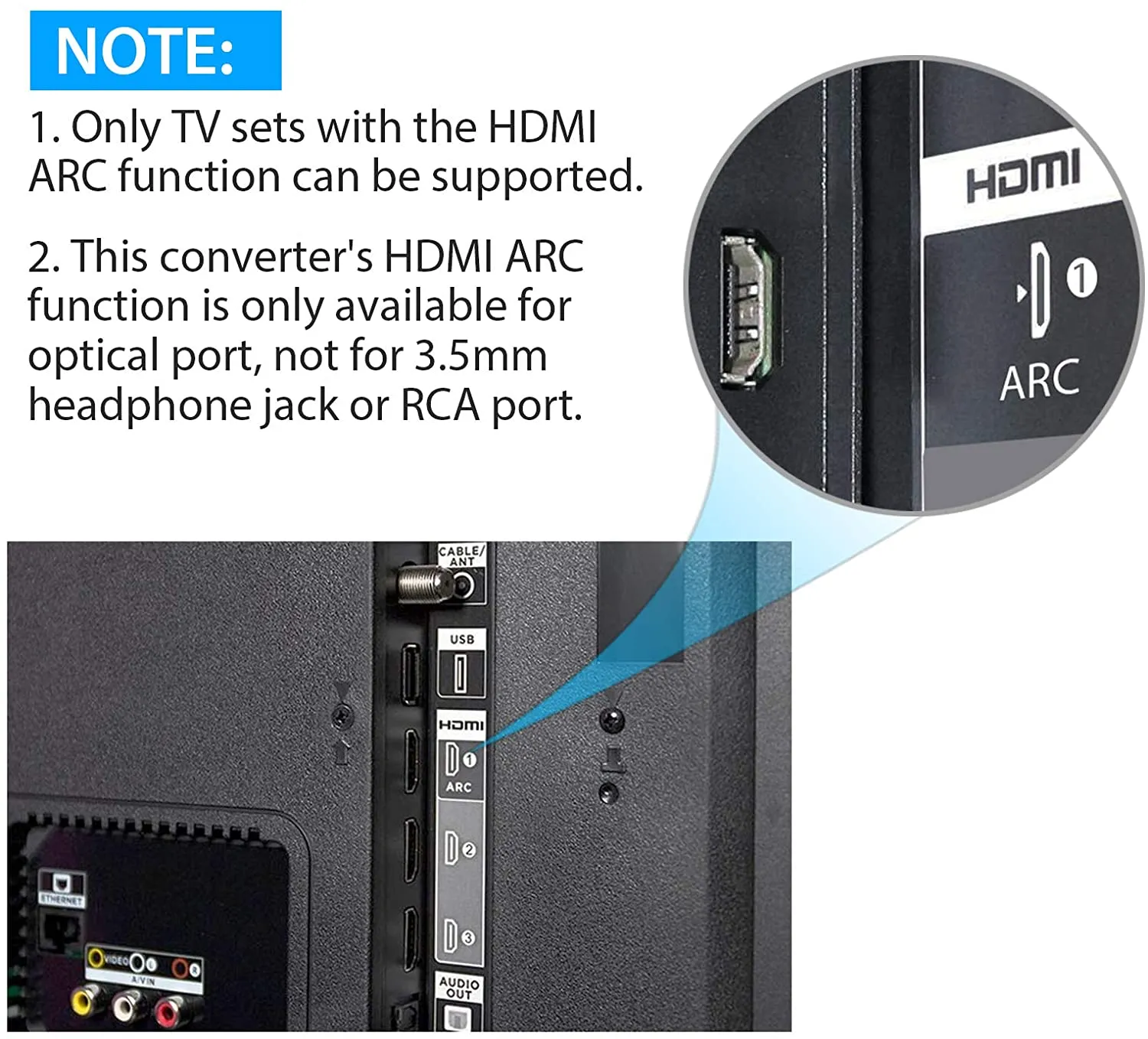

ARC Function Notes:

a. Please sure your HDTV with HDMI(ARC) Port, then connect to ARC Adapter HDMI Output Port. Your TV HDMI (ARC)--->HDMI Cable--->HDMI Audio Extractor (HDMI Output Port) --->HDMI Audio Extractor Optical Output to your audio device.
b. ARC function is only available from the Optical Port, 3.5mm headphone port or RCA port will no sound if you open the ARC.
c. Please open the ARC function on your TV and this ARC converter when you use it.

Specifications:

Suppoort HDMI HDCP Version: HDCP 2.2
HDMI Input/Output Resolution: Up to 4K/60fs
Support HDMI Video Color Format: 2160P, 10/12 bits, 24/25/30Hz, 2160p, 10/12 bits, 50/60Hz
HDMI Audio Format: DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/olby-AC3/DSD
SPDIF Digital Audio Formate: Dolby Digital（AC3）/DTS/LPCM
Input Output TMDS Signal: 0.5~1.5Vp-p(TTL)
Input Output DDC Signal: 5Vp-p(TTL)
DAC sampling frequency: 32~192 KHz
DAC bit rate: 16~24 Bit
RCA analog output (1KHz@0dB): 1V RMS
Signal to noise ratio @0dB(CC1R/ARM): ≥90dB
Distortion degree: ≤0.1%
Frequency response: 20HZ~20KHz
HDMI Input Cable Distance: ≤3m AWG26 HDMI Standard Cable
HDMI Output Cable Distance: ≤3m AWG26 HDMI Standard Cable
Max Working Current: 400mA
Power Adapter Format: AC 100V-240V 50/60HZ,DC 5V/1A
Operating Temperature Range: -10~ 55°C
Storage Temperature Range: -20~ 60°C
Case Dimension: 85×60.5×20（mm）
Weight: 124g
