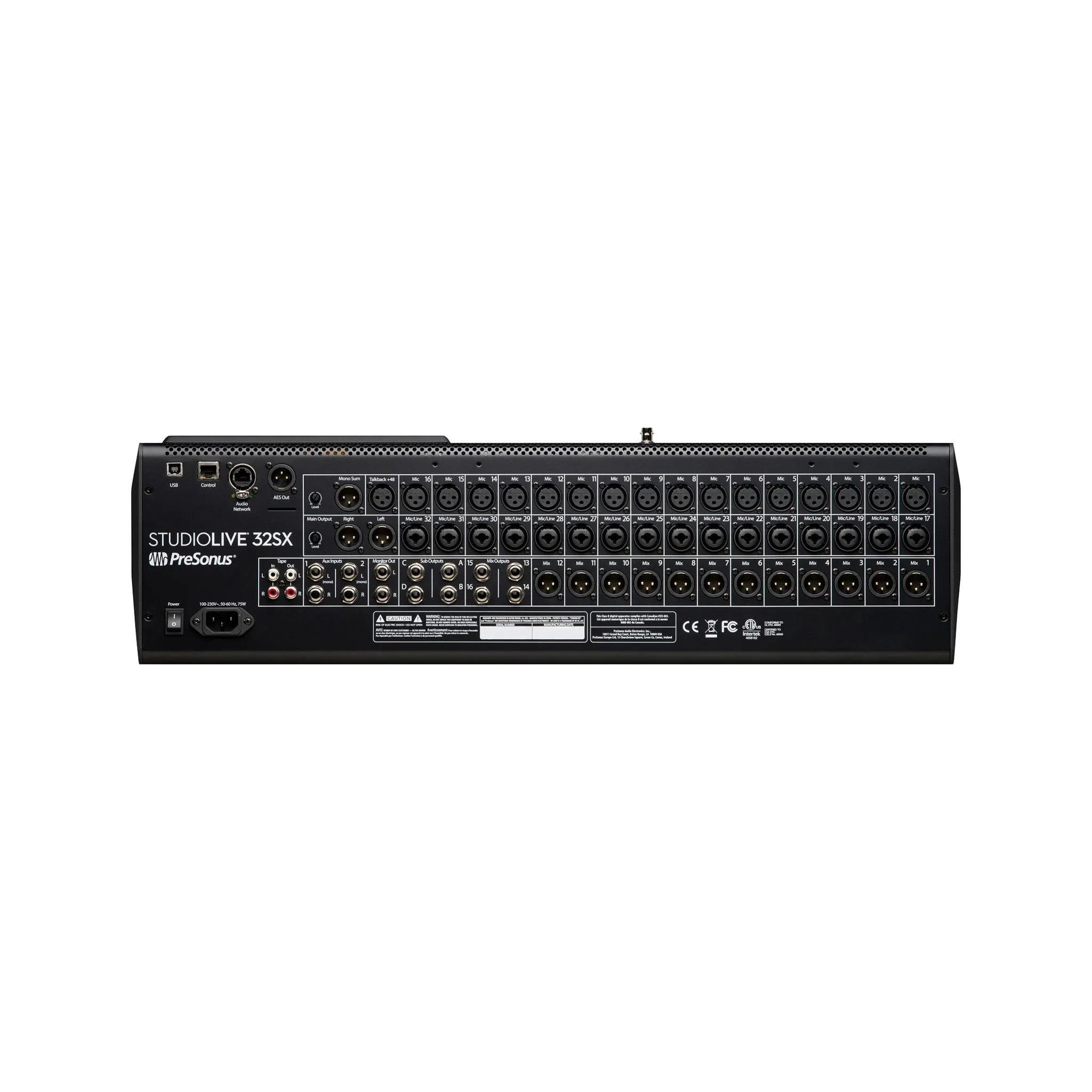

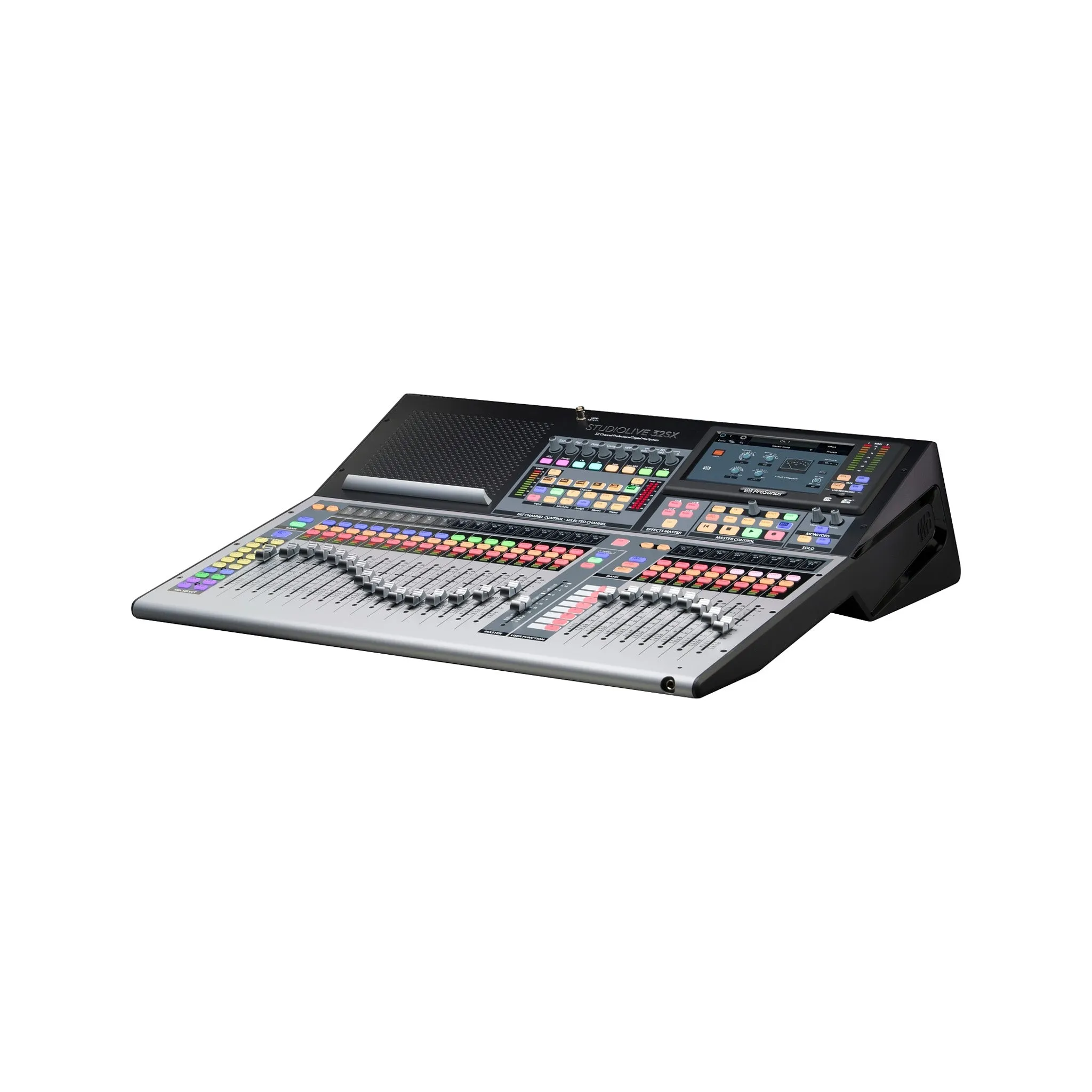

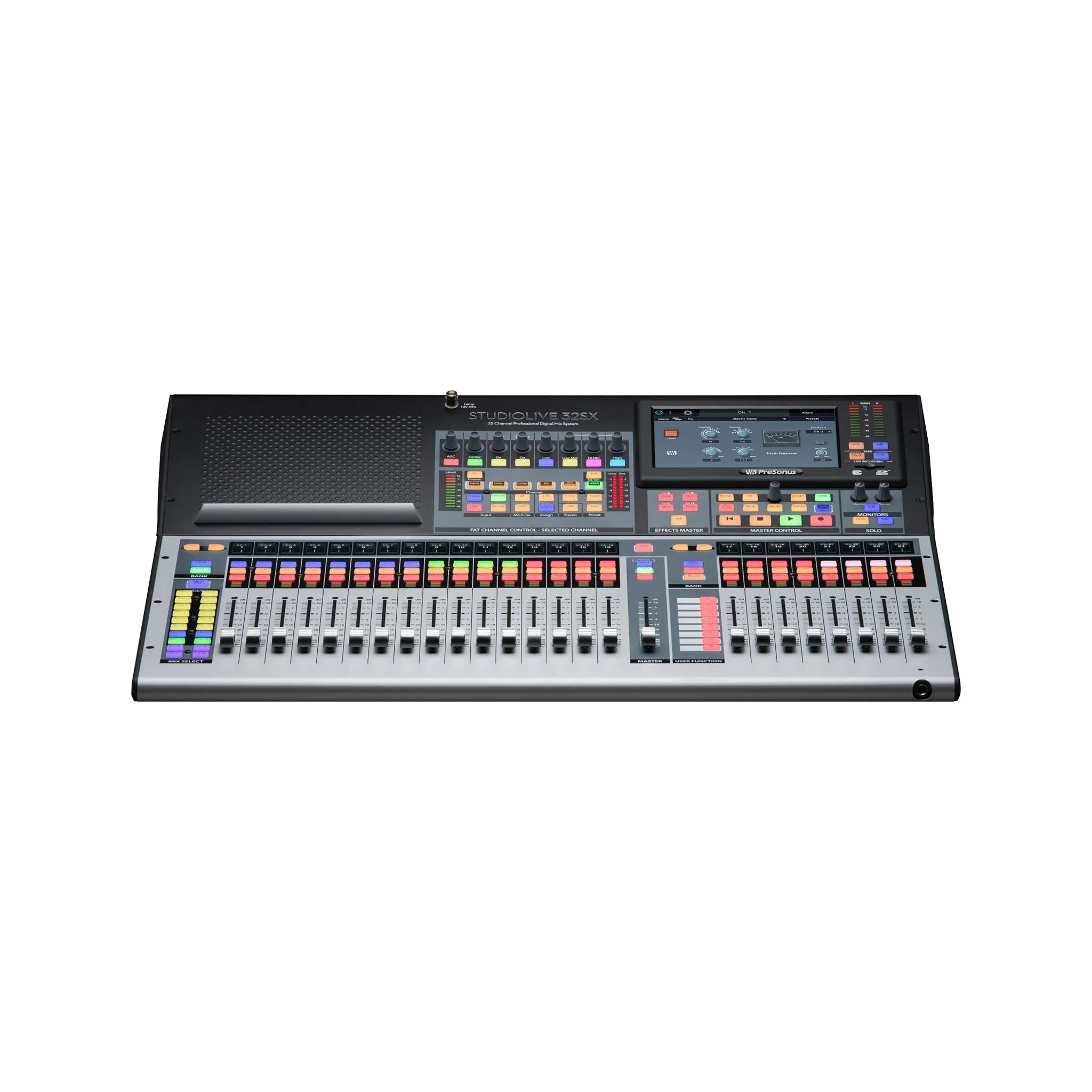

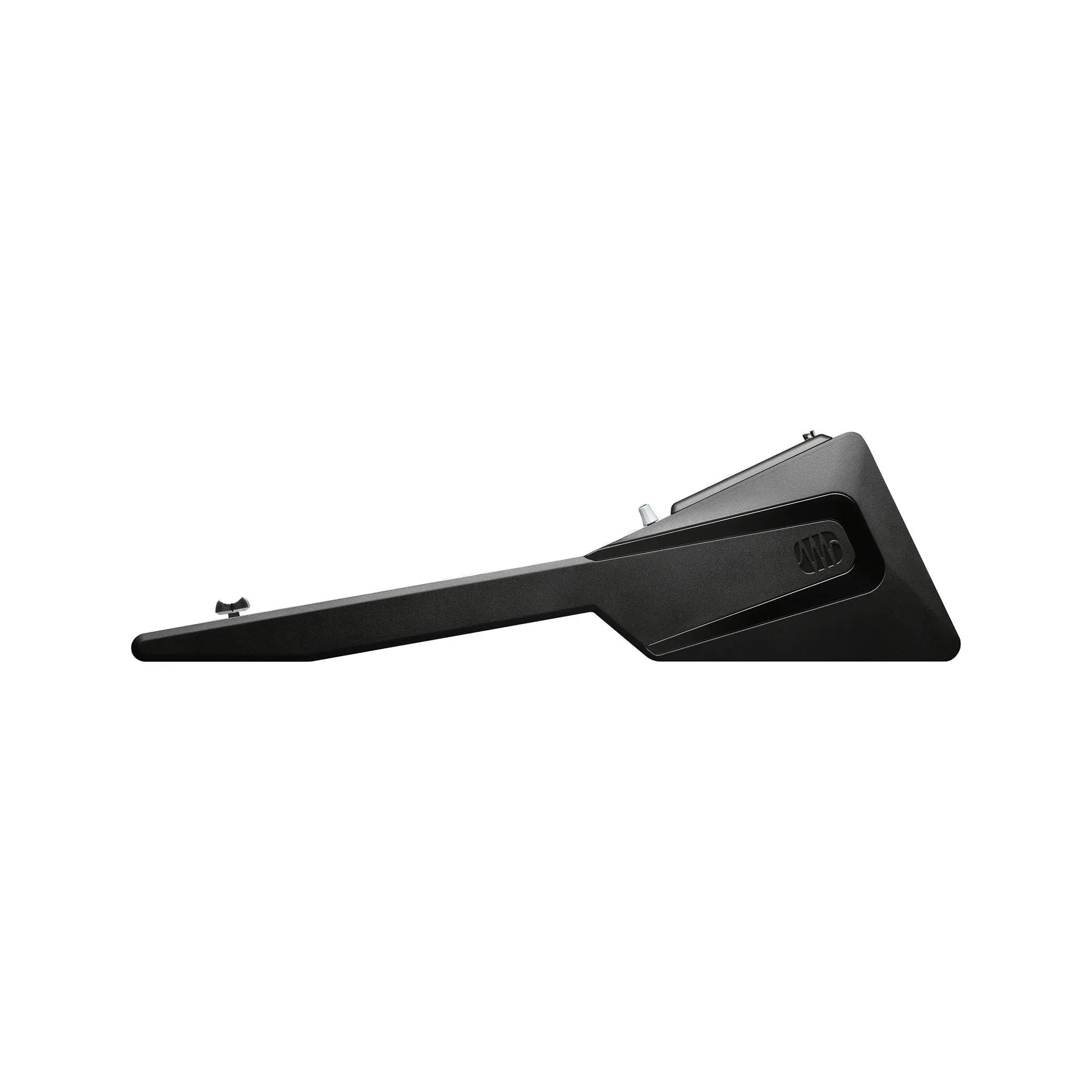

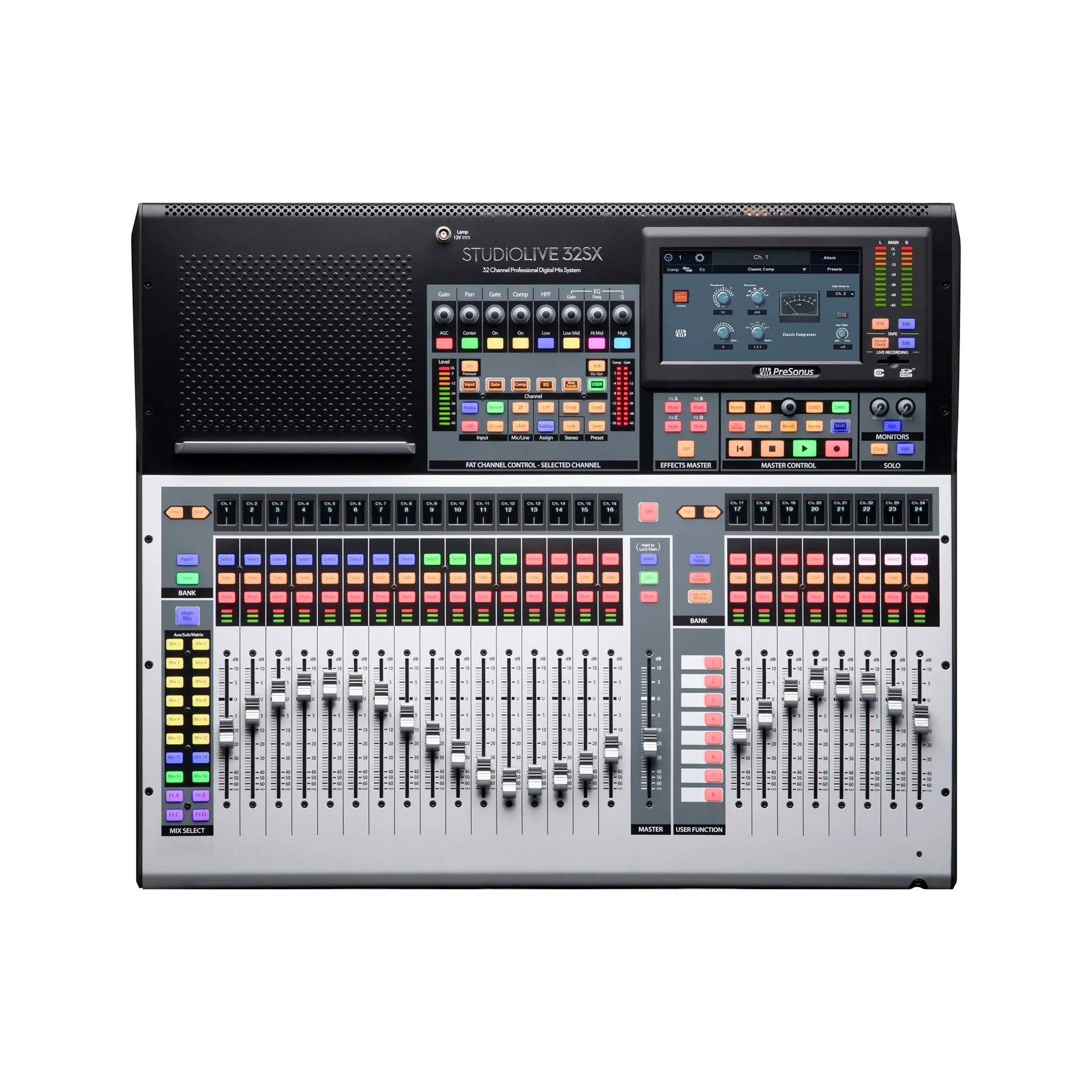

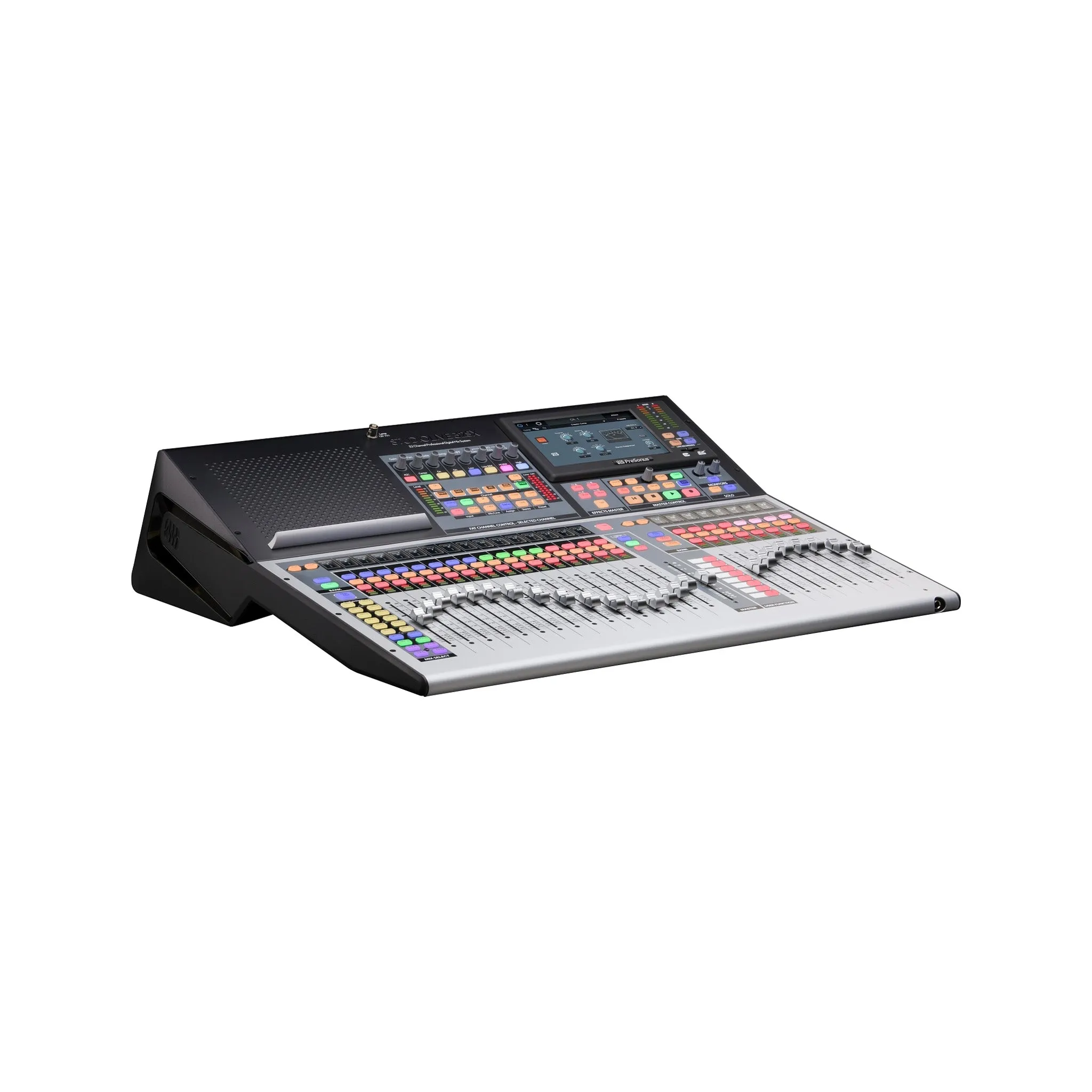

The StudioLive 32SX is a 32-channel small-format digital mixer packed into a 25-fader chassis. The split-fader workflow options let you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. Thanks to AVB, it's easily expandable - readily networking with EarMix 16M personal monitor mixers for customized onstage mixes and PreSonus NSB-series stage boxes for remote inputs. The 32SX's 16 FlexMixes can be individually configured to function as aux buses, subgroups, or matrix mixes - your routing options will border on limitless. The Fat Channel processing section employs expandable, plug-in options with vintage EQ and classic compression options on every input channel and output bus.

The 32SX also ships with PreSonus Capture® recording software, which can be run directly on your mixer or Windows or Mac computer. Record all 32 channels plus a stereo mix of your choosing via USB, to an SD Card, or both for the ultimate redundant live recording rig.

Features:

• Portable, and flexible digital console for installed sound, mobile application, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
• Fully recallable, 40-input, 32-channel digital mixing console
• Built-in AVB networking to create a complete ecosystem with PreSonus NSB stage boxes, EarMix 16M personal monitor mixers, and SW5E AVB switch
• Built-in 128-channel (64x64) USB interface - the most of any mixer
• Onboard multitrack SD Card recorder with true Virtual Soundcheck
• 16 FlexMixes (aux mixes, subgroups, or matrix mixes)
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• Complete professional solution: a suite of integrated software, including Studio One® Artist DAW and Capture®

Specifications:

• Voltage: 100-120V
• Headphone Jack: 1/4" TRS Active Stereo
• Phantom Power: 48 VDC, Switchable Per Channel (±2 VDC)
• Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Input Impedance: 1 kΩ
• Line Inputs Frequency Response: 20-20 kHz (±0.5 dBu at Unity Gain)
• Max. Headphone Output: 100 mW/ch. @ 60Ω load
• Headphone Frequency Response: 20 Hz to 20 kHz, /-0.5 dB
• Dynamic Range: ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
• Bit Depth: 24
• Supported Sample Rates: 48 kHz, 44.1 kHz
• Includes: PreSonus StudioLive Series III, 1m USB Cable, 1m CAT6 Ethernet cable, IEC Cable, StudioLive Series III Quick Start Guide
• Dimensions: 25.6" (W) x 23" (D) x 7" (H)
• Weight: 13.6 kg / 30 lbs
