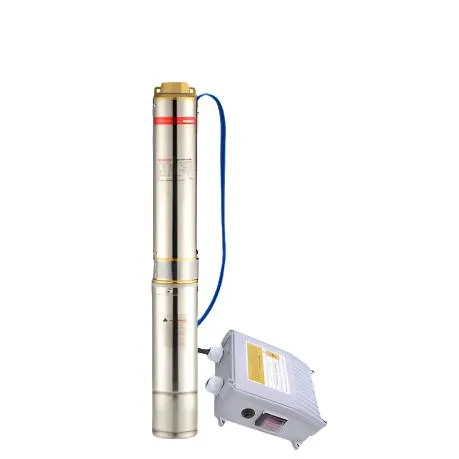

SEAKOO 4SAM2/12 is for larger than 120mm borehole diameter applications with clean water.
Max head of 88m and max flow of 55L/min.
The pump is suitable for boreholes with depth of 35-75m and deliver 40l/min @62m depth.

Operating Conditions:
Max Submersible depth: 70m.
Liquid temperature up to 40?.
Ambient temperature up to 40?.
Max. sand content: 150g/m³.

Outlet: 32mm

Material:
Pump External Casing: Stainless steel
Delivery Casing: Brass
Suction Lantern: Brass
Diffuser: Plastic PC
Impeller: Plastic POM
Shaft Stainless steel or 45# steel
Shaft Coupling Stainless steel
Motor External Casing Stainless steel
Bottom Support Stainless steel
Mechanical Seal Special seal for deep well (carbon-SIC/TC)
Seal Lubricant Oil Oil for food machinery and pharmaceutical use

Motor:
2 pole induction motor.
Single phase 220V, 50Hz;
Motor oil filled.
Insulation: Class B.
Protection: IPX8.
