General Information

Product Name

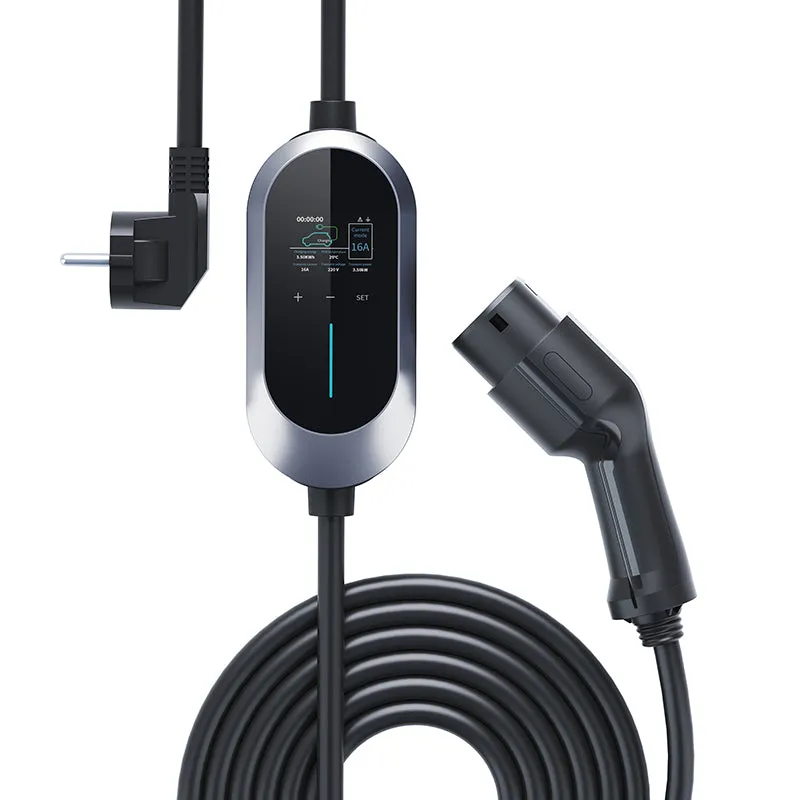

Bekey 16A type2 portable 3

Product model

BE-PEV-035KEU- 01C

Standard

IEC Standard

Certificates

CE, ROHS

Rated AC Voltage Power Input

110-240V 50/60Hz 1phase

Rated AC Power Output

3.68KW

Current Adjustable

8/12/14/16Amp

Charging Connector Type

IEC 62196-2 (Type 2/Mennekes) plug

Operating temperature

Plastic PC5V

Charging Interface

Type 2, 4.8M output

User Interface & Control

Charging Control

Plug in, touch screen to start and stop charging, then plug out

Charging Data Monitoring: Power consumption, current, voltage etc.

LCD screen

Adjusting Current

From touch screen

Screen Display

LCD Screen

LCD Indicators

LCD indicators-Power/Connect/Charging/Fault

Operational Ratings

IP Ratings

IP65, suitable for indoor and outdoor application

Storage Temperature

-40 to 75℃ (-40 to 167℉) ambient

Operating Temperature

-30 to 65℃ (-22 to 131℉) ambient

Operating Humidity

Up to 95% non-condensing

Altitude

≤2000m

Protection

Over Voltage Protection;Over Load Protection;Earth Leakage Protection;Over-temp Protection;Under Voltage Protection;Short Circuit
Protection;Ground Protection;Surge Protection

Real-time monitoring

LCD Screen

temperature monitoring

Full link temperature monitoring system;Automatic current reduction

Wallbox Mechanical

Charger Dimension

247X100.5X53 (H x W x D, mm) ; 3KG

Package Dimension

550X200X100 (H x W x D, mm) ; 3.5KG

Charging Cable Length

4.8m,7m, or Customize Length

Enclosure Material

Front-Panel: Tempered Glass; Back-cover: Metal Plate;Enclosure: Plastic PC5V

OEM ODM Service

Warranty

We offer 1 year warranty to our product.

Quality Control system

Our products are produced in a strict quality control system and the defective rate will be less than 0.2%.Secondly, during the
guarantee period, we will send new power station with a new order for a small quantity.For defective batch products, we will
repair them and resend them to you or we can discuss the solution Including re-call according to real situation.

OEM ODM Service

Our products offer a wide range of customization options, including parameters, appearance, performance, power, battery capacity,
voltage, PCB, software, color, size, APP, logo, and packaging.
