6061 Alloy
Frame
Hi-Tensile
Unicrown Fork
Tektro Hydraulic
Brakes
7 Speed Shimano
Drivetrain

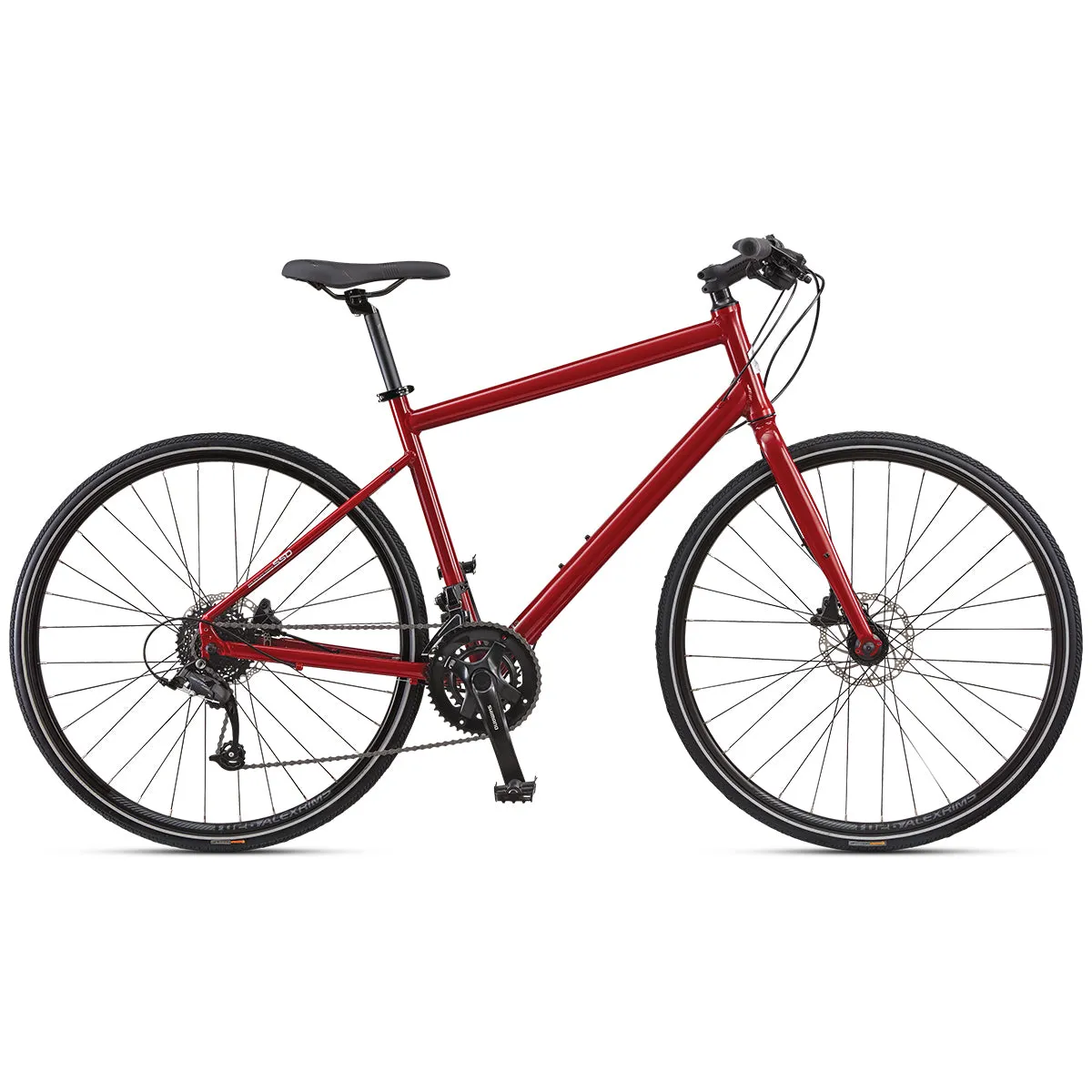

Lightweight 6061 Alloy Frame
Go faster for less effort with a stiff, lightweight alloy frame.
Hi-Tensile Unicrown Fork
The unicrown fork is significantly lighter than most suspension forks, offering more responsive steering and making the bike easier to lift.
Shimano 7-Speed Drivetrain
The 7 Speed Shimano drivetrain provides smooth and reliable gear shifting that will allow you to adapt to any incline.
Strong Stopping Power
Experience smooth and consistent braking with the Tektro hydraulic brakes. These high-performance brakes are reliable and built to last.
The Blueprints
An awesome package with the following components:
- A. 6061 Alloy Frame
- B. Hi-Tensile Unicrown Fork
- C. Tektro Hydraulic Brakes
- D. Shimano 7-Speed Drivetrain
- E. Touring with SL cover
- F. Kenda Kwick Tendril
Where to ride?
Specification
Technical Specifications
| Frame | Size Specific Design 6061 alloy with fast back rear triangle, flat mount disc brake mounts, internal cable routing, hydro-formed top and down tube, taper gauge “S” bend stays, kickstand mount, replaceable derailleur hanger and fender/rack eyelets |
|---|---|
| Fork | Hi-Ten straight blade unicrown with flat mount disc brake mounts, low-rider carrier mounts, forged dropouts and 2 fender eyelets |
| Headset | VP Integrated threadless, 1 1/8” |
| Wheels | Alex TD26 alloy double wall rims, 36H, Modus disc alloy hubs w/QR & 14g black electroplated spokes |
| Tires | Kenda Kwick Tendril with anti-puncture protection and reflective sidewalls, 700 x 35c |
| Derailleurs | Shimano Acera RD-M360 rear and Shimano FD-TY710-2 front |
| Shift levers | Shimano Rapidfire SL-M315, 16-speed |
| Chain | KMC Z8 |
| Cassette | Shimano HG31 8-speed, 11-34T |
| Crankset | Shimano FC-TY501-2, 46/30, 170mm (15-17”), 175mm (19-23”) |
| BB Set | VP sealed cartridge, 68 x 122.5mm |
| Pedals | Platform style, steel cage/resin body |
|---|---|
| Brakeset | Tektro HD-M280/281 hydraulic Flat Mount disc brakes with 160mm rotors and Tektro brake levers. 15-17” M281 (83mm reach); 19-23” M280 (88mm reach) |
| Handlebar | Flat bar, 6061 T-6 alloy, 31.8 x 10 ? sweep x 600mm (15- 17”) 620mm (19-23”) |
| Stem | Road 3D forged alloy, 10 ? rise x 90mm (15-17”), 110mm (19-23”) |
| Grips | Anatomic double density kraton |
| Seat Post | alloy micro-adjust, 27.2 x 350mm, alloy clamp with QR seatpin |
| Saddle | Touring with SL cover |
| Sizes | 15”, 17”, 19”, 21”, 23” |
| Color | Red |
| Weight | Approx. 12.2kg |
Bike Size Guide
| Frame Size Number | 15" | 17" | 19" | 21" | 23" |
| Wheel Size | 26" | 26" | 26" | 26" | 26" |
| A - Seat Tube Angle | 73° | 73° | 73° | 73° | 73° |
| B - Head Tube Length | 4.76 / 121 | 5.79 / 147 | 6.81 / 173 | 7.68 / 195 | 8.62 / 219 |
| C - Effective Tube Top | 22.40 / 569 | 22.44 / 570 | 22.72 / 577 | 23.19 / 589 | 23.66 / 601 |
| D - Chainstay Length | 17.32 / 440 | 17.32 / 440 | 17.52 / 445 | 17.52 / 445 | 17.52 / 445 |
| E - Wheelbase | 41.26 / 1048 | 41.26 / 1048 | 41.85 / 1063 | 41.89 / 1064 | 42.36 / 1076 |
| F - Standover | 28.58 / 726 | 29.80 / 757 | 31.42 / 798 | 32.91 / 836 | 34.13 / 867 |
| Frame Size Number | 21" | 23" |
| Wheel Size | 26" | 26" |
| A - Seat Tube Angle | 73° | 73° |
| B - Head Tube Length | 7.68 / 195 | 8.62 / 219 |
| C - Effective Tube Top | 23.19 / 589 | 23.66 / 601 |
| D - Chainstay Length | 17.52 / 445 | 17.52 / 445 |
| E - Wheelbase | 41.89 / 1064 | 42.36 / 1076 |
| F - Standover | 32.91 / 836 | 34.13 / 867 |
