Overview

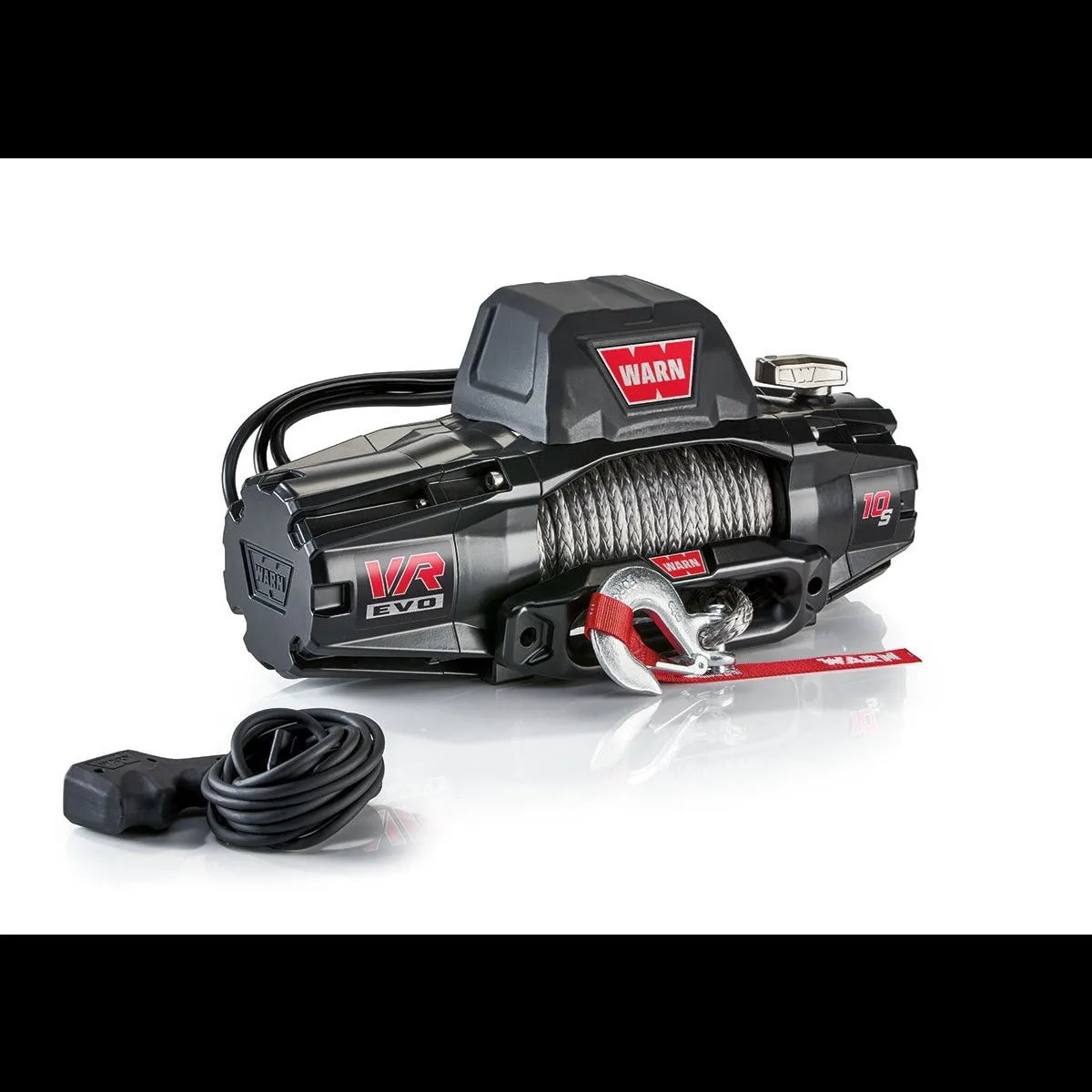

With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.
- A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
- IP68-rated waterproof winch construction keeps the elements out
- High-performance Albright contactor delivers maximum reliability
- Control packs can be relocated for low-profile installations
- Durable, one-piece cast-aluminum tie-plate for added strength and durability
- Wired remote AND wireless phone options for ease of use and versatility
- Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications
TYPE Electric RECOMMENDED USE Vehicle Recovery MOUNT TYPE Vehicle Mount VOLTAGE 12 Volt DC ELECTRICAL CONTROL TYPE Albright Contactor MOTOR TYPE Series Wound DRIVE GEAR TYPE 3-Stage Planetary GEAR REDUCTION RATIO 218:1 FREE SPOOLING Yes BRAKE TYPE Spring LINE DIAMETER (IN) 3/8 Inch LINE LENGTH (FT) 90 LINE MATERIAL Synthetic FAIRLEAD TYPE Hawse REMOTE TYPE plug in remote with wireless phone capability MOUNTING HOLE QUANTITY 4 MOUNTING PATTERN LENGTH (IN) 10 Inch MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch INCLUDES MOUNTING HARDWARE Yes COLOR Black MAX LINE PULL/ LINE SPEED 1000 pound / 5.2 feet per minute MAX AMP DRAW/ LINE PULL 358 Amps / 1000 pounds DRUM MATERIAL Steel
