Overview
• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Wired remote AND wireless phone options for ease of use and versatility
• Limited lifetime warranty for mechanical parts and 7 years on the electrical
Specifications

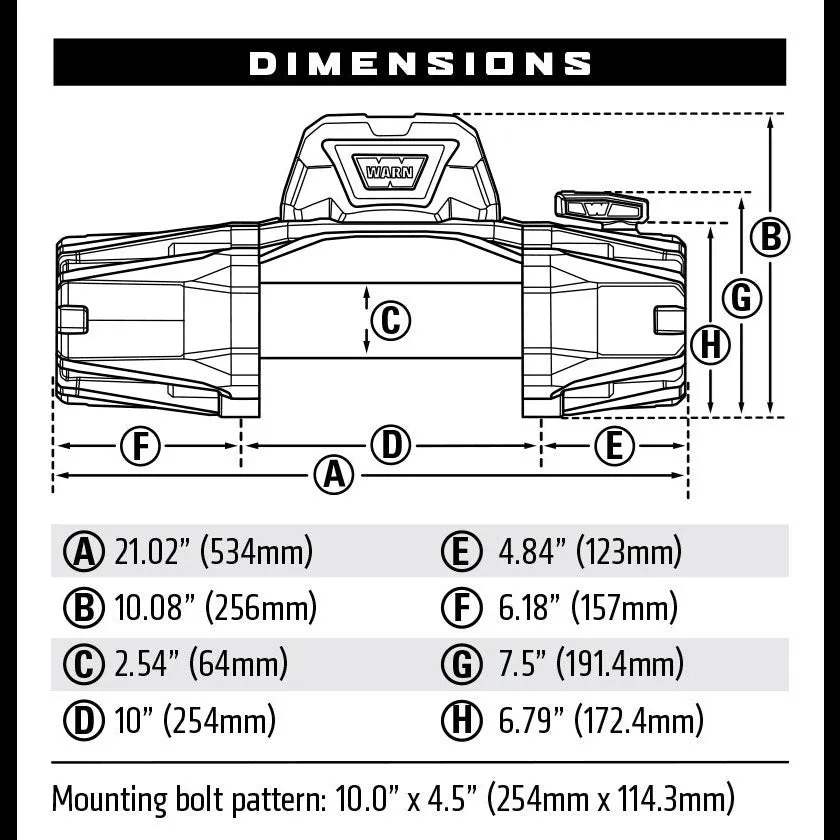

TYPE Electric RECOMMENDED USE Vehicle Recovery MOUNTING LOCATION Vehicle Mounted VOLTAGE 12 Volt DC ELECTRICAL CONTROL TYPE Albright Contactor MOTOR TYPE Series Wound DRIVE GEAR TYPE 3-Stage Planetary GEAR REDUCTION RATIO 234:1 FREE SPOOLING Yes BRAKE TYPE Spring LINE DIAMETER (IN) 3/8 Inch LINE MATERIAL Synthetic LENGTH (FT) 90 FAIRLEAD TYPE Hawse REMOTE TYPE Plug in remote with wireless phone capability MOUNTING HOLE QUANTITY 4 MOUNTING PATTERN LENGTH (IN) 10 Inch MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch INCLUDES MOUNTING HARDWARE Yes COLOR Black DRUM MATERIAL Steel MAX LINE PULL/ LINE SPEED 12,000 pounds / 4.0 feet per minute MAX AMP DRAW/ LINE PULL 396 Amps / 12,000 pounds
