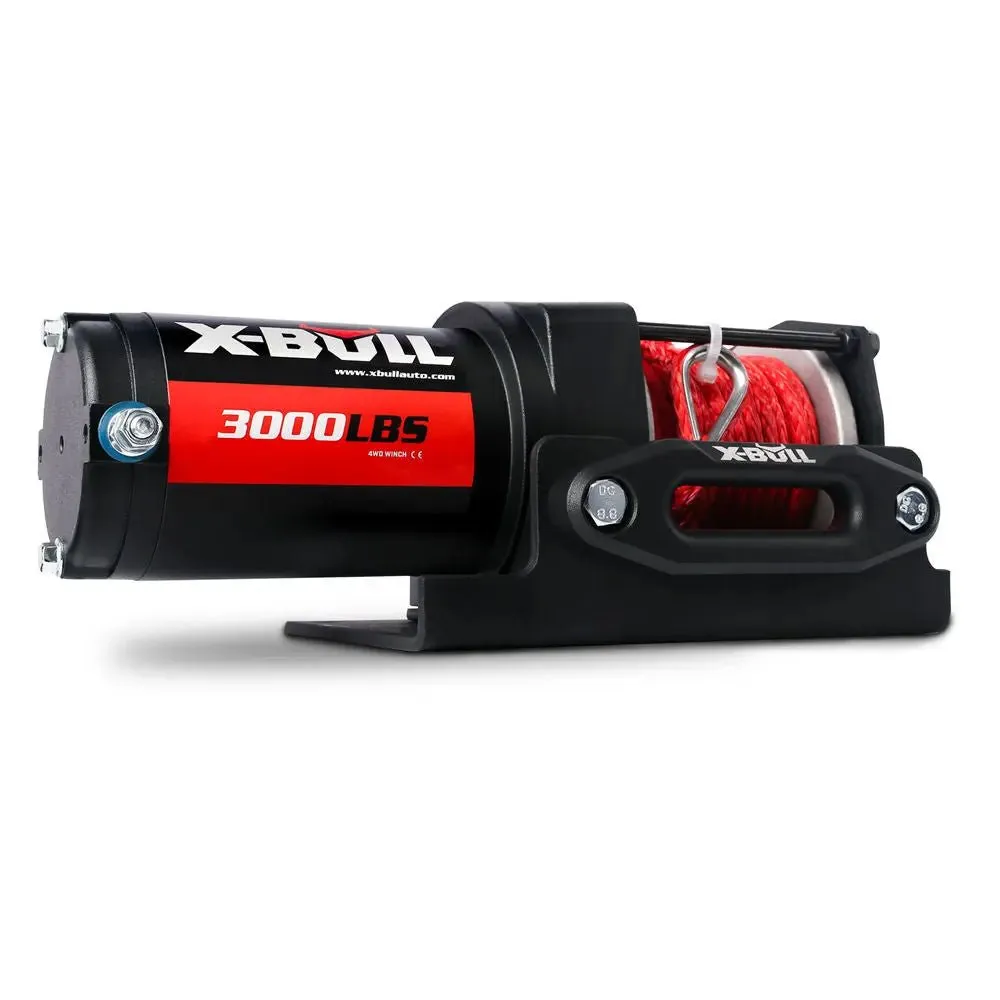

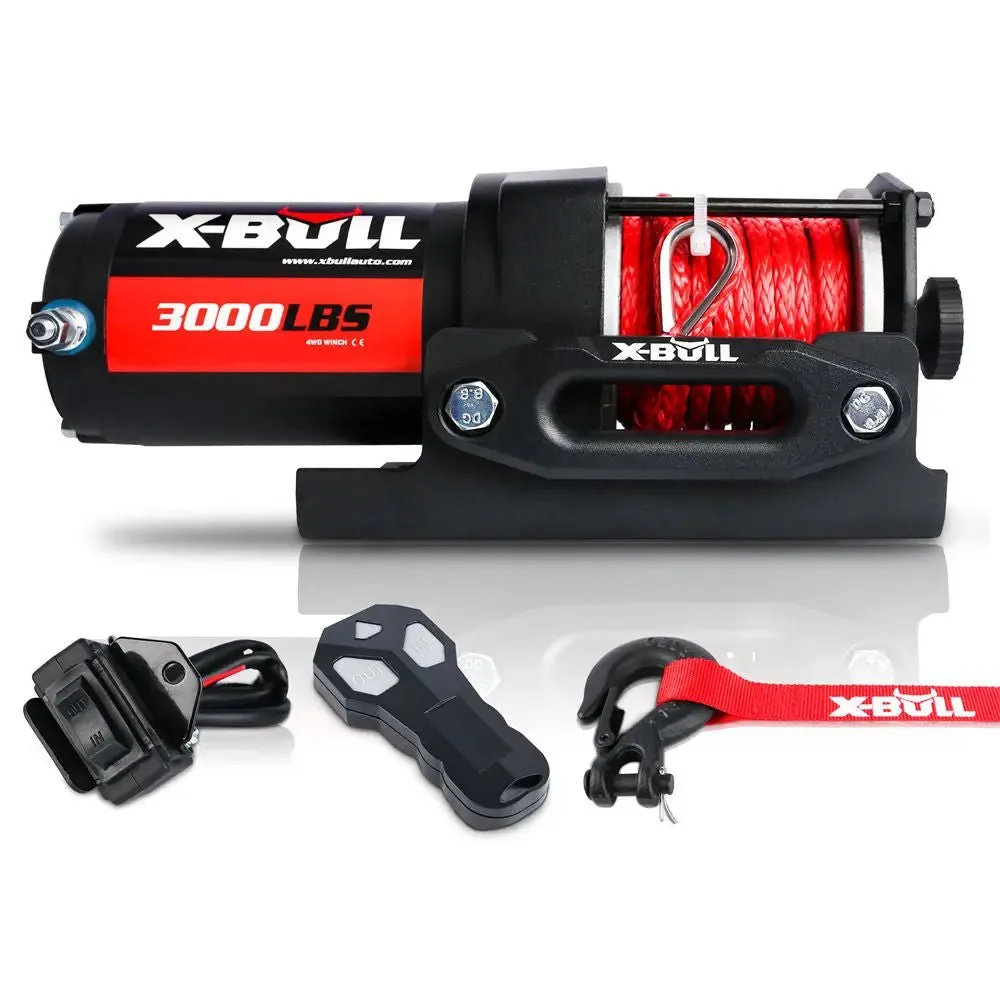

The X-BULL 3000lbs is one of our new X-BULL high-efficiency winches for all offroad and life-loving customers in 2021. Over the past few years, we document the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one.

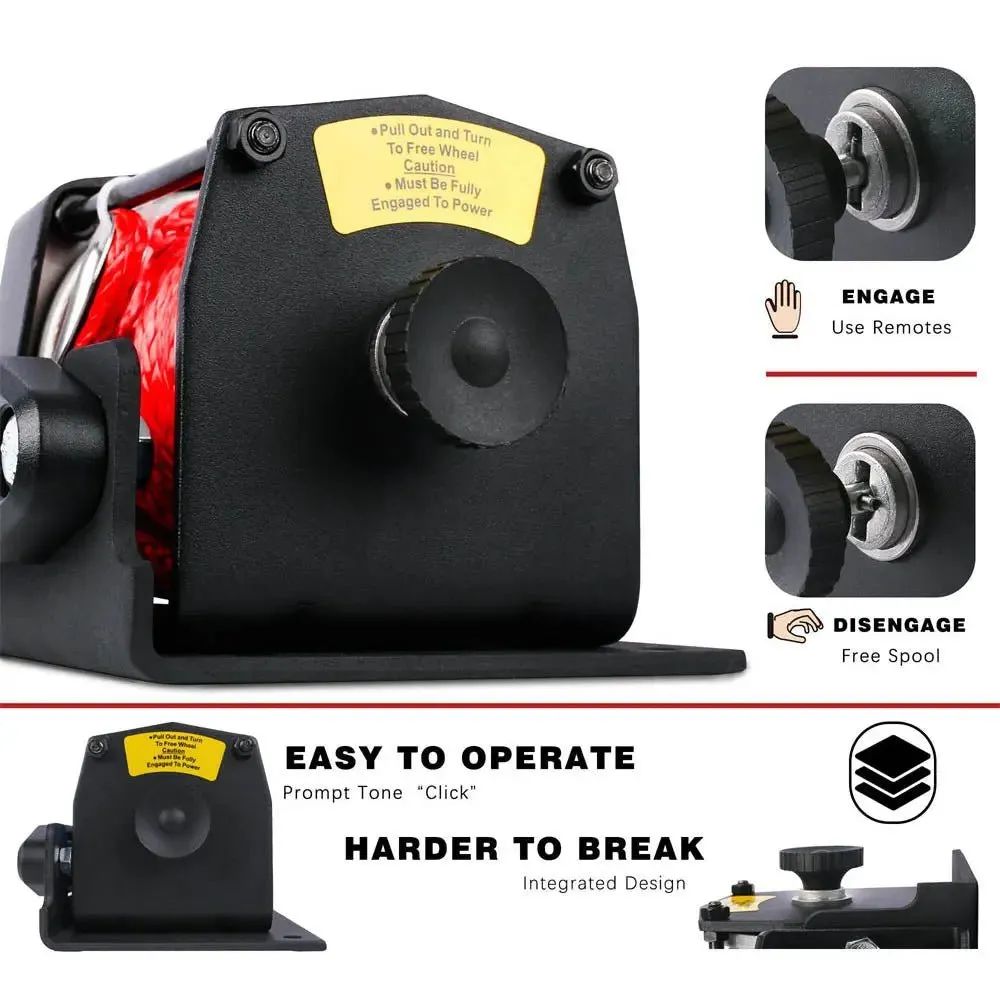

We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.
SPECIFICATIONS
| Rated Line Pull | 3000 lbs (1361 kg) |

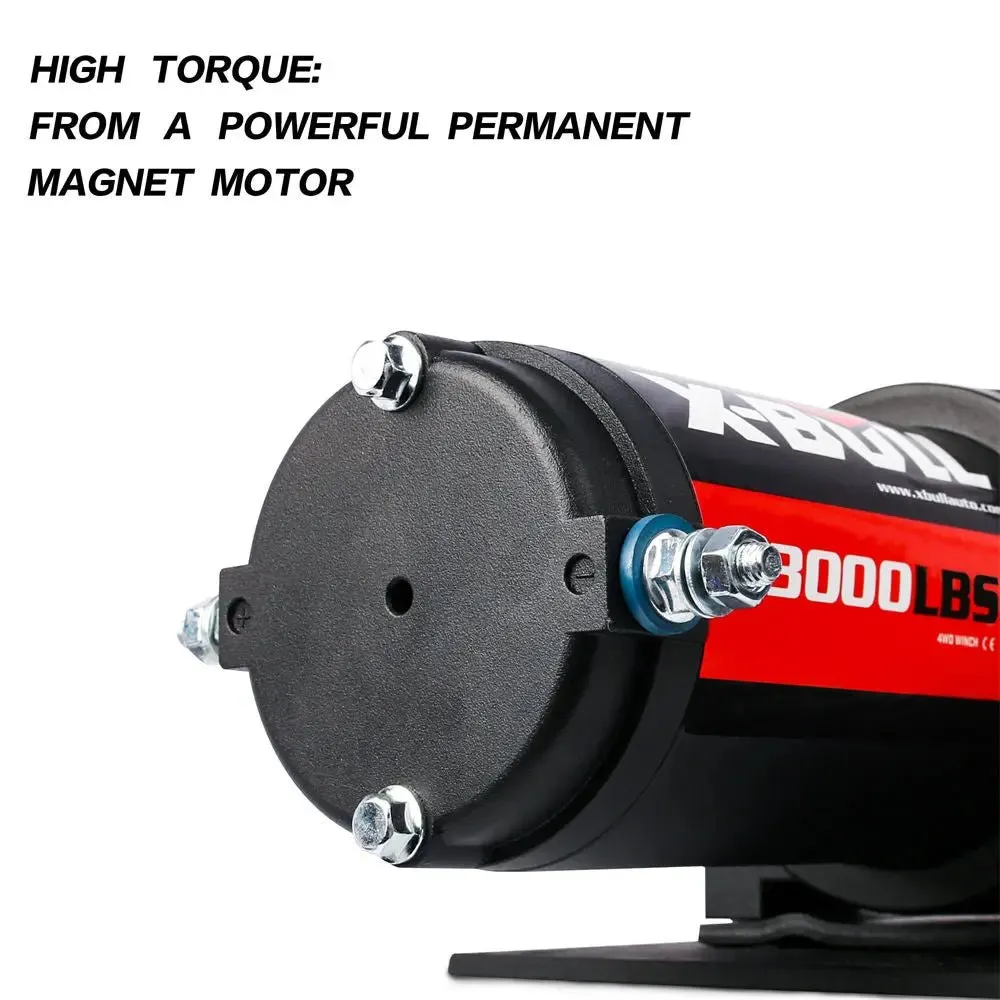

| Motor | 1.3 HP Permanent Magnet, Pure Copper |
| Gear Train | 3-Stage Planetary |
| Gear Reduction Ratio | 153:1 |

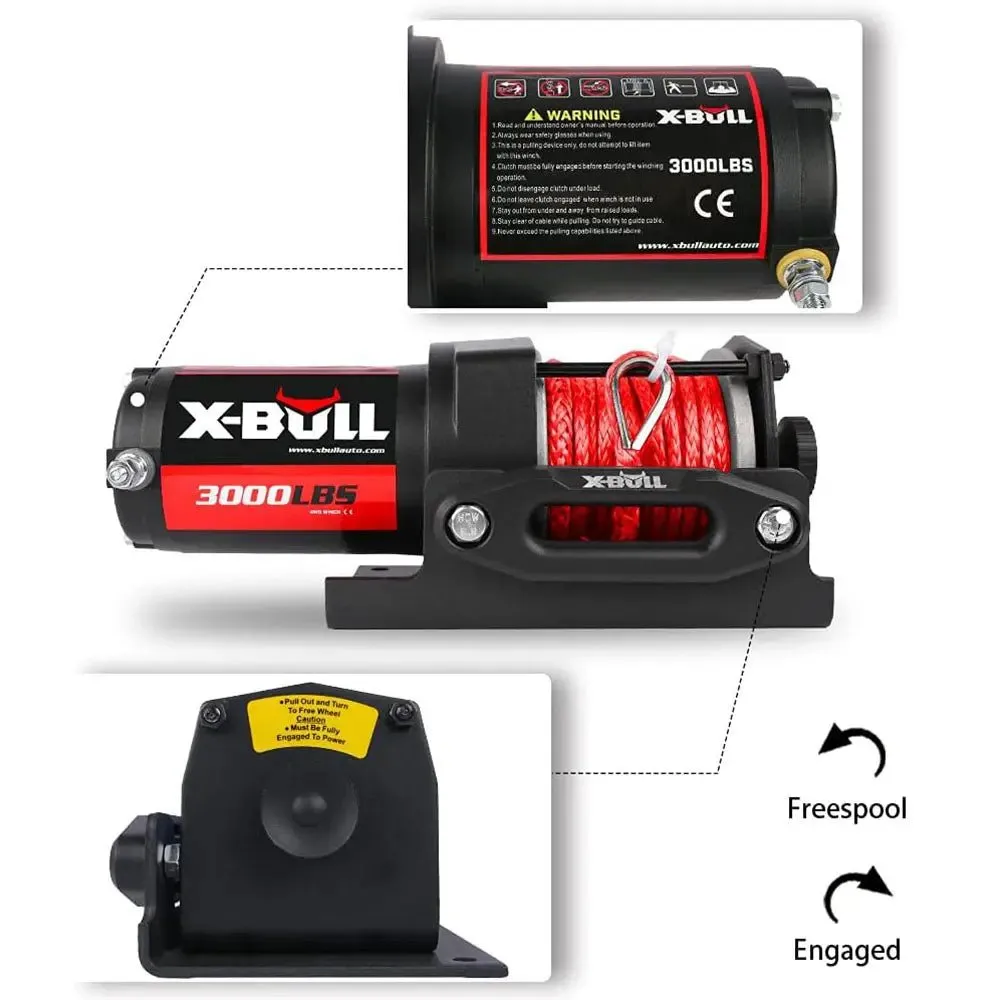

| Brake | Auto. Load Holding Mechanical |
| Control | Wireless Remote Control Wire Remote Control |
| Battery | 12V DC, Minimum 12Ah |
| Battery Cables | 6 Gauge, 5.6' (1.7 m) |
| Solenoid Cables | 6 Gauge, 1' (0.3 m) |
| Fairlead | Aluminium Hawse Fairlead |
| Cable Type | Synthetic Rope |

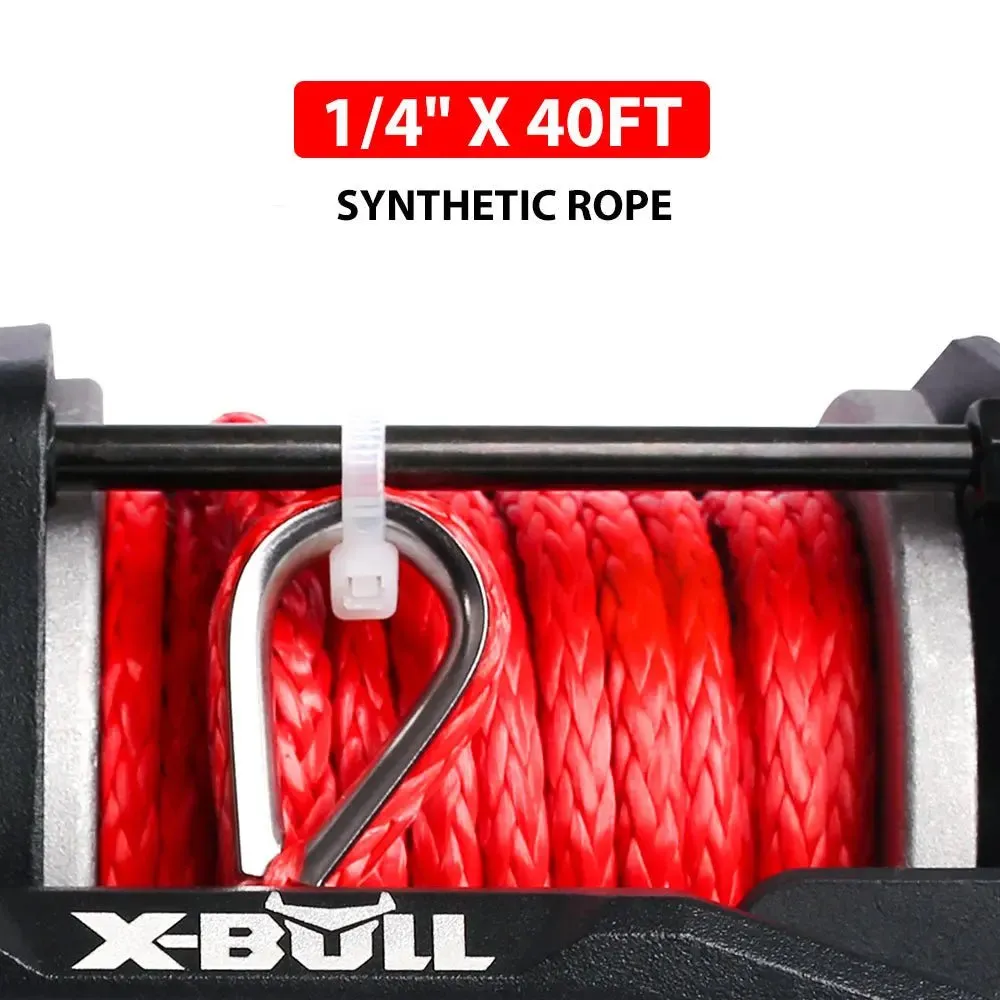

| Cable Size (D x L) | 1/4" X 40' (6.5 mm X 12.1 m) |

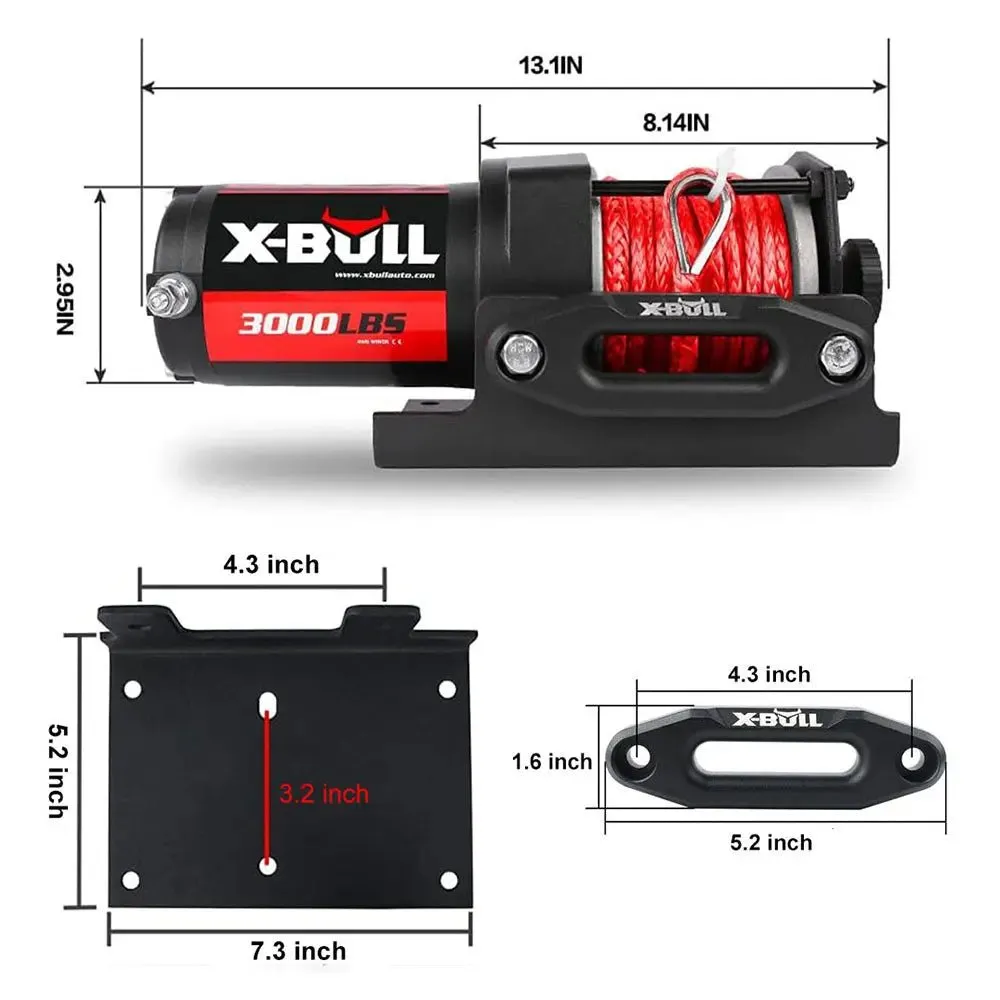

| Overall Dimensions (L x W x H) | 11.4" X 3.9" X 4.3" (290 mm X 100 mm X 110 mm) |
| Drum Size (D x L) | 1.3" x 2.8" (32 mm X 72 mm) |
| Bolt Pattern | 3.15" (80 mm) |
| Weight | 15.00 lbs (6.80 kg) |
| Waterproof Rating | IP66 |
| Line Speed (Max Line Pull) | 3.3 fpm (1.0 mpm) |
| Amp Draw (Max Line Pull) | 121 (@ 12V) |
| Application | Utility/Trailer/ATV/UTV/BOAT |

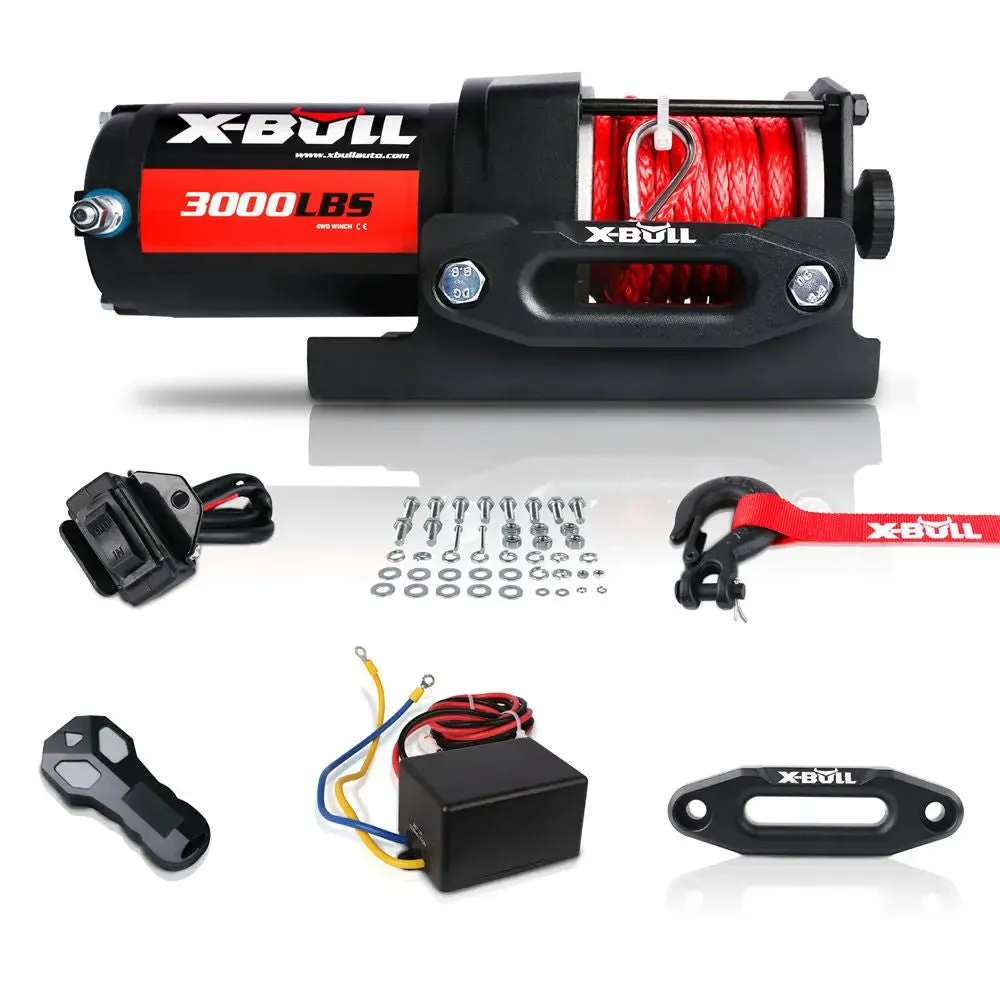

IN THE BOX
- 1 X 3000 LBS Winch
- 1 X Winch Mounting Plate
- 1 X Wire Remote Control

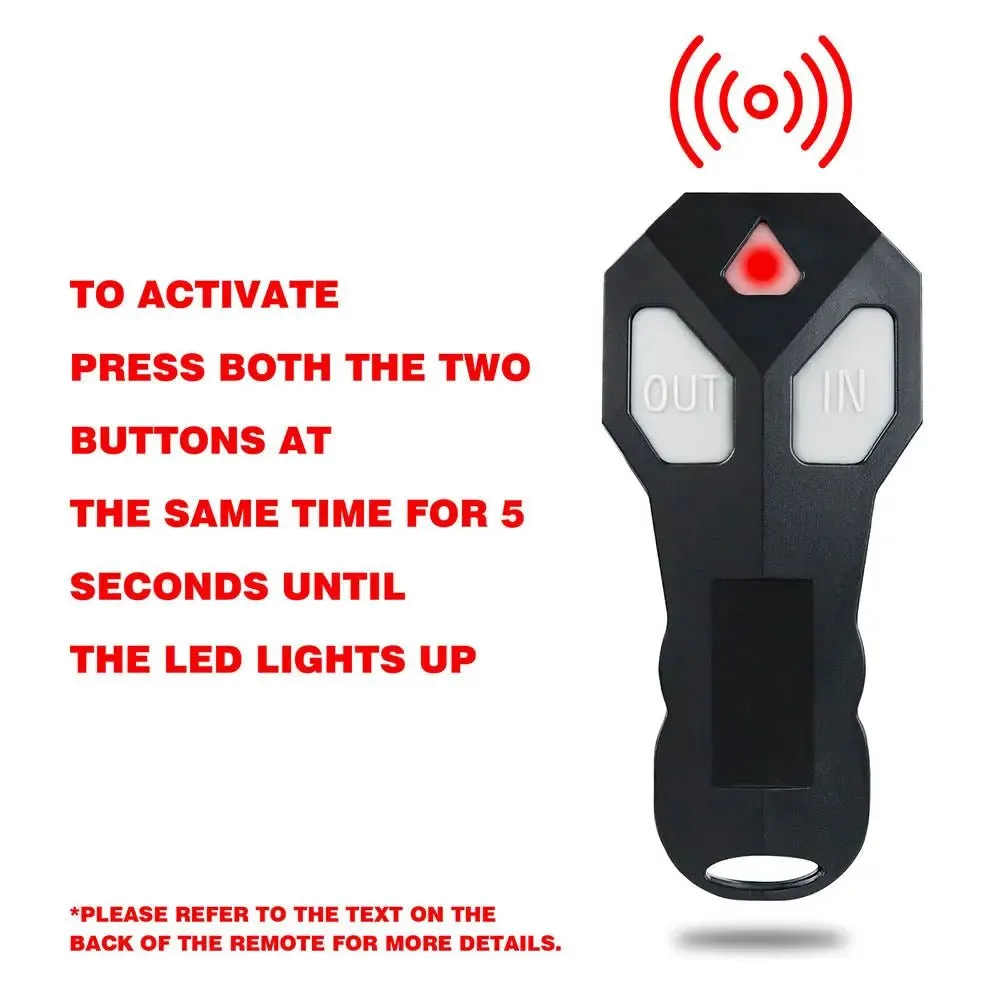

- 1 X Wireless Remote Control
- 1 X Aluminium Hawse Fairlead

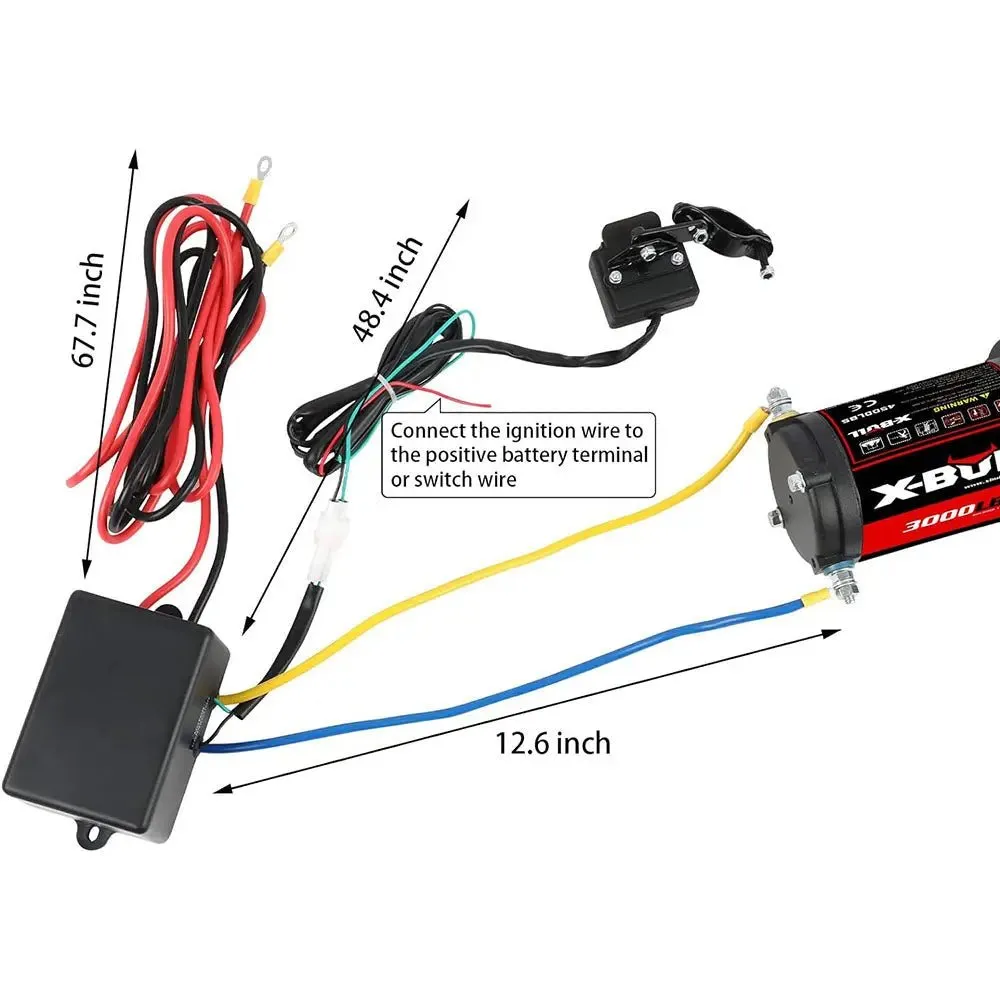

- 1 X Controller (Solenoid Receiver)
- 4 X Solenoid Cables
- 1 X Clevis Hook
- 1 X Set of Bolts
- 1 X User Manual
