SPECIFICATIONS

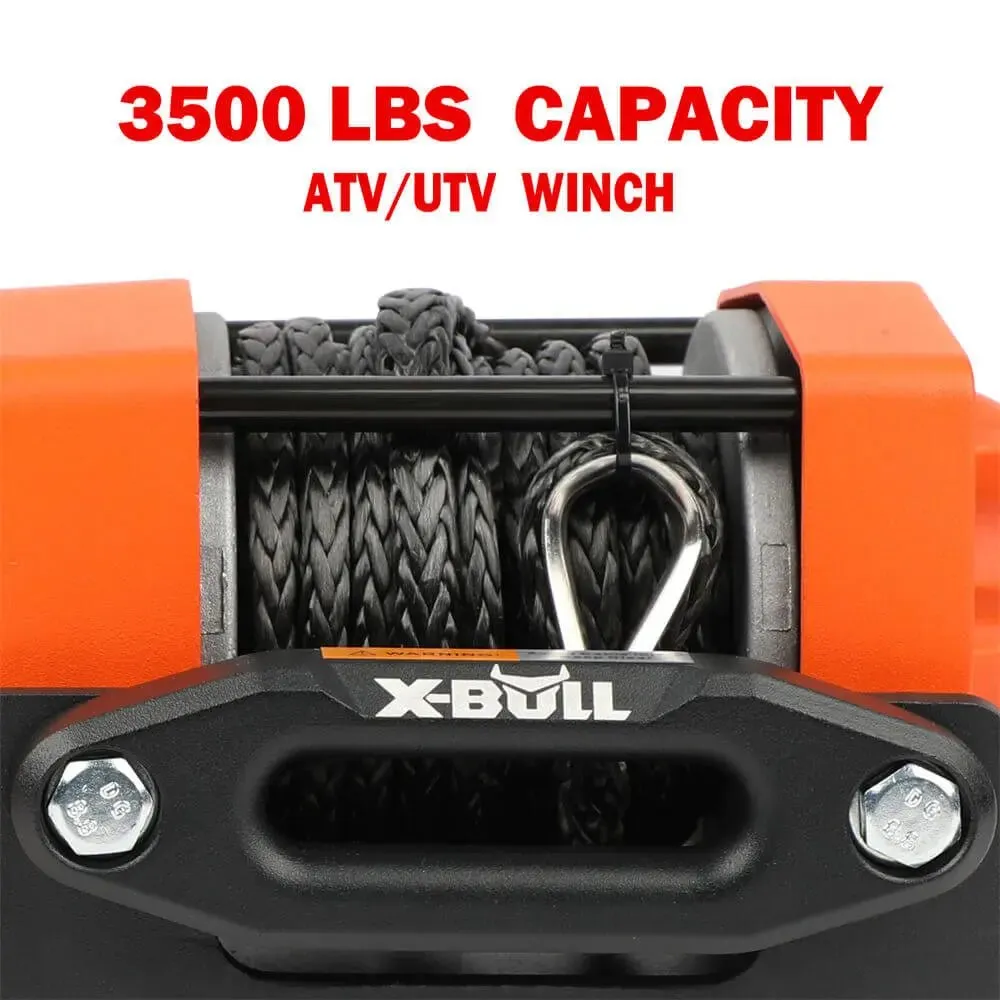

| Rated Line Pull | 3500 lbs (1588 kg) |
| Motor | 1.9 HP Permanent Magnet, Pure Copper |
| Gear Train | 3-Stage Planetary |
| Gear Reduction Ratio | 136:1 |
| Brake | Auto. Load Holding Mechanical |
| Control | Wireless Remote Control Wire Remote Control |
| Battery | 12V DC, Minimum 12Ah |
| Fairlead | Aluminium Hawse Fairlead |
| Cable Type | Synthetic Rope |
| Cable Size (D x L) | 1/4" X 50' (6.3 mm X 15.2 m) |

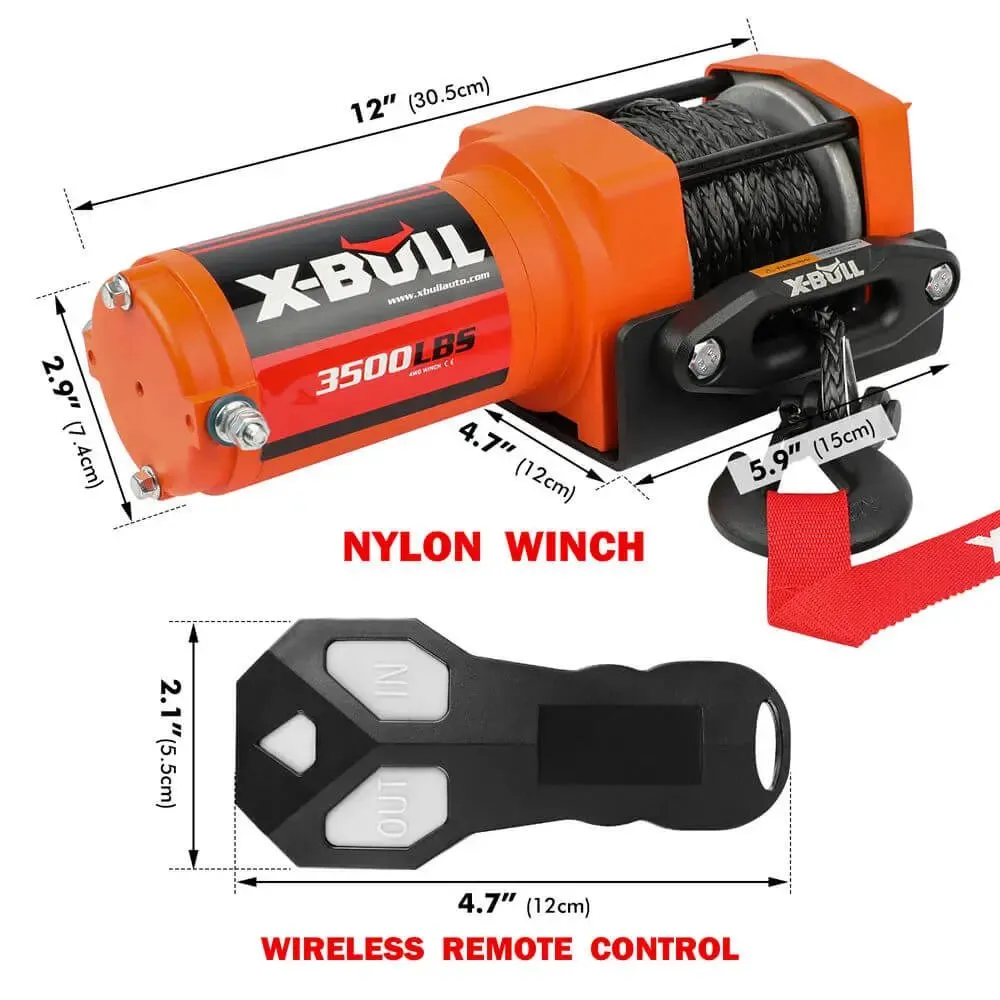

| Overall Dimensions (L x W x H) | 12" X 4.7" X 4.3" (305 mm X 120 mm X 110 mm) |
| Weight | 14.60 lbs (6.62 kg) |
| Waterproof Rating | IP66 |

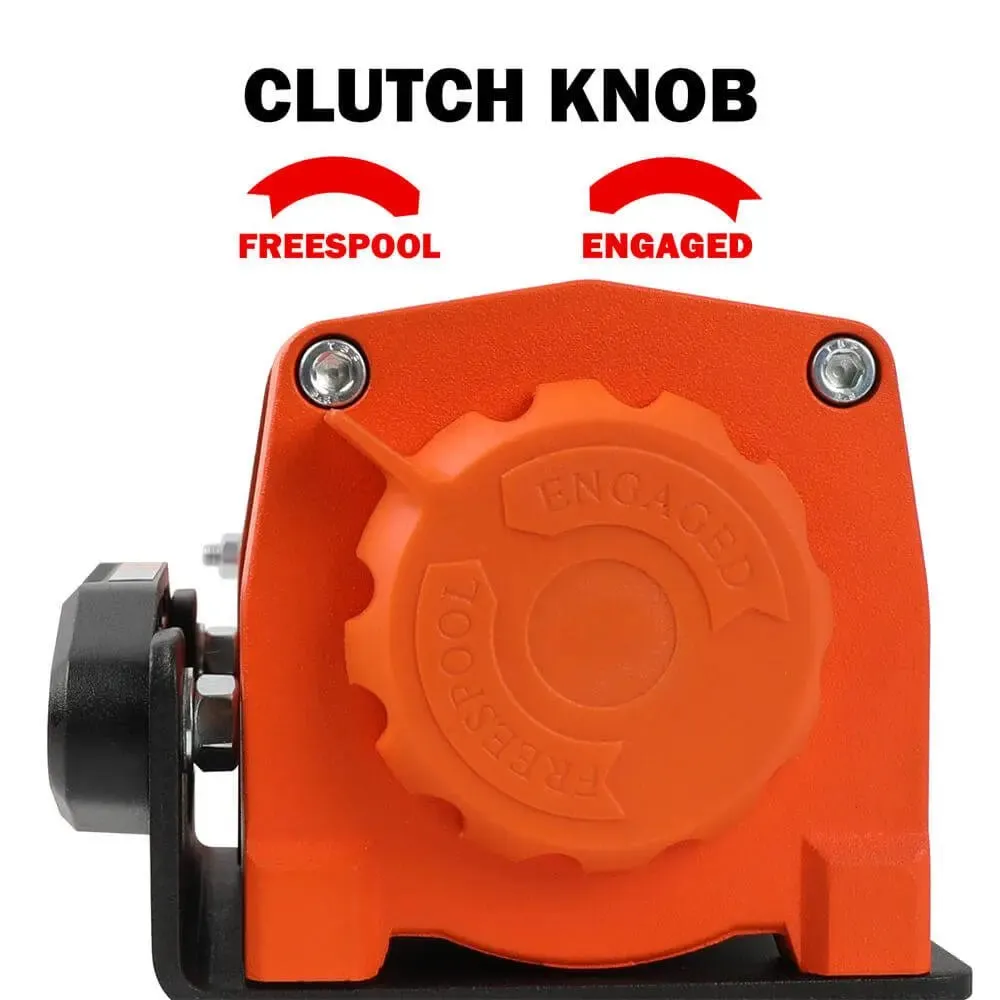

| Freespool | Cam Activated |
| Duty Cycle Rating | 5% (45 sec at Max Rated Load; 14 min, 15 sec Rest) |
| Line Speed (Max Line Pull) | 5.4 fpm (1.6 mpm) |
| Application | ATV/UTV/BOAT |

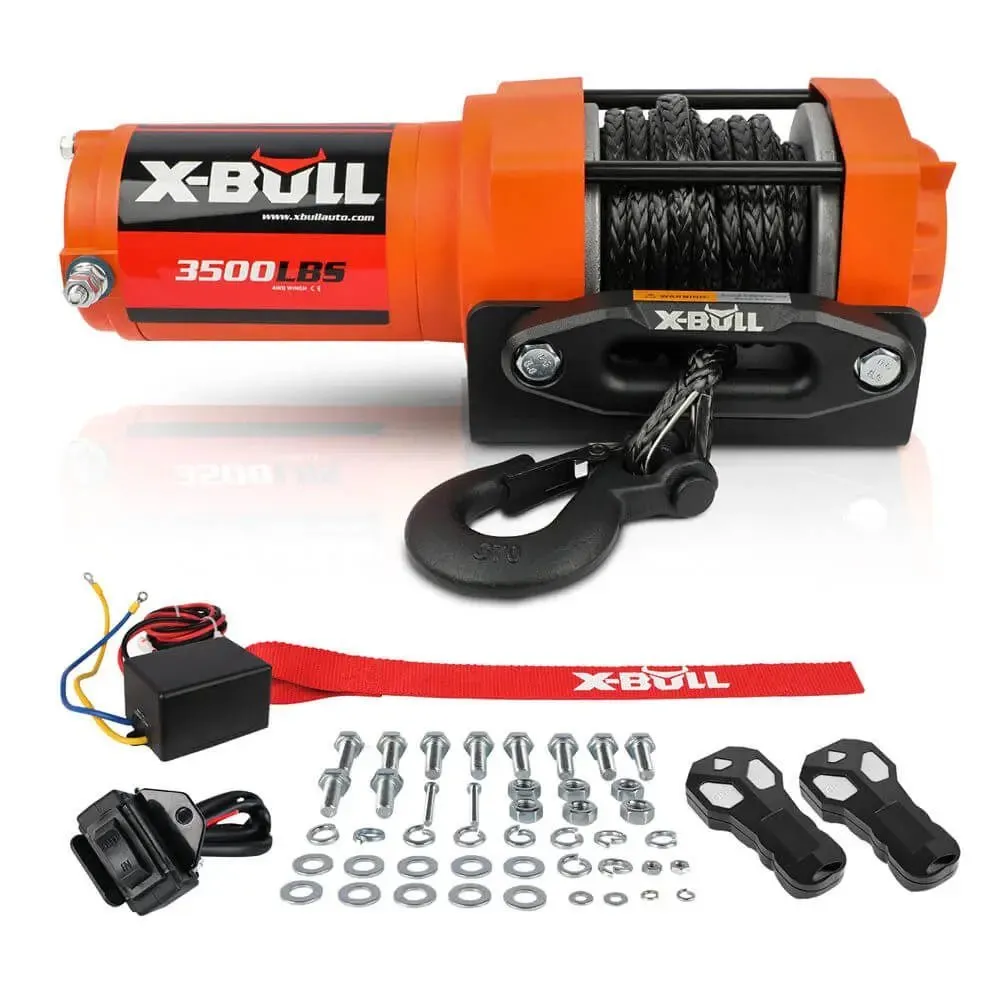

IN THE BOX
- 1 X 3500 LBS Winch
- 1 X Winch Mounting Plate
- 1 X Wire Remote Control
- 2 X Wireless Remote Control

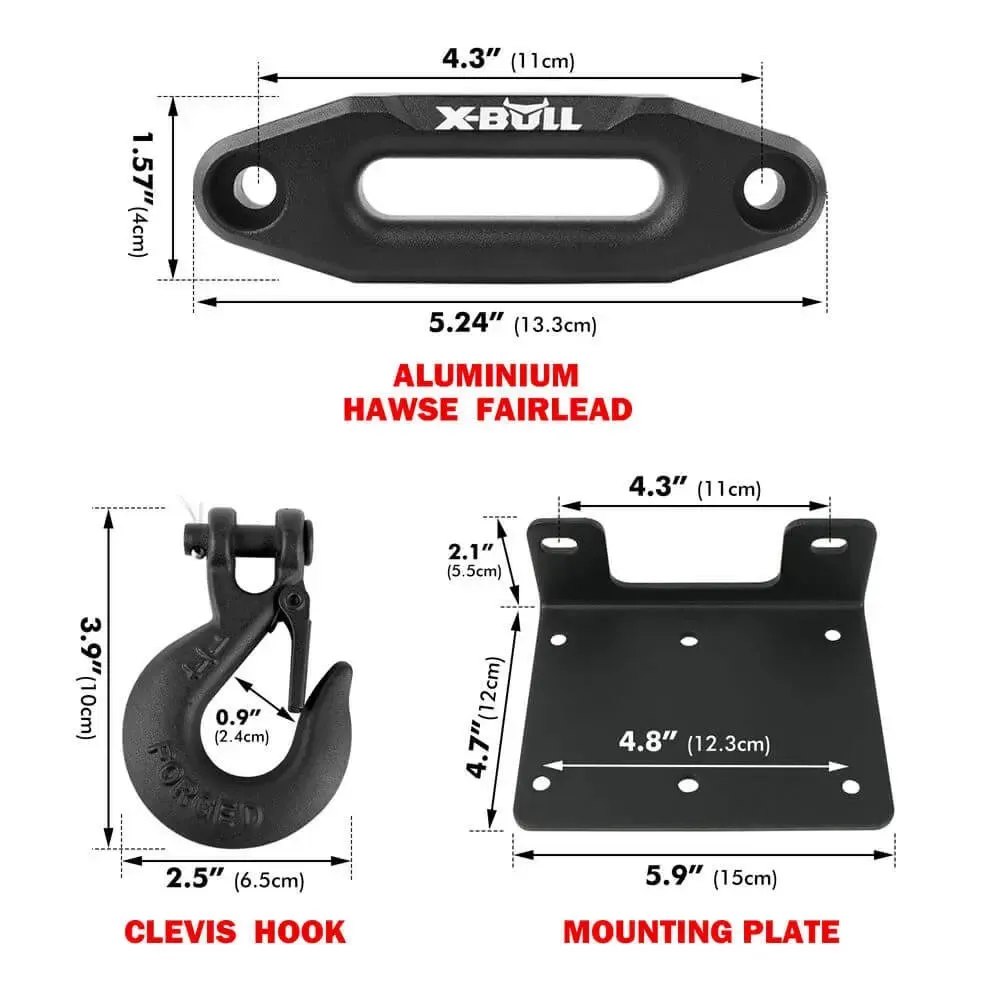

- 1 X Aluminium Hawse Fairlead
- 1 X Controller (Solenoid Receiver)
- 1 X Clevis Hook
- 1 X Set of Bolts
- 1 X User Manual
