The X-BULL 4500 LBS is one of our new X-BULL high-efficiency winches for all off-road and life-loving customers in 2021. Over the past few years, we document the product issues, needs and recommendations that our customers focus on, and have overcome and implemented it one by one.

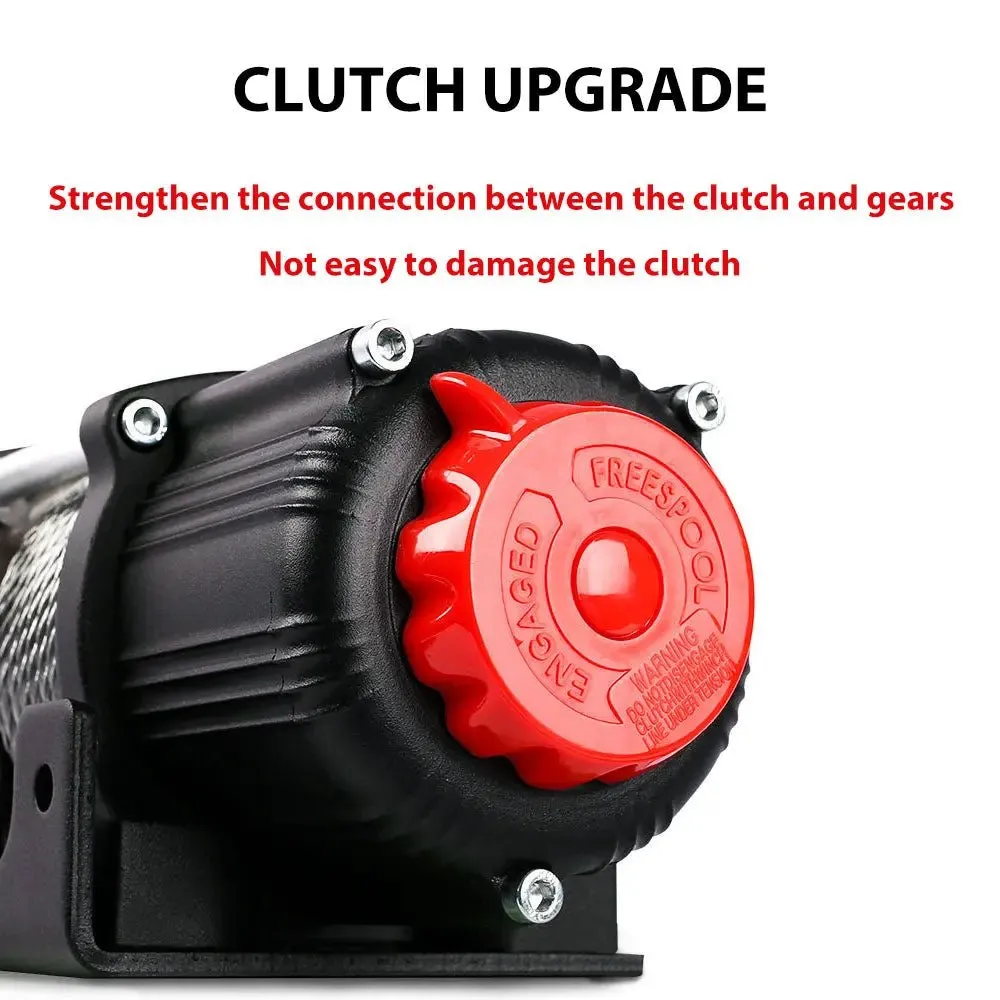

We consolidate gearboxes, update ergonomic clutches, and upgrade remote controls, which make our customers more comfortable with their use. X-BULL is to always strive to provide customers with quality items, excellent service, and constantly listen to the views and needs of customers, to become your life partner.

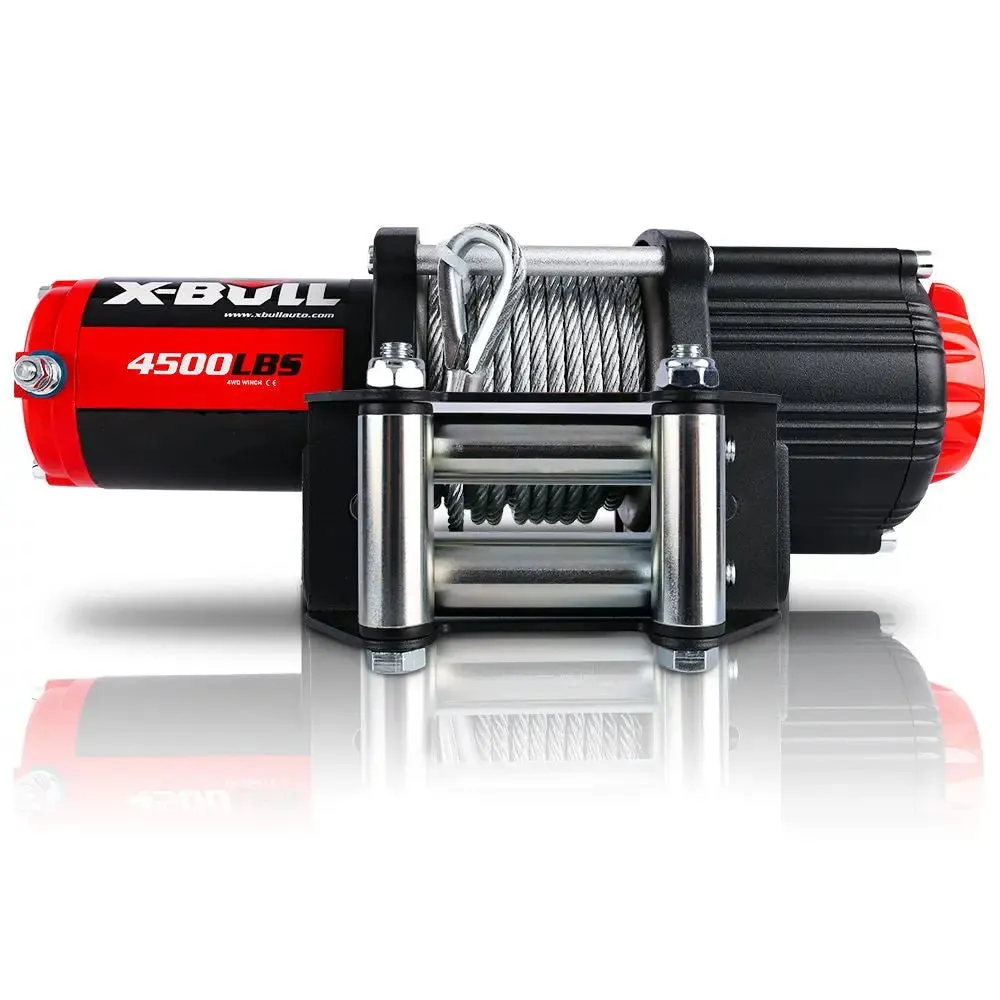

- X-BULL 4500LB WINCH: It has strong pulling force and is applicable to most ATVs and UTVs. This wireless winch package includes everything you need to start the winch, no matter what weather conditions you encounter, it will be easily solved.

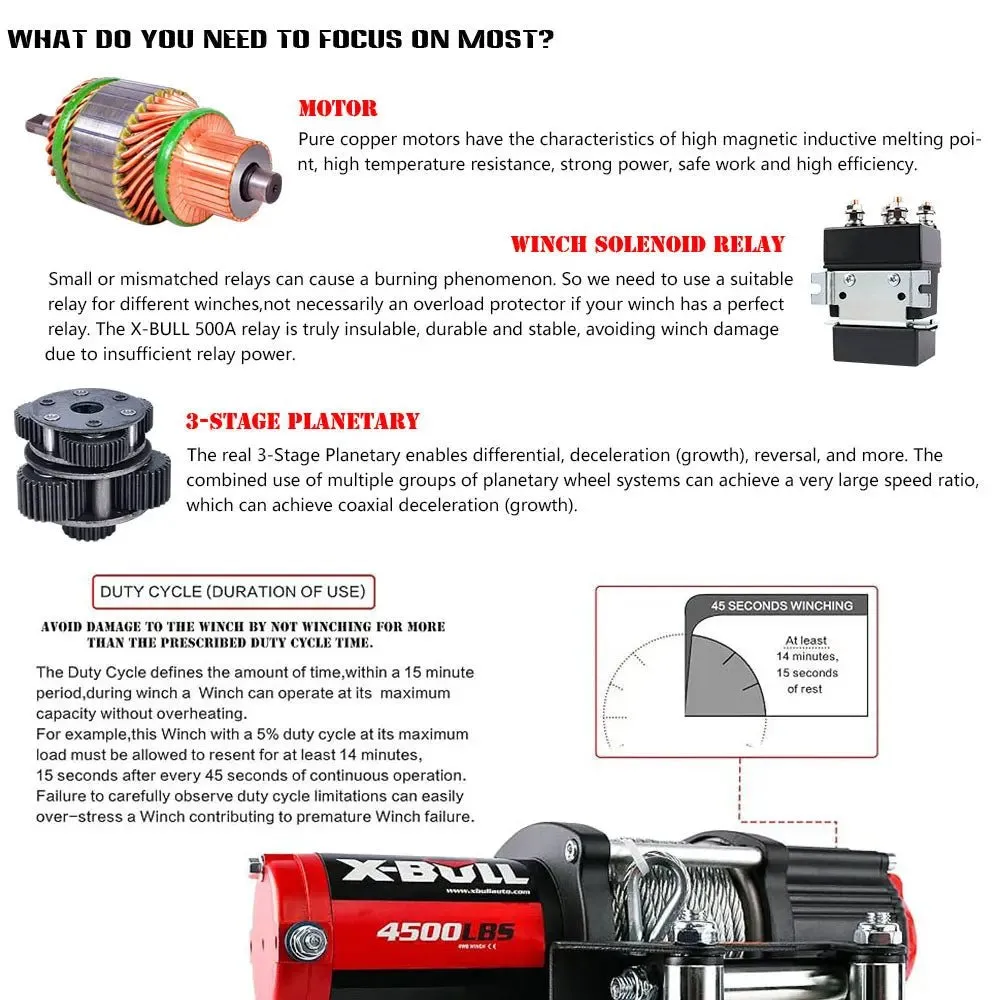

- PERMANENT MAGNET PURE COPPER MOTOR: Containing 1.5hp output permanent magnet DC 12V motor, very efficient and high strength. When the motor starts, the current will gradually increase, but it will not exceed the rated current. During this period, there will be no current impact, thus extending the service life of the motor. The motor works safely under reasonable load.

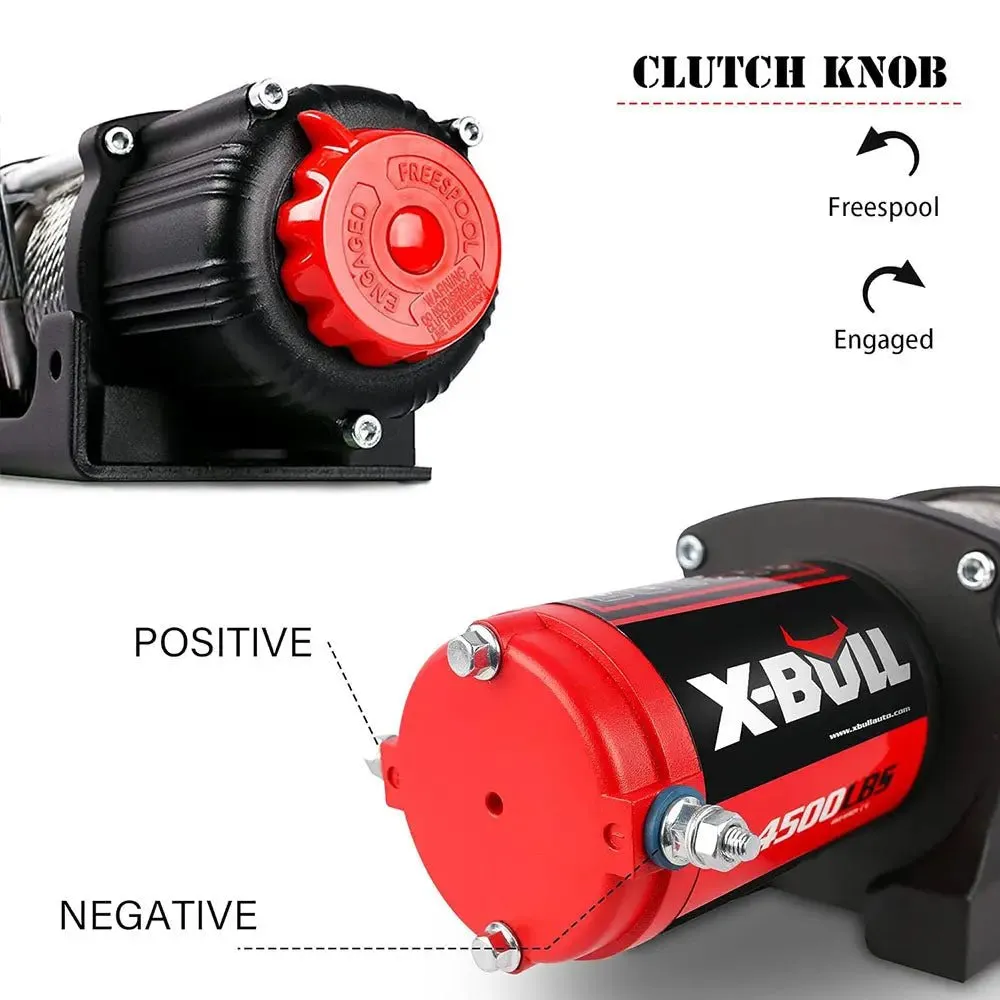

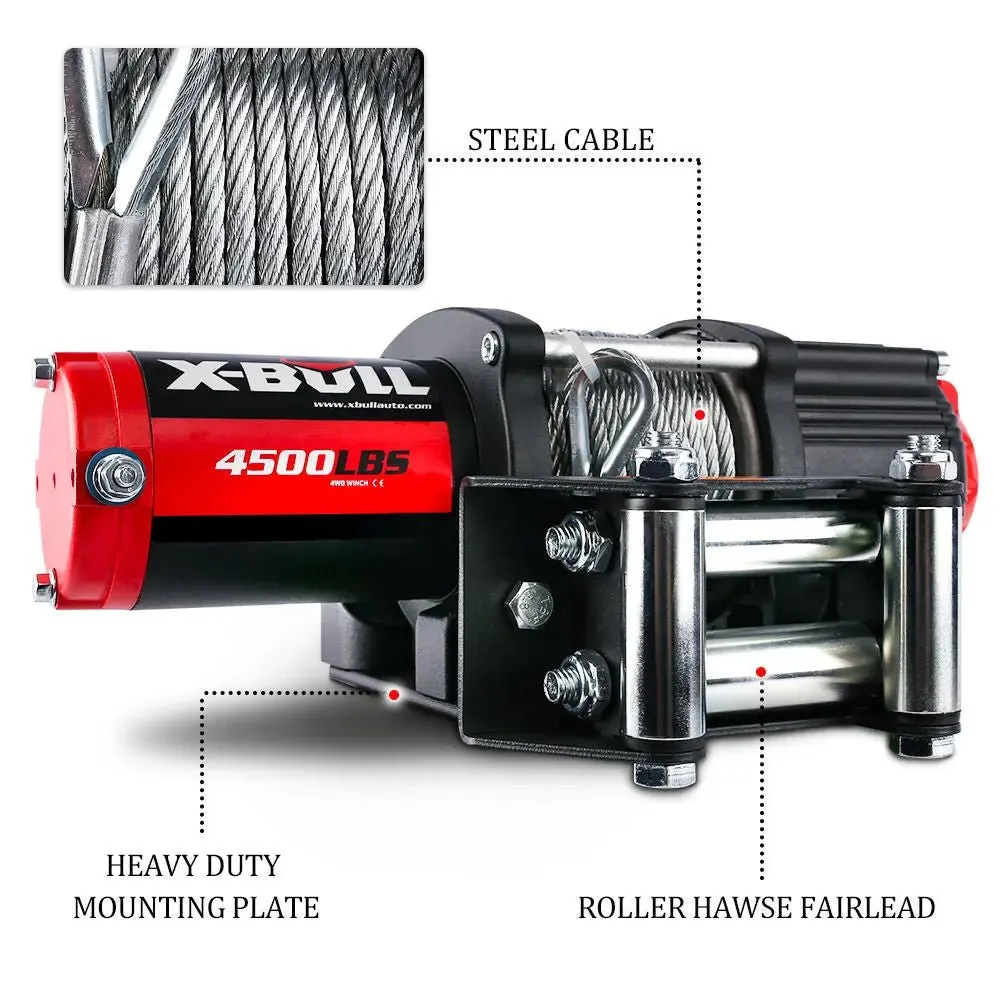

- STRONG STEEL WINCH: It has a heavy cast template to maintain stability, color coded terminals are easy to install, and the whole body is made of solid high-quality steel structure. The whole winch is well designed, handsome in shape and reliable in quality.
- GENERAL DESIGN: winch design is suitable for various complex conditions (such as soil, heavy rain, etc.). It has no effect even on high wear terrain such as rock, sand and soil.
SPECIFICATIONS
| Rated Line Pull | 4500 lbs (2041 kg) |
| Motor | 1.5 HP Permanent Magnet, Pure Copper |
| Gear Train | 3-Stage Planetary |
| Gear Reduction Ratio | 136:1 |
| Brake | Auto. Load Holding Mechanical |
| Control | Wireless Remote Control Wire Remote Control |
| Battery | 12V DC, Minimum 12Ah |
| Battery Cables | 6 Gauge, 6' (1.83 m) |
| Solenoid Cables | 6 Gauge, 3' (0.92 m) |
| Fairlead | Roller Hawse Fairlead |
| Cable Type | Steel Cable |

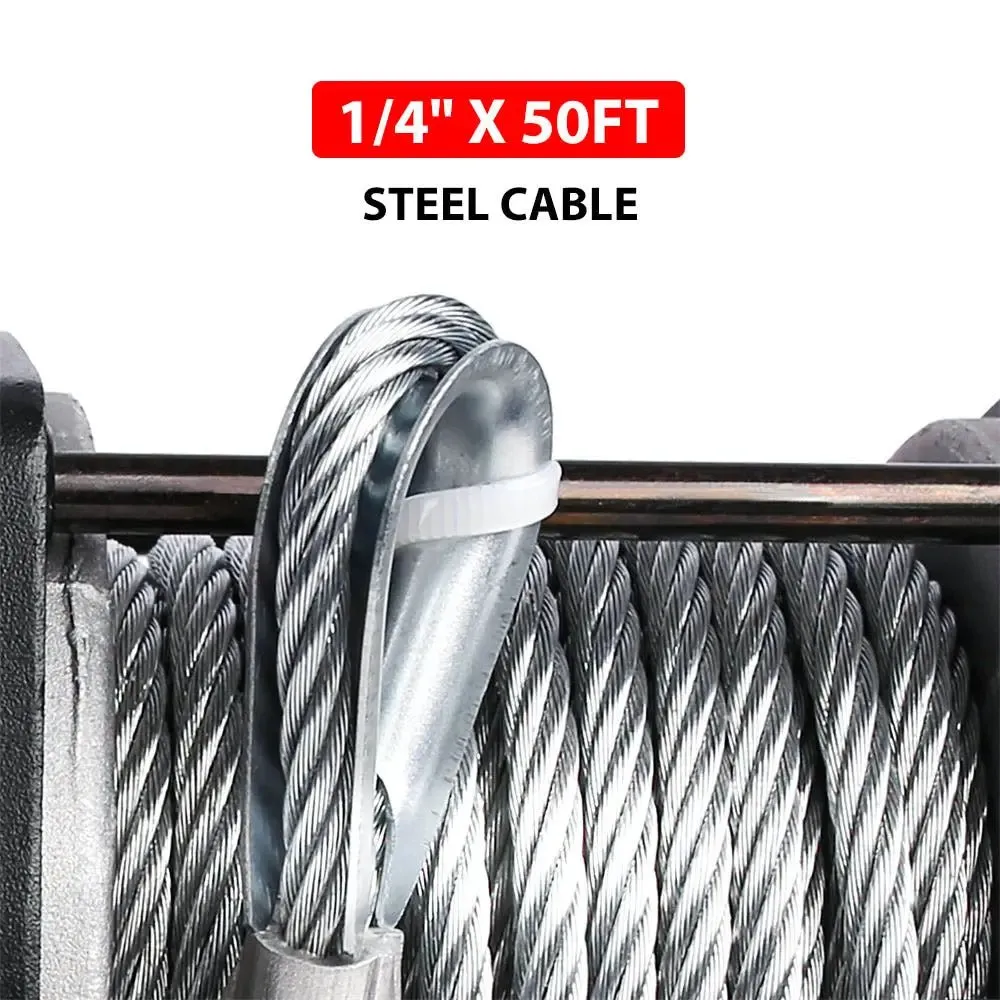

| Cable Size (D x L) | 1/4" X 50' (6.3 mm X 15.2 m) |

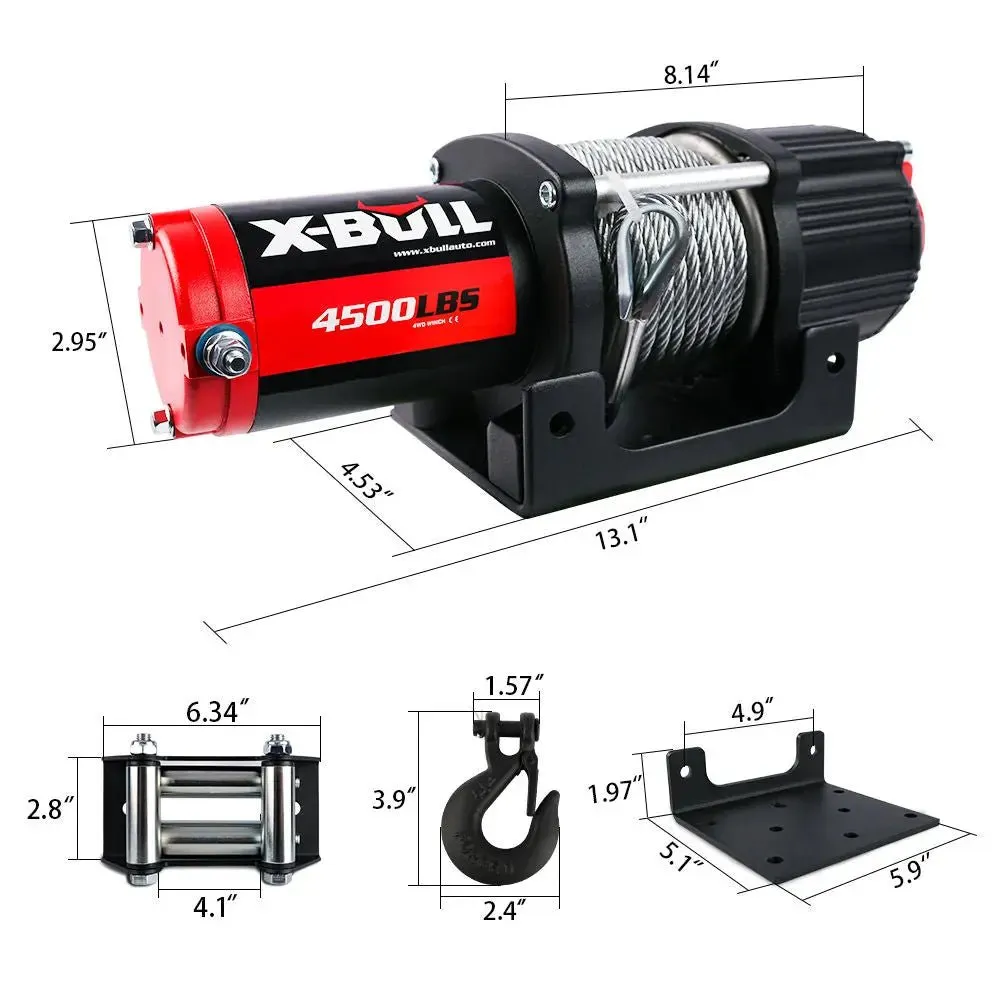

| Overall Dimensions (L x W x H) | 15.8" X 4.6" X 4.7" (400 mm X 116 mm X 119 mm) |
| Drum Size (D x L) | 2" X 4.7" (50 mm X 120 mm) |
| Bolt Pattern | 3" X 4.8" (76.2 mm X 122 mm) |
| Weight | 26.45 lbs (12.00 kg) |
| Waterproof Rating | IP66 |
| Line Speed (Max Line Pull) | 6.1 fpm (1.9 mpm) |
| Amp Draw (Max Line Pull) | 296 (@ 12V) |
| Application | Utility/Trailer/ATV/UTV/BOAT |

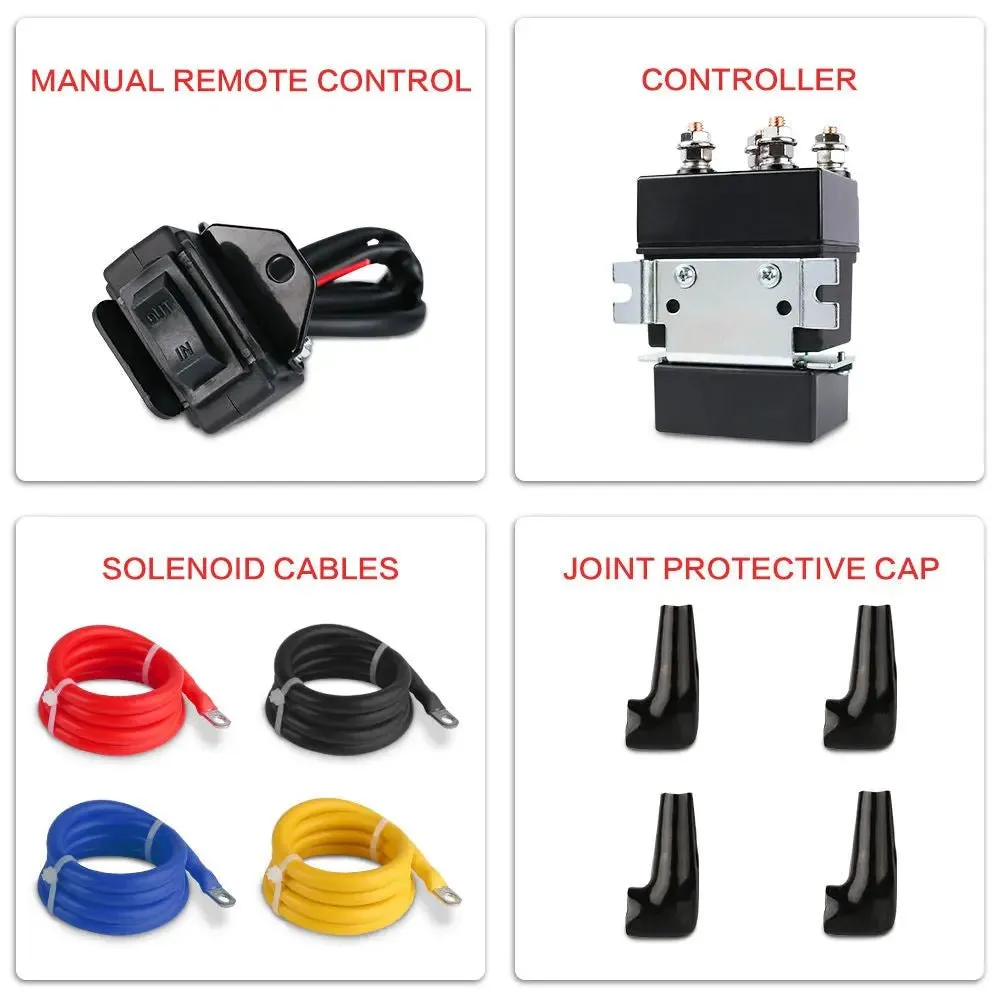

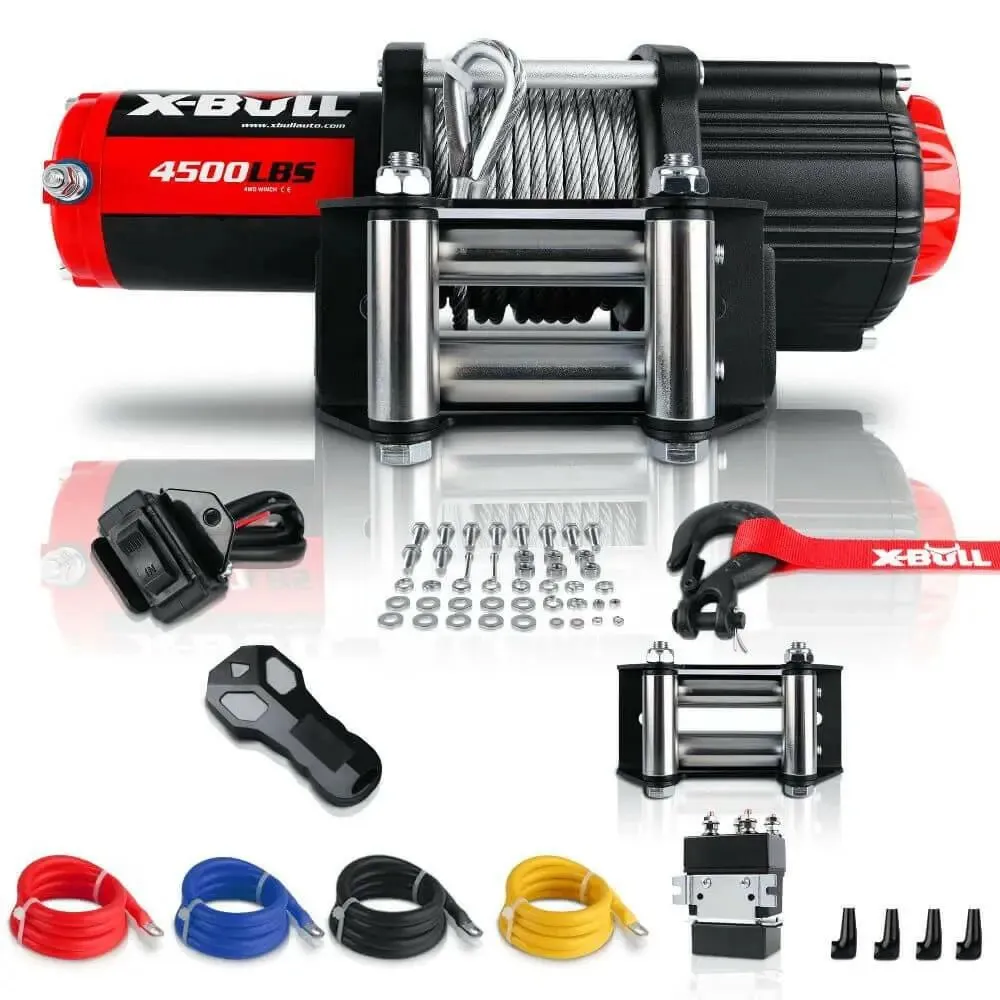

IN THE BOX

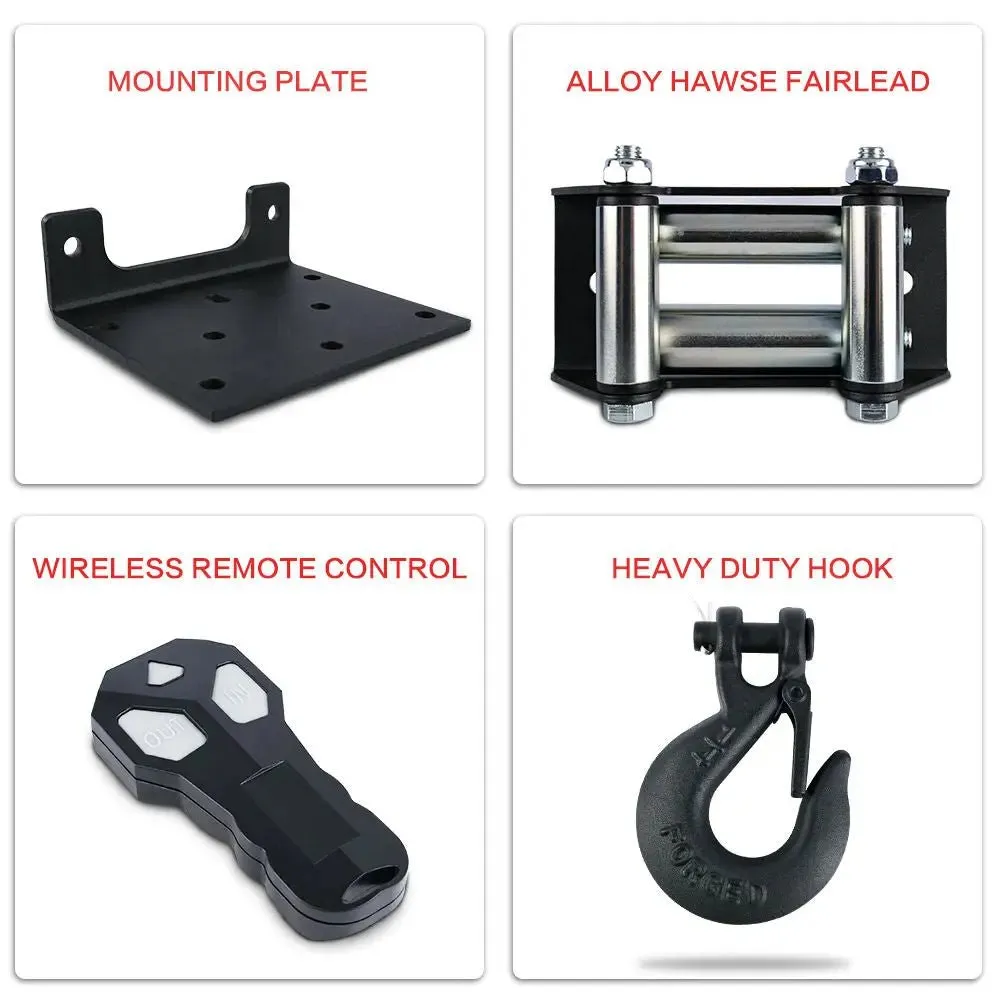

- 1 X 4500 LBS Winch
- 1 X Winch Mounting Plate
- 1 X Wire Remote Control

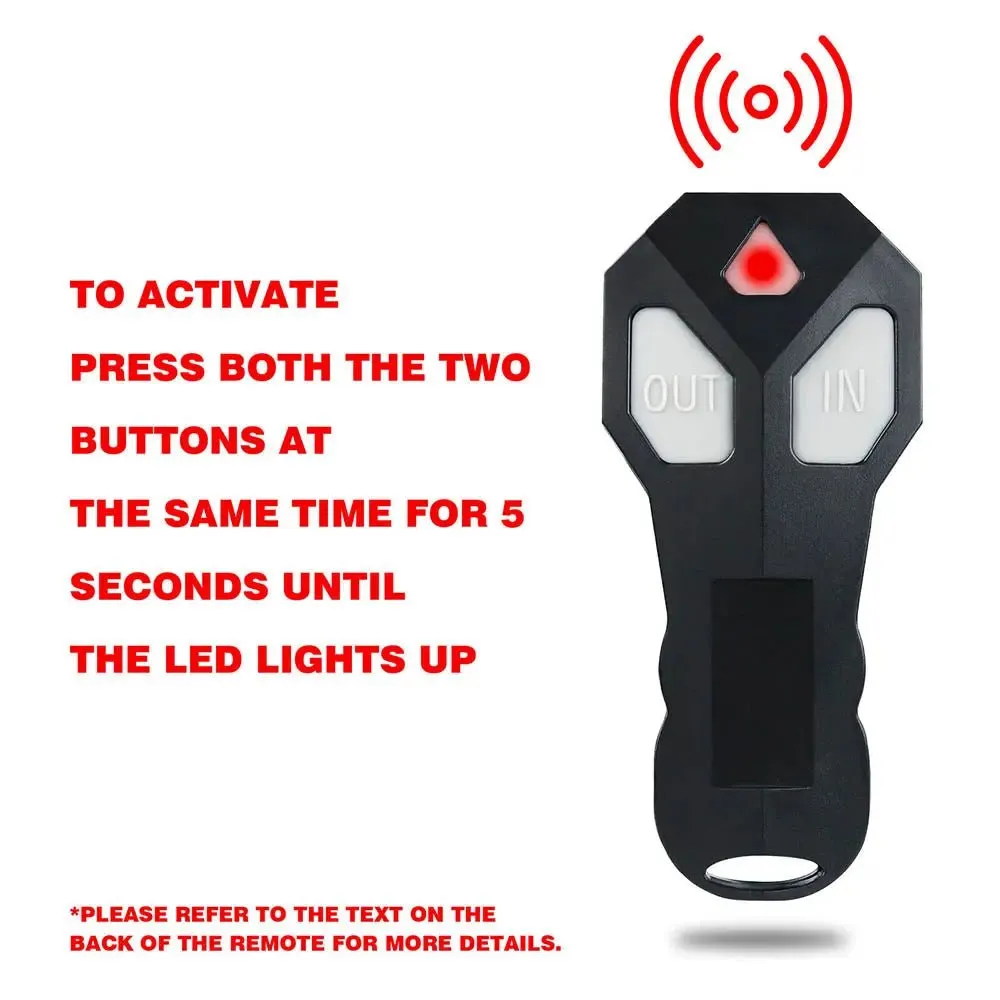

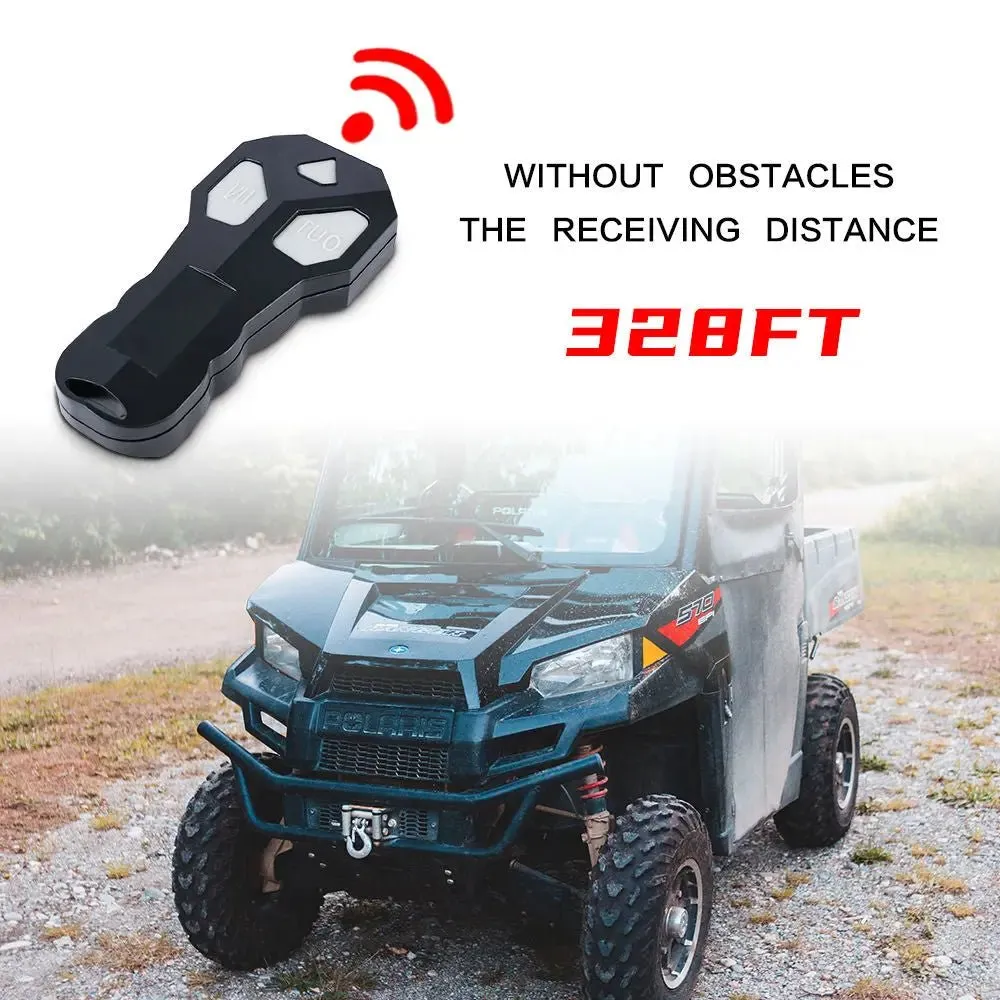

- 1 X Wireless Remote Control
- 1 X Roller Fairlead
- 1 X Controller (Solenoid Receiver)
- 4 X Solenoid Cables
- 4 X Joint Protective Caps
- 1 X Clevis Hook
- 1 X Set of Bolts
- 1 X User Manual
