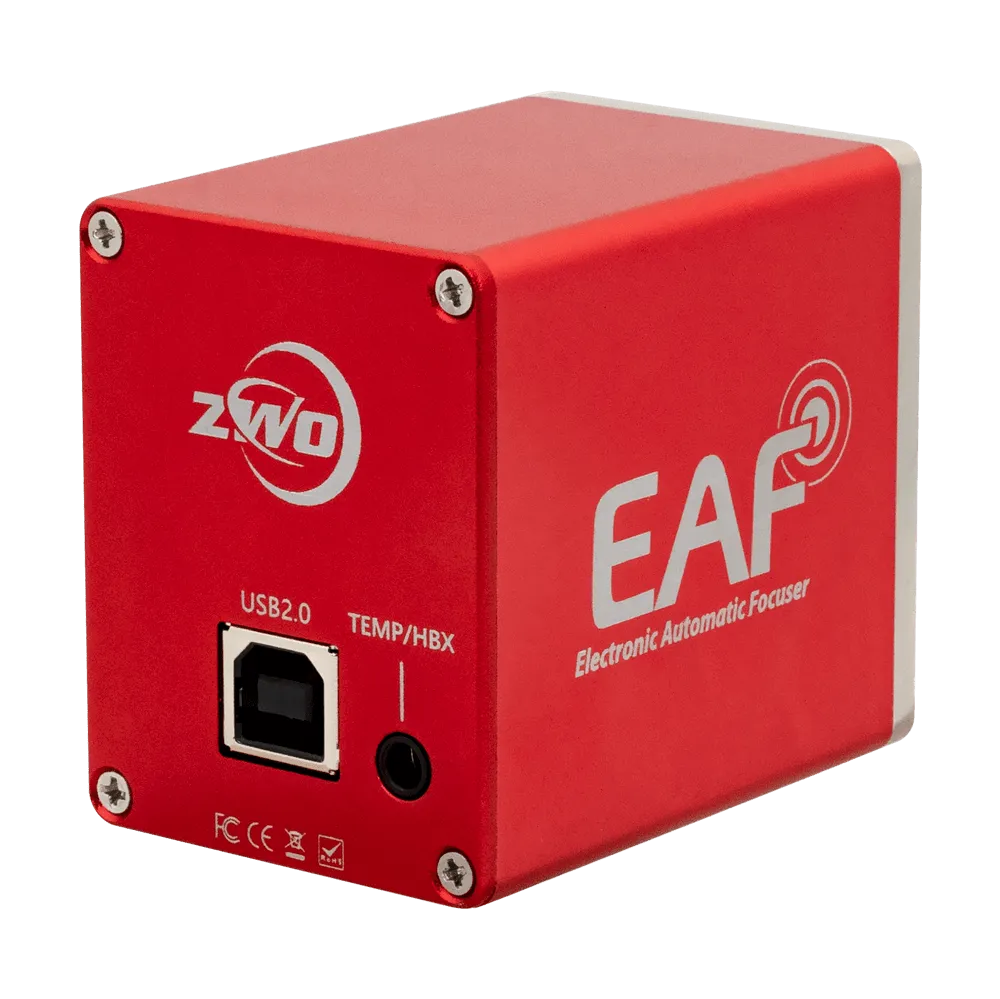

Introducing 5V EAF, this electronic focuser, like its previous version, enables precise, dynamic focus control for planetary and deep-sky imaging, while only connected with 5V USB.
Features:
- Highly integrated design
- Support ASCOM platform and various ASCOM-compatible third-party software
- Support INDI
- Support original software such as ASIAIR and ASIStudio
- Support automatic focusing for DSO imaging
- Support handle controller and manual focusing
- Support temperature sensor
- USB HID device and drive-free
- Stable and durable

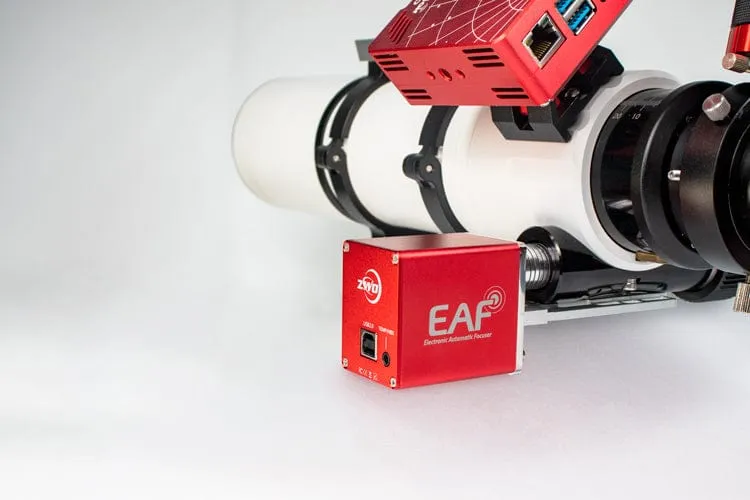

Compared to its old version, the main change of 5V EAF is to remove the 12V power supply port. Now you can directly connect it to your camera, laptop or ASIAIR PRO via the USB 2.0 port & cable for both data transmission and power supply. This would not only make the cable management much easier, also effectively reduce the supply pressure.

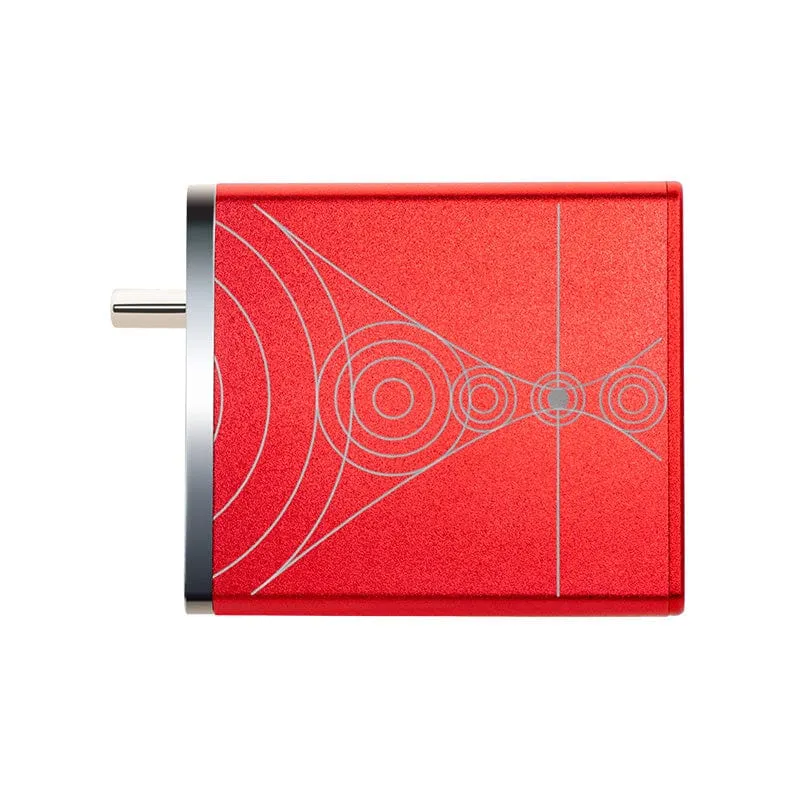

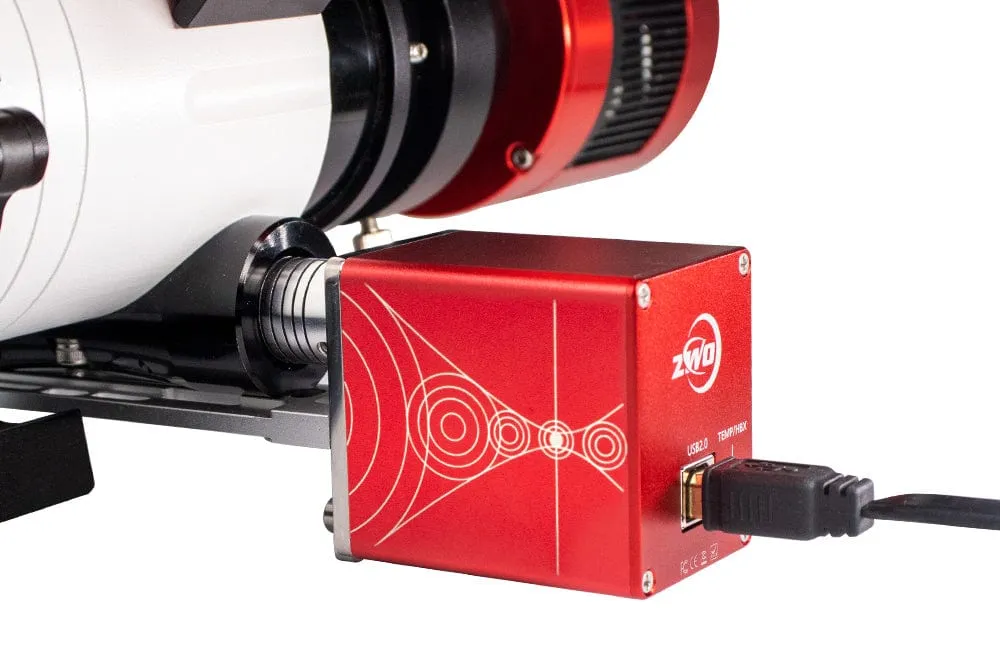

The innovative decorative pattern on the EAF is inspired by the changes of Airy disk during focusing and the focusing curve, which makes it clear at a glance how this focuser works.
There are two variants of the 5V EAF:

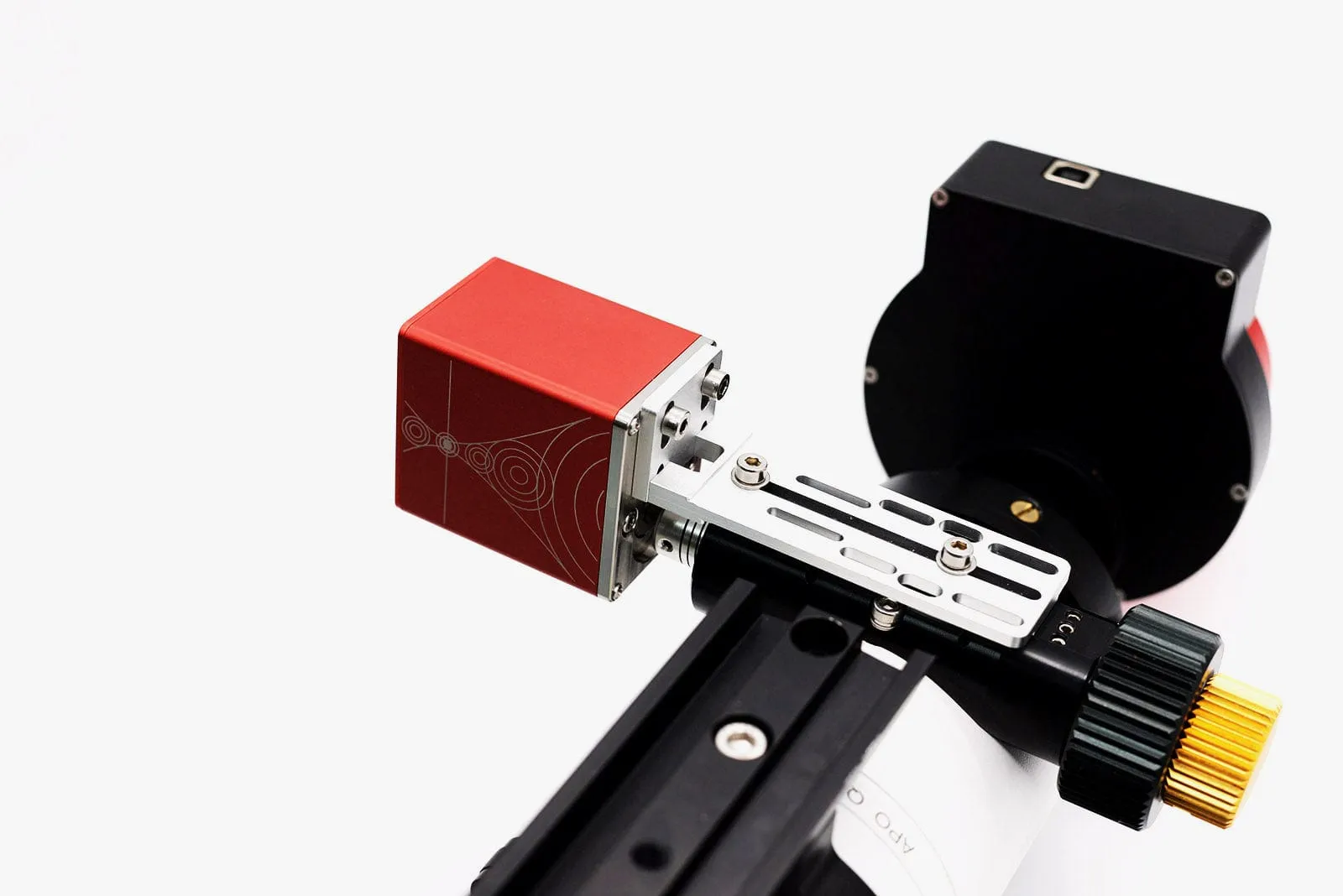

Standard Version: EAF body, flexible coupling, motor bracket, USB2.0 cable.

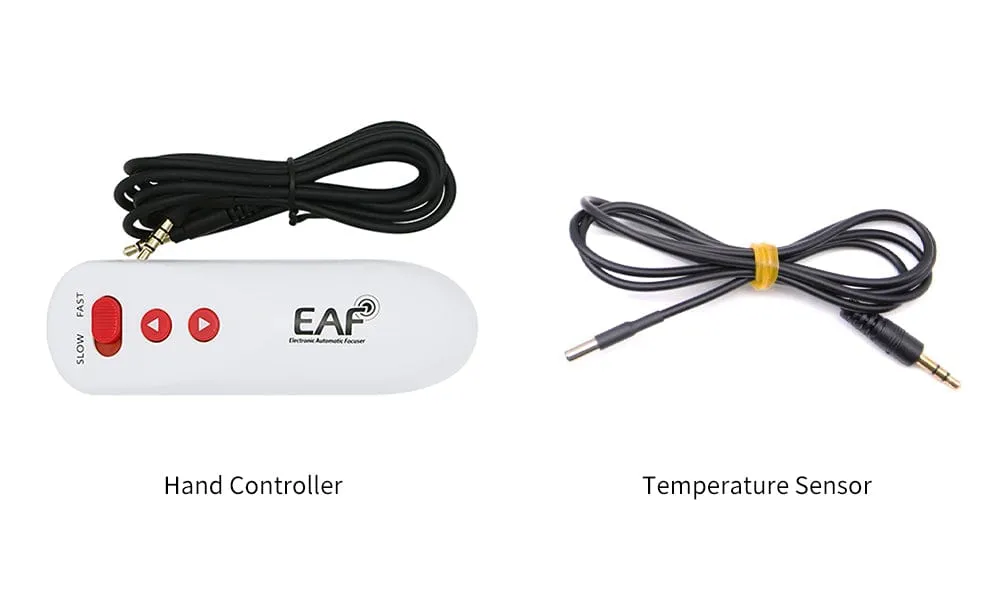

Advanced Version: EAF body, flexible coupling, motor bracket, USB2.0 cable, hand controller, temperature sensor.
You could purchase the standard version first, and then buy other accessories to upgrade.
The casing of the hand controller uses environment-friendly ABS material. It has a 3.5mm female socket. You will have a very comfort grip when you touch its ergonomic design!
The hand controller provides an easy method of focusing the telescope, featuring IN and OUT buttons, a 2-line display, slow and fast speed rate control.
A "must-have" option for EAF users!
Support list:
SkyWatcher Astrophotography Reflectors, SkyWatcher Black Diamond, SkyWatcher Dobsonians, SkyWatcher Maksutov-Newtonians.
SharpStar telescopes,
SkyRover telescopes,
TS Optics,
Astro Tech,
Feather Touch,
Please be aware that not all modules from the brands above are supported. You can read this instruction for the full supported list and the connection methods:
More focuser will be supported in the further. Please stay tuned.
Parameters:
Size: 59mm x 52mm x 41mm
Moter: Step moter, 35mm diameter, 7.5° step angle
Reduction ratio: 120
Power/Data port: USB2.0 port, Type-B
Weight: 277g
Capacity: 5kg

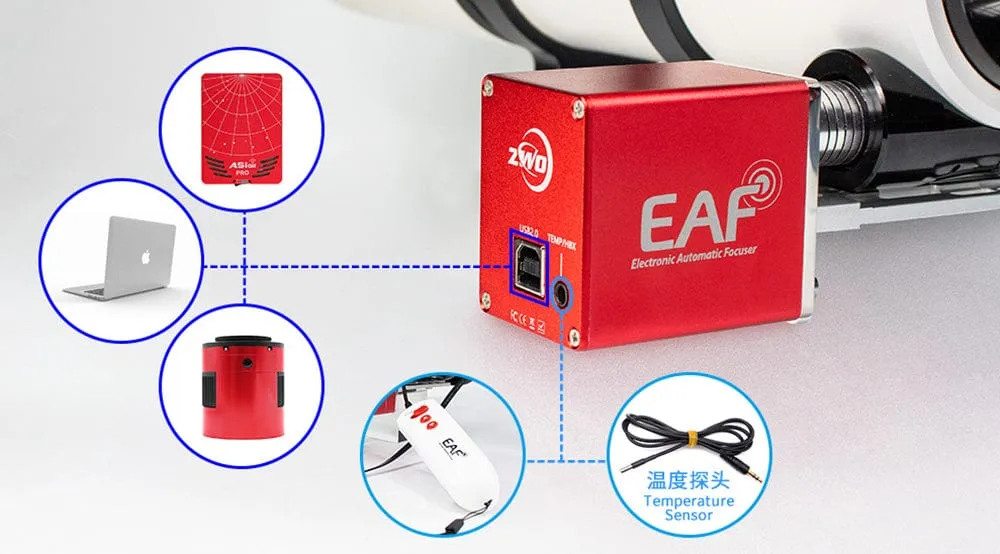

Connecting diagram

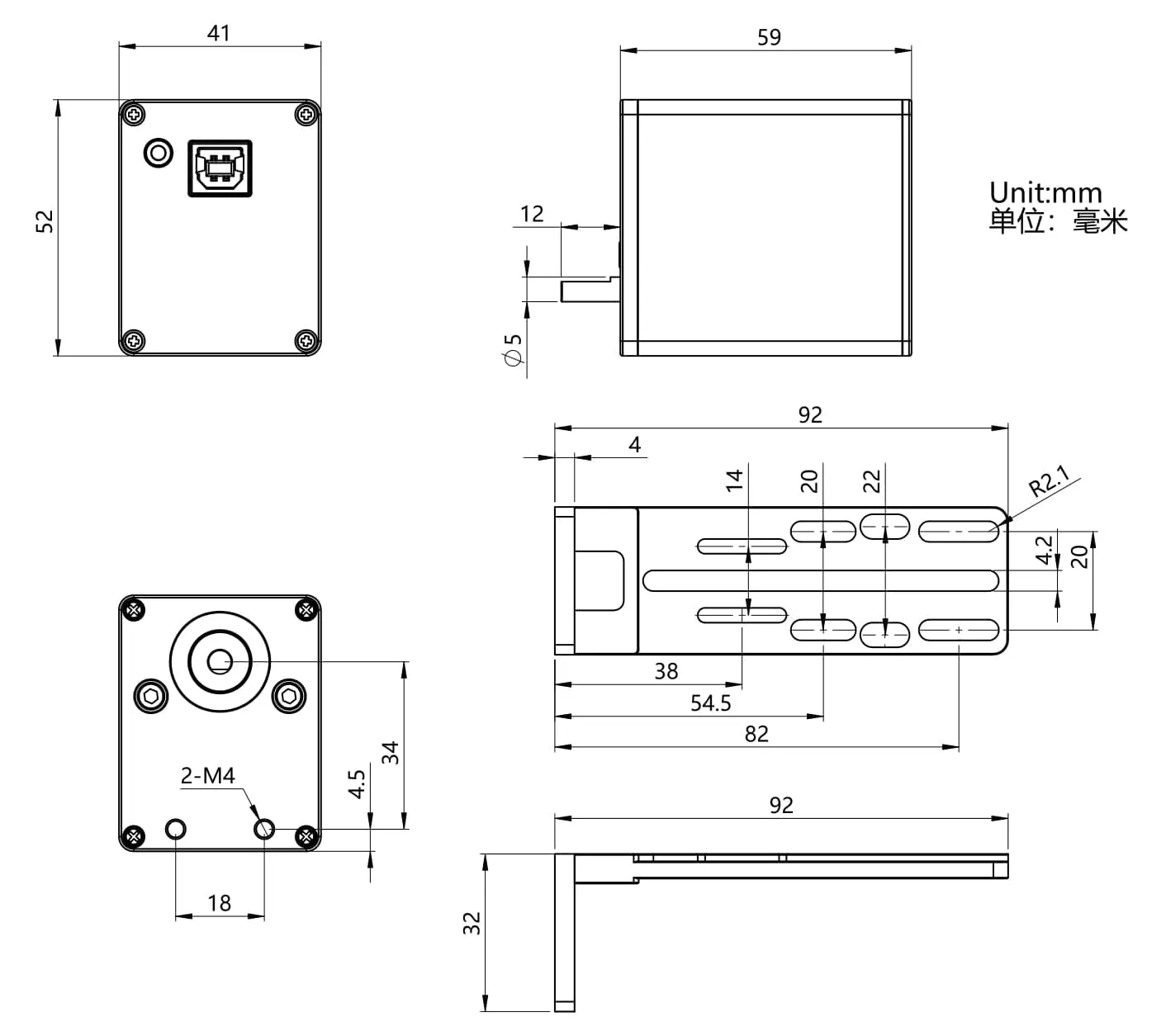

Mechanical diagram

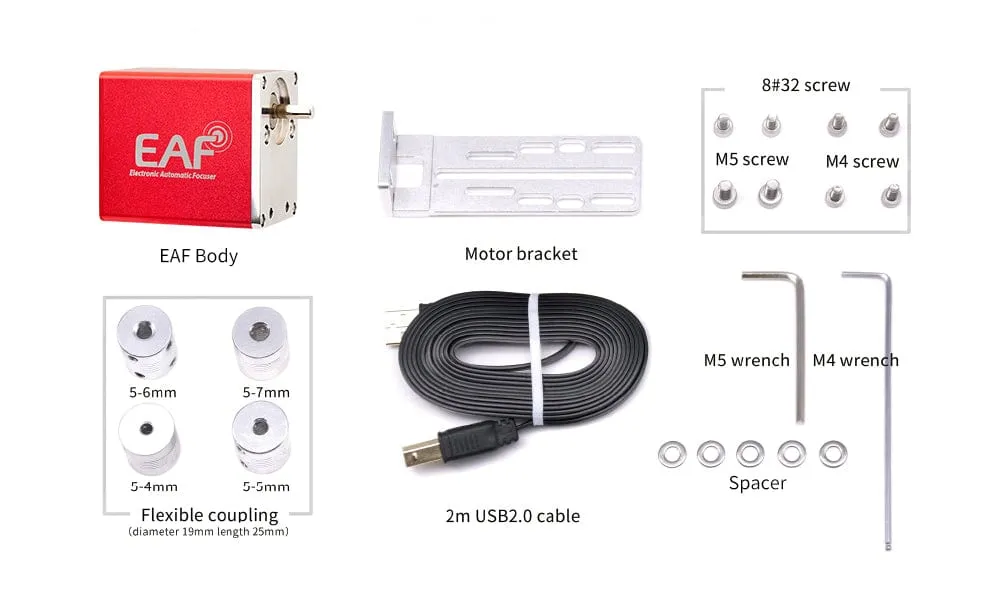

What's in the box？
ZWO EAF bracket for Takahashi Scope
(this part is defined as optional accessories for ZWO EAF)
Support List:
Takahashi FSQ85
Takahashi FSQ106 (except for the first generation)
Takahashi TOA-130NFB
Mechanical diagram：
What's in the box?
ZWO EAF Bracket for Celestron C8/C9.25/C11/C14
(this part is defined as optional accessories for ZWO EAF)
This bracket is designed to work with C8, C9, C11 and C14 the Celestron SCT scopes. You can directly connect it to the scopes without using the feather touch focusers.
It is CNC milled from an aircraft graded aluminum block. Quality reliable.
The detailed supported list:
Mechanical Diagram：
What's in the box?
1. For Celestron C8 and C9.25
Flexible coupling x1
Motor bracket x1
M4-8mm x2
M3-14mm x3
2. For Celestron C11 and C14
Flexible coupling x1
Motor bracket x1
M4-8mm x2
M3-35mm x3
M4-35mm x3
